Product Description
Dcd 00604-050 Innerduct Pulling Eye 1/2 Inch Duct Lug Style
Dcd 00604-050
Innerduct Pulling Eye 1/2 Inch Duct Lug Style
Part # 00604-050
Description Lug Style Innerduct Pulling Eye
Nominal Duct Size 1/2 Inch
Minimum Duct Inside Diameter 0.47 Inch
Maximum Duct Inside Diameter 0.65 Inch

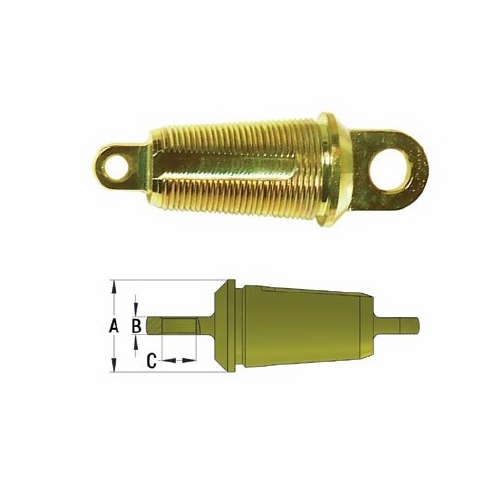

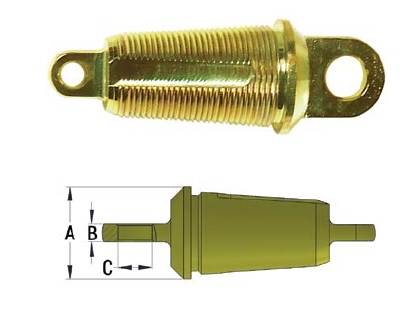

A 7/8 Inch
B 5/16 Inch
C 7/16 Inch
Weight 0.23 Lb
Lug Style Pulling Eye
The Lug Style Is Recommended When Attaching Directly To A Line Swivel (00505 Series)Or Other Clevis Type Connector.
Innerduct Pulling Eyes
These Products Are Designed To Install Polyethylene Ducting Using A Screw-In Tapered Thread To Grip The Inside Diameter Of The Duct. The Pulling Eyes Are Typically Used To Install Innerduct Inside
A Larger Duct. However, The 00604 And 00605 Series May Also Be Used For Directional Drilling Applications And Because There Are No Moving Parts, They Are Reliable And Maintenance Free.
All Of These Pulling Eyes Are Designed With Cutting Edges To Actually Cut A Thread In The Bore Of The Ducting As It Is Being Screwed In, Much The Same Way As Using A Tap To Cut A Thread In Steel. This Helps To Ensure A Reliable Grip. Installation Typically Requires Only Seven Or Eight Full Threads Of Contact To Give A Grip Stronger Than The Ducting Itself.
The Pulling Eyes Are Installed Quickly And Easily And Require No Special Tooling. They Are Manufactured Out Of Steel And Plated For Durability And Corrosion Resistance.Read More
