DCD 00570-202 Dub B foot away Swivel 5,000lb SWL
Available*
Item # 30509078
Model # 00570-202
$453.47
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Swivels
Tools
Line Construction- Placing
Swivels- Pulling- Rodding
DCD Design And Manufacturing Ltd
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
DCD 00570-202 Dub B foot away Swivel 5,000lb SWL
DCD 00570-202 Dub B foot away Swivel 5,000lb SWL

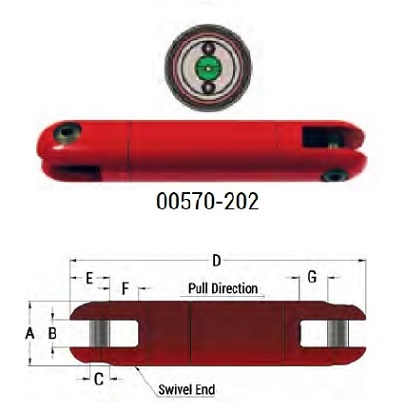

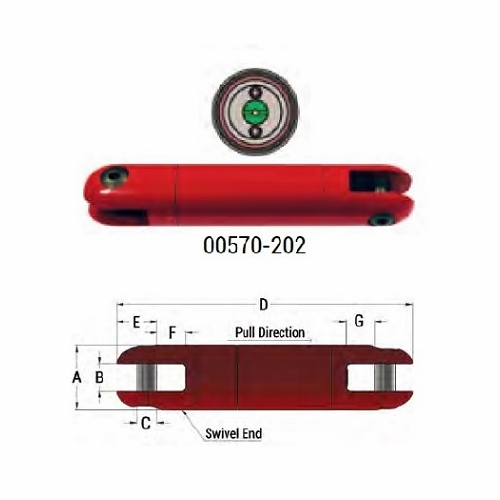

Part # 00570-202 Description HDD Breakaway Swivel Pin Capacity 1 pin A 1-1/4 inch (32 mm) B 1/2 inch (13 mm) C 13/32 inch (10 mm) D 5-3/4 inch (146 mm) E 3/4 inch (19 mm) F 1/2 inch (13 mm) G 9/16 inch (14 mm) Net Weight 1.1 lb (0.5 kg) Clevis Pin Kit 00020-HEX
The HDD Breakaway Swivel is similar to our Heavy Duty Breakaway Connector (00560 series), but with a swivel included. Saving you space in your pullback assembly, the HDD Breakaway Swivel is only 1.5 inch longer than the 00503-208 Dub-Lite, meaning it's 5 inch shorter than the alternative of using the DUB-Lite and a Breakaway Connector together. It will accept the same range of 00565 and 00566 breakaway pins that we offer, which gives the HDD Breakaway Swivel a break load range from 750 lb to 12,500 lb.
DCD 00570-202 Dub B foot away Swivel 5,000lb SWL
Part # 00570-202 Description HDD Breakaway Swivel Pin Capacity 1 pin A 1-1/4 inch (32 mm) B 1/2 inch (13 mm) C 13/32 inch (10 mm) D 5-3/4 inch (146 mm) E 3/4 inch (19 mm) F 1/2 inch (13 mm) G 9/16 inch (14 mm) Net Weight 1.1 lb (0.5 kg) Clevis Pin Kit 00020-HEX
The HDD Breakaway Swivel is similar to our Heavy Duty Breakaway Connector (00560 series), but with a swivel included. Saving you space in your pullback assembly, the HDD Breakaway Swivel is only 1.5 inch longer than the 00503-208 Dub-Lite, meaning it's 5 inch shorter than the alternative of using the DUB-Lite and a Breakaway Connector together. It will accept the same range of 00565 and 00566 breakaway pins that we offer, which gives the HDD Breakaway Swivel a break load range from 750 lb to 12,500 lb.
