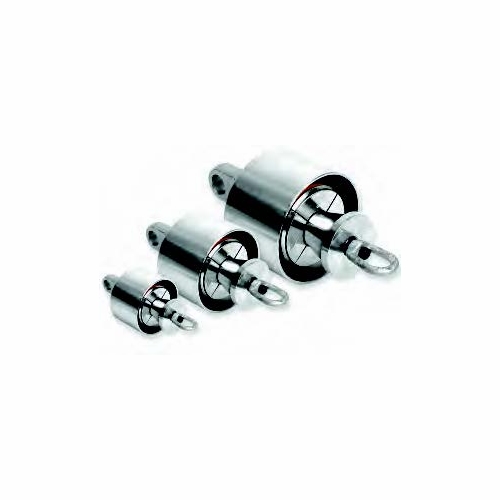

Gmp 70411 Pulling Eye 3" Exp Jaws New
Available*
Item # 29898530
Model # 70411
$464.74
![Peac Financing](https://sep.turbifycdn.com/ty/cdn/phonetx/ptx-peac-financing.png)
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
PULL EYES
Tools
Line Construction- Placing
Eyes- Cable Pulling
GMP GENERAL MACHINE PRODUCTS
![CA Prop 65 Warning](https://sep.turbifycdn.com/ty/cdn/phonetx/exclamation.png?t=1736992064&)
Product Description

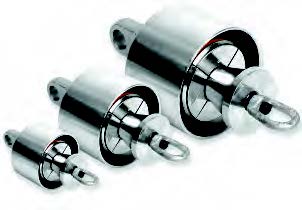

General Machine Products 70411 Pulling Eye 3" Exp Jaws Line Of Expanding Jaw Pulling Eyes Are Designed For The Installation Of 1-1/4� To 14� Diameter Polyethylene Pipe In Wall Sizes Ranging From Sdr 9 Thru Sdr 21 And Sch 40.
The Sdr Designation Determines The Pipe Minimum Wall Thickness. To Calculate A Particular Pipes Wall Thickness Simply Divide Its Nominal Outside Diameter By Its Sdr Value. For Example A 4� Pipe That Is Designated Sdr 11 Will Have A Minimum Wall Thickness Of .409� (4.5� / 11 = .409�).
The One-Piece Cone Design Incorporates A Full Sleeve, Which Completely Encloses The Jaws. During Set-Up And Operation This Sleeve Prevents The Polyethylene Pipe From Over Expanding And Rupturing.
Key Components Are Hardened Alloy Steel To Ensure That The Pulling Eye Will Not Fail Before The Pipe.
A Swiveling Eye Nut Provides For The Attachment Of A Pulling Line.
An Alternate Method For Pipe Diameters Smaller Than 2� Use General Machine Products �S Innerduct Pulling Eyes With Or Without Swivels.
10�, 12�, And 14� Sizes Are Available On Special Order.
Pulling Eye P/N Nom. Pipe Size Sdr Size Range Weight
70407 1-1/4 9 Thru 21 1.6 Lbs 70408 1-1/2 9 Thru 21 1.8 Lbs 70409 2� 9 Thru 21 2.8 Lbs
70410 2-1/2� 11 Thru 21 3.7 Bs 70411 3� 11 Thru 21 6.6 Lbs 70412 4� 11 Thru 21 12.3 Lbs 70413 5� 9 Thru Sch 40 22.7Lbs 70414 6� 11 Thru Sch 40 34.2 Lbs 70415 8� 9 Thru 21 67.3 Lbs 70416 10� 9 Thru 13.5 122.7 Lbs 70417 10� 15.5 Thru 21 143.6 Lbs 70418 12� 9 Thru 13.5 182.5 Lbs 70419 12� 15.5 Thru 21 216.0 Lbs 70420 14� 9 Thru 11 217.0 Lbs 70421 14� 13.5 Thru 21 246.6 LbsRead More
