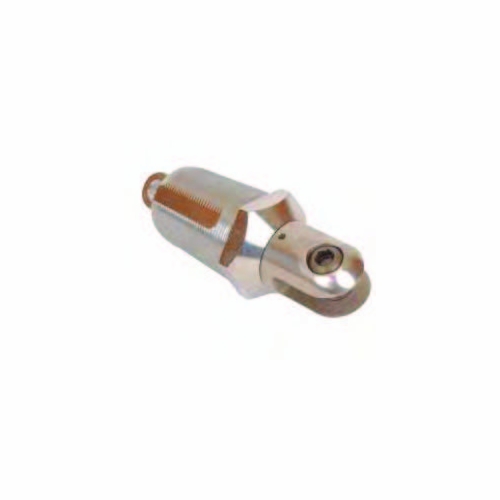

GMP 61510 INNERDUCT PULL EYE 1.00W/SWIVL
Available*
Item # 29898500
Model # 61510
$180.39
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Pull Eyes
Tools
Line Construction- Placing
Eyes- Cable Pulling
GMP General Machine Products
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
GENERAL MACHINE PRODUCTS 61510 INNERDUCT PULL EYE 1.00W/SWIVL NEW These rugged chrome-plated steel pulling eyes allow innerduct placement to become a faster, safer operation.
Easy insertion by rotating the pulling eye into the innerduct allows the threads to make the connection
A convenient hole in the threaded end of the pulling eye body is used to tie off the innerduct pulling line or tape keeping it from being lost during the pulling operation
Our Swiveling Innerduct Pulling Eyes eliminate the need to use a separate swivel between the winch line and innerduct
The hex portion of the Swiveling Innerduct Pulling Eye allows use of a wrench to make the final turns when inserting into innerduct
Innerduct Pulling Eyes P/N Nominal Duct Dia. Innerduct Inside Dia. Range
--------------------------------------------------------------------------------
60510 1 in. & 1-1/8 in. 1.00 - 1.18 in. (25.4 - 30.0 mm) 60512 1-1/4 in. & 1-3/8 in. 1.25 - 1.43 in. (31.8 - 36.3 mm) 60515 1-1/2 in. 1.50 - 1.68 in. (38.1 - 42.7 mm 60520 2 in. 2.00 - 2.18 in. (50.8 - 55.4 mm)
P/N Max Pulling Eye Dia. Overall Length
--------------------------------------------------------------------------------
60510 1.50 in. 5-1/8 in. (130.2 mm) 60512 1.75 in. 5-1/8 in. (130.2 mm) 60515 2.00 in. 5-3/4 in. (146.1 mm) 60520 2.50 in. 5-3/4 in. (146.1 mm)
Innerduct Pulling Eyes With Swivels P/N Nominal Duct Dia. Innerduct Inside Dia. Range
--------------------------------------------------------------------------------
61510 1 in. & 1-1/8 in. (25.4 & 28.6 mm) 1.00 - 1.18 in. (25.4 - 30.0 mm) 61512 1-1/4 in. & 1-3/8 in. (31.8 & 34.9 mm) 1.25 - 1.43 in. (31.8 - 36.3 mm) 61515 1-1/2 in. (38.1 mm) 1.50 - 1.68 in. (38.1 - 42.7 mm 61520 2 in. (50.8 mm) 2.00 - 2.18 in. (50.8 - 55.4 mm)
P/N Max Pulling Eye Dia. Overall Length
--------------------------------------------------------------------------------
61510 1.50 in. (38.1 mm) 5-9/16 in. (141.3 mm) 61512 1.75 in. (44.5 mm) 5-19/32 in. (142.1 mm) 61515 2.00 in. (50.8 mm) 6-9/32 in. (159.5 mm) 61520 2.50 in. (63.5 mm) 6-13/32 in. (162.1 mm)
Easy insertion by rotating the pulling eye into the innerduct allows the threads to make the connection
A convenient hole in the threaded end of the pulling eye body is used to tie off the innerduct pulling line or tape keeping it from being lost during the pulling operation
Our Swiveling Innerduct Pulling Eyes eliminate the need to use a separate swivel between the winch line and innerduct
The hex portion of the Swiveling Innerduct Pulling Eye allows use of a wrench to make the final turns when inserting into innerduct
Innerduct Pulling Eyes P/N Nominal Duct Dia. Innerduct Inside Dia. Range
--------------------------------------------------------------------------------
60510 1 in. & 1-1/8 in. 1.00 - 1.18 in. (25.4 - 30.0 mm) 60512 1-1/4 in. & 1-3/8 in. 1.25 - 1.43 in. (31.8 - 36.3 mm) 60515 1-1/2 in. 1.50 - 1.68 in. (38.1 - 42.7 mm 60520 2 in. 2.00 - 2.18 in. (50.8 - 55.4 mm)
P/N Max Pulling Eye Dia. Overall Length
--------------------------------------------------------------------------------
60510 1.50 in. 5-1/8 in. (130.2 mm) 60512 1.75 in. 5-1/8 in. (130.2 mm) 60515 2.00 in. 5-3/4 in. (146.1 mm) 60520 2.50 in. 5-3/4 in. (146.1 mm)
Innerduct Pulling Eyes With Swivels P/N Nominal Duct Dia. Innerduct Inside Dia. Range
--------------------------------------------------------------------------------
61510 1 in. & 1-1/8 in. (25.4 & 28.6 mm) 1.00 - 1.18 in. (25.4 - 30.0 mm) 61512 1-1/4 in. & 1-3/8 in. (31.8 & 34.9 mm) 1.25 - 1.43 in. (31.8 - 36.3 mm) 61515 1-1/2 in. (38.1 mm) 1.50 - 1.68 in. (38.1 - 42.7 mm 61520 2 in. (50.8 mm) 2.00 - 2.18 in. (50.8 - 55.4 mm)
P/N Max Pulling Eye Dia. Overall Length
--------------------------------------------------------------------------------
61510 1.50 in. (38.1 mm) 5-9/16 in. (141.3 mm) 61512 1.75 in. (44.5 mm) 5-19/32 in. (142.1 mm) 61515 2.00 in. (50.8 mm) 6-9/32 in. (159.5 mm) 61520 2.50 in. (63.5 mm) 6-13/32 in. (162.1 mm)
