Product Description
General Machine Products 82211 Low Pres Air Regulator W/Female Fitting Standard Unit New Works With Your Gas Cylinder To Control Outlet Pressure When You'Re Charging Cables During Pressurization.
It'S A Two Stage Regulator: The Top Stage Has A 0-3000 Psi High Pressure Gauge With Three Scales For Finding Gas Volumes (Scf) And Pressures In Both 224 And 24 Cu. Ft. Cylinders: The Bottom Stage Features A 0-50 Psi Low Pressure Gauge For Monitoring Outlet Pressure
Weights Approximately 6 Lbs. And Has Maximum Over-All Dimensions Of 7 X 6.5 X 6.5 Inch

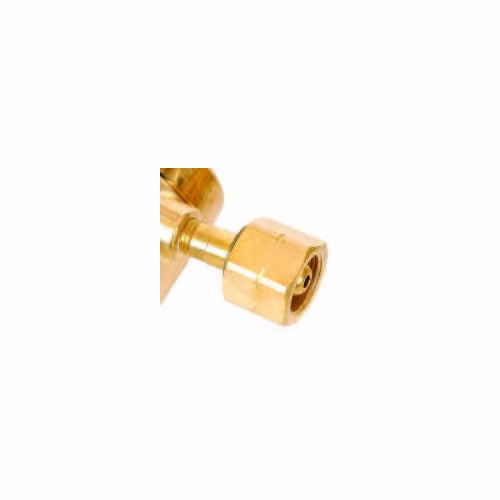

Inlet Fitting Is Cga 555 Left Hand Inlet (Female) P/N 82211
Also Available Is A Special Version With Cga 590 Right Hand Male Inlet Fitting P/N 82213
Ordering Information
P/N Description Weight
--------------------------------------------------------------------------------
82211 C Pressure Regulator With Cga 555 Left Hand Inlet (Female) 6 Lb 4 Oz.
(2.8 Kg)
82213 C Pressure Regulator With Cga 580 Right Hand Inlet (Male) 6 Lb 4 Oz.
(2.8 Kg)
82214 Optional Regulator Hard Hat 2 Lb 8 Oz.
(1.1 Kg)
70119 Optional Female/Male AdaptorRead More
