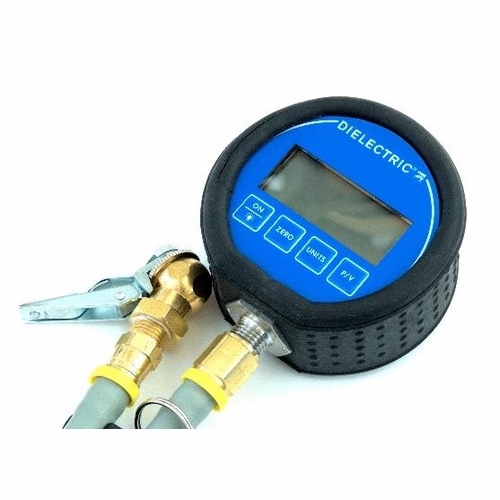

Dielectric Technologies F4330A Digital C Gauge (Mark Products C Pressure Guage) New
Available*
Item # 25530000
Model # F4330A
$1,208.25
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
AIR TEST
Test Equipment
Air Pressure
Testers-Monitors
MARK PRODUCTS
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

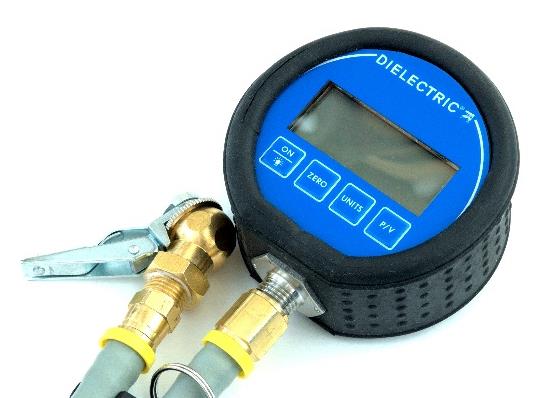

Dielectric Technologies F4330A Digital C Gauge New The Mark Products Model 4330 Digital "C" Gauge Has Proven To Be The Perfect Leak Locating Tool For Cable Pressurization Personnel. This Digital Pressure Gauge Features The Accuracy Required For Graphing Leaks, Plus Ease Of Use Combined With Lightweight Portability.
New Design Features Include A Single Push Button That Turns The Unit On And A New 'Auto-Zero' Circuit To Zero Out The Gauge, Thereby Assuring The Accuracy Of Readings. The Model 4330 Displays Readings Of 1/100Th Of A Psi With A Range From 0 To 20 Psi. (Versions Equipped For Metric Measurement Units Are Also Available.)
Resolution To 0.01 Psi Makes Leak Pinpointing More Accurate Large Digital Displays Reduces Reading Errors Automatic Shut-Off Extends Battery Life Single Push Button Control And Quick Connect Chuck Allows Ease Of Use Rugged, Lightweight And Water-Resistant Design Makes This An Ideal Field Unit Low Battery Indication And Temperature Compensation Help Ensure Accuracy
Precision Leak Locating Using The Pressure Gradient Method Flash Testing Pressurized Splice Closures Pressure Testing For Leaking Plugs Operating Pressure Range:0.00 To 19.99 Psig (Metric Scales Available Upon Request) Resolution: 0.01 Psi Short Term Repeatability: ± 0.01 Psi Operating Temperature: 0° F (-18° C) To 131° F (+55° C) Accuracy (Linearity And Hysteresis): ± .3%Fs (Typ.) At 20° C Over Pressure Protection: To 50 Psig Calibration: Traceable To N.I.S.T. Battery Power: 9 Volt Alkaline Battery Dimensions: 4.0" (10.2 Cm) Diameter X 3.0" (7.6 Cm) High Weight: 1.2 Pounds (0.54 Kg) Chuck Type: Schrader Ball Type Quick Connect
New Design Features Include A Single Push Button That Turns The Unit On And A New 'Auto-Zero' Circuit To Zero Out The Gauge, Thereby Assuring The Accuracy Of Readings. The Model 4330 Displays Readings Of 1/100Th Of A Psi With A Range From 0 To 20 Psi. (Versions Equipped For Metric Measurement Units Are Also Available.)
Resolution To 0.01 Psi Makes Leak Pinpointing More Accurate Large Digital Displays Reduces Reading Errors Automatic Shut-Off Extends Battery Life Single Push Button Control And Quick Connect Chuck Allows Ease Of Use Rugged, Lightweight And Water-Resistant Design Makes This An Ideal Field Unit Low Battery Indication And Temperature Compensation Help Ensure Accuracy
Precision Leak Locating Using The Pressure Gradient Method Flash Testing Pressurized Splice Closures Pressure Testing For Leaking Plugs Operating Pressure Range:0.00 To 19.99 Psig (Metric Scales Available Upon Request) Resolution: 0.01 Psi Short Term Repeatability: ± 0.01 Psi Operating Temperature: 0° F (-18° C) To 131° F (+55° C) Accuracy (Linearity And Hysteresis): ± .3%Fs (Typ.) At 20° C Over Pressure Protection: To 50 Psig Calibration: Traceable To N.I.S.T. Battery Power: 9 Volt Alkaline Battery Dimensions: 4.0" (10.2 Cm) Diameter X 3.0" (7.6 Cm) High Weight: 1.2 Pounds (0.54 Kg) Chuck Type: Schrader Ball Type Quick Connect
