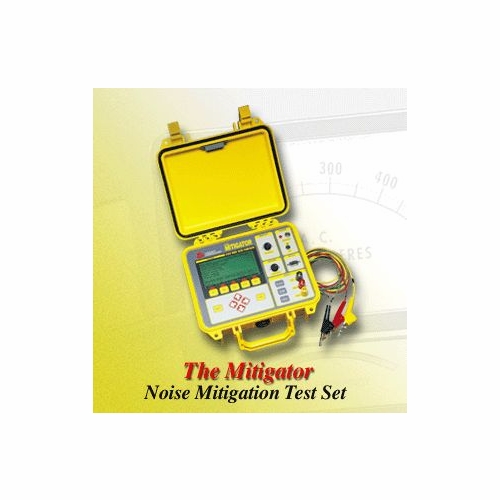

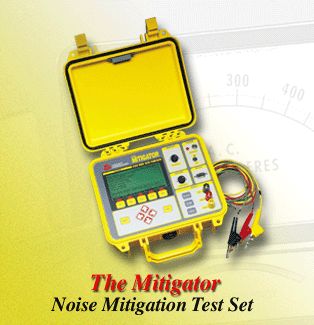

TRIPLETT 3230 60 Hz NOISE MITIGATION TEST SET REPAIRED

TRIPLETT 3230 60 Hz NOISE MITIGATION TEST SET REPAIRED The Mitigator from Triplett Corporation. A portable, weather-resistant, noise mitigation test set tailored to the needs of the entire Telco industry. The Mitigator, available in both 60Hz and 50Hz models, excels at measuring noise caused by excessive radiated harmonics. The Mitigator has a number of unique features such as: the "Green Window" Test, Data Logging, Analysis Mode and Peak Finder, just to name a few. All data analysis is accomplished internally and does not require additional PC support. The user-friendly Mitigator is menu driven and has a "HELP" key for continuous on-line assistance. Once the desired test has been selected from the main menu, The Mitigator, quickly and automatically, gathers the necessary data and displays it on the LCD screen. The data gathered can be stored in one of the numerous, non-volatile, digital memories and recalled later for analysis or for a hardcopy print-out via an external serial printer. The Mitigator from Triplett Corporation, there's nothing else quite like it!

Features . Harmonic Noise Analysis . Continuous On-Line Help . Harmonic Table: 60Hz or 50Hz (depending on Model) . Direct Access to Filters . "Green Window" Test . Standard Noise Measurement Features . Digital Signal Processing Technology using High Resolution FFT . Spectral Update Time of 7.5 Seconds . 90dB On Screen Display . Harmonic Current Probe Input up to 100 Amps . Peak Finder . Analysis Mode . Weather Resistant . Portable, Durable & Lightweight . Data Logging . Auto Dial (DTMF & Dial Pulse) . Digital Memory . Hardcopy printout (w/ external printer) . Selectable Impedance: 600., 900. and Bridged (600. or 900.) . Filters: 60Hz: C-Message, 3KHz Flat, 20/F 50Hz: Psophometer, 3KHz Flat (C.C.I.T.T.), 1/F, None . Zoom Mode . Geiger Mode . Automatic Shut-Off to conserve battery life
