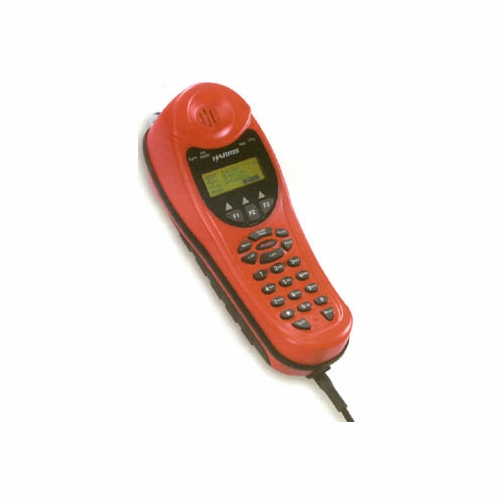

FLUKE TS250 ISDN TEST SET 25475000
Available*
Item # 24237550
Model # 25475000
$2,718.90
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Buttsets
Test Equipment
Butt sets-Dial Sets- Butt ins
ISDN Circuits
Fluke Networks
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

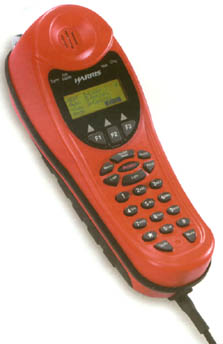

FLUKE/HARRIS DRACON TS250 ISDN TEST SET 25475000 NEW The TS250 and TS220 basic rate ISDN test sets are perfect for prequalification, installation and maintenance of ISDN lines. The TS250 and TS220 test sets virtually eliminate the need to learn complex ISDN protocols. Both models test the two-wire U interface, while the TS250 permits additional inspection of the four-wire S/T Interface inside the customer premises. All functions, including BERT and placing a voice call, are
readily accessible with just a few keystrokes
With intuitive, common sense menus and a comprehensive set of features, our TS220 and TS250 test sets virtually eliminate the need to learn complex ISDN protocols. We designed them to empower conventional line technicians to handle any ISDN aspect, from prequalifying a line as ISDN-capable through post-installation troubleshooting. Both models test the two-wire U Interface, while the TS250 permits additional inspection of the four-wire S/T Interface inside the customer premises. All functions, including BERT and placing a voice call, are readily accessible with just a few keystrokes. If you need to get clarifying information for any menu or ISDN message, simply press Assist for plain-language help. Features: Automated call-yourself BERT U and S/T Interface testing Supports line prequalification 64K and 56K data and voice calls On-line Assist key explaining complex messages in plain English Amplified speaker Backlit Liquid Crystal Display (LCD) and backlit keypad Impact-resistant and water-resistant Operates on 4 AA alkaline or rechargeable NiCad batteries
TS®250 ISDN Test Set Specifications
Electrical Switch Compatibility Lucent Technologies’ 5ESS switches. Northern Telcom DMS-100 switches. Switch Compatibility National ISDN-1 S/T Interface ANSI T1.605 - 1991 U Interface ANSI T1.601 - 1992 (supports Quiet Mode and Insertion Loss Mode per ANSI T1.601-1992) Battery Life NiCad: 8 hours to 10 hours, fully charged. Alkaline (AA): 10 hours to 12 hours. Charge Time Approximately 4 hours to 5 hours 40 kHz Transmit (U Interface) 40 kHz tone at nominal 0dBm dB output (open circuit) 96 kHz Transmit (S/T Interface) 96 kHz tone at nominal 750 mV peak (100 O termination). S/T Termination User selectable menu; bridge, or 100 O %. RS-232 Specifications Baud Rate 9600, 19200 Data Bit 8 bits Parity None Stop Bits 1 Active Pin Assignments (DB9) 2 - Receive 3 - Transmit 7 - Ground
Physical Measurements 10 in x 3.75 in x 4.25 in (25.4 cm x 9.5 cm x 10.8 cm) Weight 2.5 pounds (1.13 kg)
Environmental Water Resistance Rain and moisture resistant Storage -4 °F to 158 °F (-20°C to °C) Relative Humidity Noncondensing. Drop 12 ft (3.7 m) Note Specifications subject to change without notice.
With intuitive, common sense menus and a comprehensive set of features, our TS220 and TS250 test sets virtually eliminate the need to learn complex ISDN protocols. We designed them to empower conventional line technicians to handle any ISDN aspect, from prequalifying a line as ISDN-capable through post-installation troubleshooting. Both models test the two-wire U Interface, while the TS250 permits additional inspection of the four-wire S/T Interface inside the customer premises. All functions, including BERT and placing a voice call, are readily accessible with just a few keystrokes. If you need to get clarifying information for any menu or ISDN message, simply press Assist for plain-language help. Features: Automated call-yourself BERT U and S/T Interface testing Supports line prequalification 64K and 56K data and voice calls On-line Assist key explaining complex messages in plain English Amplified speaker Backlit Liquid Crystal Display (LCD) and backlit keypad Impact-resistant and water-resistant Operates on 4 AA alkaline or rechargeable NiCad batteries
TS®250 ISDN Test Set Specifications
Electrical Switch Compatibility Lucent Technologies’ 5ESS switches. Northern Telcom DMS-100 switches. Switch Compatibility National ISDN-1 S/T Interface ANSI T1.605 - 1991 U Interface ANSI T1.601 - 1992 (supports Quiet Mode and Insertion Loss Mode per ANSI T1.601-1992) Battery Life NiCad: 8 hours to 10 hours, fully charged. Alkaline (AA): 10 hours to 12 hours. Charge Time Approximately 4 hours to 5 hours 40 kHz Transmit (U Interface) 40 kHz tone at nominal 0dBm dB output (open circuit) 96 kHz Transmit (S/T Interface) 96 kHz tone at nominal 750 mV peak (100 O termination). S/T Termination User selectable menu; bridge, or 100 O %. RS-232 Specifications Baud Rate 9600, 19200 Data Bit 8 bits Parity None Stop Bits 1 Active Pin Assignments (DB9) 2 - Receive 3 - Transmit 7 - Ground
Physical Measurements 10 in x 3.75 in x 4.25 in (25.4 cm x 9.5 cm x 10.8 cm) Weight 2.5 pounds (1.13 kg)
Environmental Water Resistance Rain and moisture resistant Storage -4 °F to 158 °F (-20°C to °C) Relative Humidity Noncondensing. Drop 12 ft (3.7 m) Note Specifications subject to change without notice.
