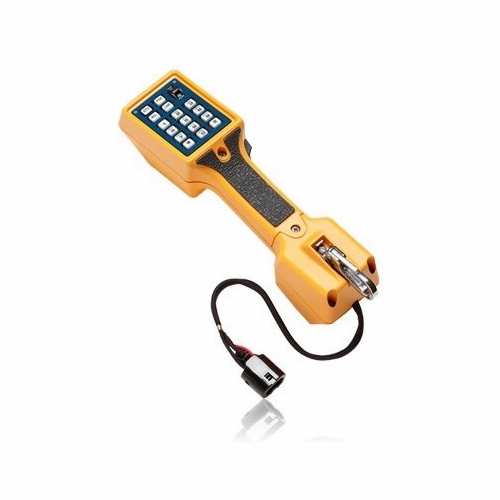

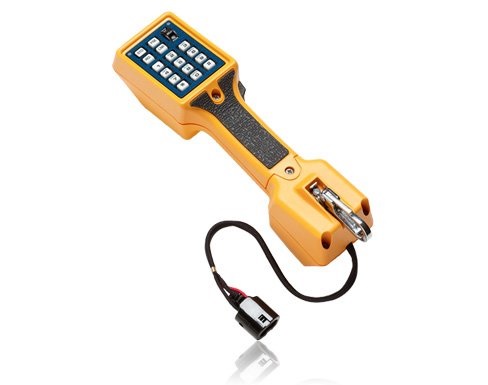

FLUKE TS22 1-WAY SPEAKERPHONE BUTT SET W/346A 22800-004
Available*
Item # 24180050
Model # 22800-004
$319.06
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Buttsets
Test Equipment
Butt sets-Dial Sets- Butt ins
1 Way Speaker Handsfree
Fluke Networks
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
FLUKE TS22 1-WAY SPEAKERPHONE BUTT SET W/346A 22800-004 NEW
FLUKE TS22 1-WAY SPEAKERPHONE BUTT SET W/346A 22800-004 NEW
Part # 22800004 TS22 test set with 346A plug
The TS22 Test Set’s unique built-in one-way amplified speaker provides three audio levels for hands-free listening and use with automated voice response systems. Multiple memories enable storage of nine 18 digit telephone numbers in repertory dialer (speed dialing) for easy access to test boards, the central office and other frequently called numbers. The last number redial feature eliminates the need to re-key your last entry. The TS22 Test Set offers an unbeatable combination of reliability, durability and expanded utility.
Dimensions 10.25 in x 2.69 in x 3.38 in (26 cm x 6.83 cm x 8.57 cm) Weight 21 oz (.595 kg)
Electrical Loop Limit 2 kO maximum at 48 VDC (nominal 20 mA minimum loop current) DC Resistance (Talk Mode) 300 O typical
Monitor Impedance TS22 5 kO nominal at 1 kHz
Rotary Dial Output Pulsing Rate 10 pps ±5 pps Percent Break 61 % ± 2 % Interdigit Interval 1000 ms typical Leakage During Break >50 kO
DTMF Output Tone ±1% maximum Frequency Error Tone Level -3 dBm combined (typical) High versus Low Tone Difference 4 dB maximum Monitor Amplifier 9 V battery; provides 25 hours Power Source continuous use, typical Speaker Levels for TS22 Low, medium, high and off Automatic Power Shut Off After 5 min. of no audio signal
Environmental Temperature Operating: 29 °F to 140 °F (-34 °C to 60 °C) Storage -40 °F to 150 °F (-40°C to 66 °C) Altitude To 10,000 feet (3,000 meters) Relative Humidity 5 % to 95 %
* The TS22 Series Test Set contains an embedded 3-volt lithium battery. The 9-volt battery in the Test Set should be changed when low, or once a year if not in use, to prevent the 3-volt battery from draining. A 3-volt battery that drains after its 42-month warranty will need to be replaced by an authorized service facility at a charge to you.
FLUKE TS22 1-WAY SPEAKERPHONE BUTT SET W/346A 22800-004 NEW
Part # 22800004 TS22 test set with 346A plug
The TS22 Test Set’s unique built-in one-way amplified speaker provides three audio levels for hands-free listening and use with automated voice response systems. Multiple memories enable storage of nine 18 digit telephone numbers in repertory dialer (speed dialing) for easy access to test boards, the central office and other frequently called numbers. The last number redial feature eliminates the need to re-key your last entry. The TS22 Test Set offers an unbeatable combination of reliability, durability and expanded utility.
Dimensions 10.25 in x 2.69 in x 3.38 in (26 cm x 6.83 cm x 8.57 cm) Weight 21 oz (.595 kg)
Electrical Loop Limit 2 kO maximum at 48 VDC (nominal 20 mA minimum loop current) DC Resistance (Talk Mode) 300 O typical
Monitor Impedance TS22 5 kO nominal at 1 kHz
Rotary Dial Output Pulsing Rate 10 pps ±5 pps Percent Break 61 % ± 2 % Interdigit Interval 1000 ms typical Leakage During Break >50 kO
DTMF Output Tone ±1% maximum Frequency Error Tone Level -3 dBm combined (typical) High versus Low Tone Difference 4 dB maximum Monitor Amplifier 9 V battery; provides 25 hours Power Source continuous use, typical Speaker Levels for TS22 Low, medium, high and off Automatic Power Shut Off After 5 min. of no audio signal
Environmental Temperature Operating: 29 °F to 140 °F (-34 °C to 60 °C) Storage -40 °F to 150 °F (-40°C to 66 °C) Altitude To 10,000 feet (3,000 meters) Relative Humidity 5 % to 95 %
* The TS22 Series Test Set contains an embedded 3-volt lithium battery. The 9-volt battery in the Test Set should be changed when low, or once a year if not in use, to prevent the 3-volt battery from draining. A 3-volt battery that drains after its 42-month warranty will need to be replaced by an authorized service facility at a charge to you.
