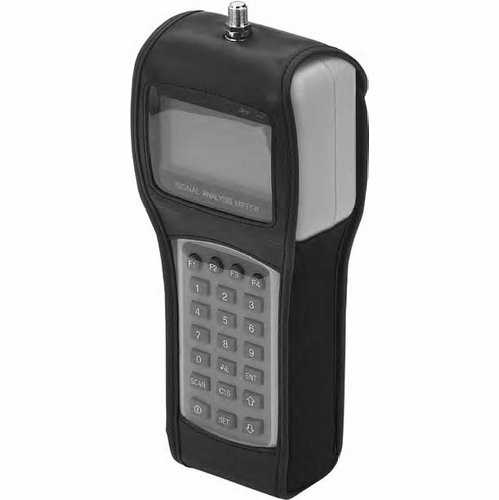

PICO MACOM PICO-PRO SIGNAL ANALYSIS METER CATV SIGNAL TESTER ( )

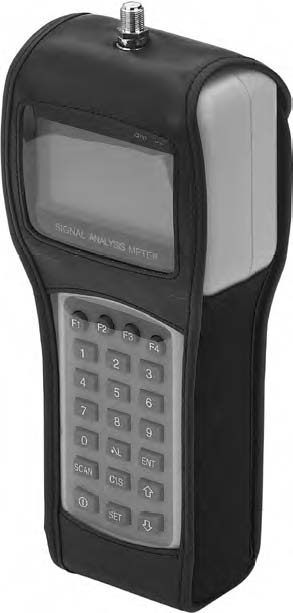

PICO MACOM PICO-PRO SIGNAL ANALYSIS METER CATV SIGNAL TESTER (NEW) Pico Macom’s PICO-PRO is a full-featured handheld signal performance meter providing a complete signal test system in easy-to-carry protective case. The PICO-PRO allows choice of 4 pre-programmed user-selectable band plans accessed via keypad entry for easy measurement of broadcast, CATV, CATV/HRC, and SUB/VHF channels. Direct-entry channel or frequency tuning selections provide maximum flexibility in headends and distribution networks that employ narrow digital signals, or non-standard frequency applications. The meter displays instantaneous digital signal levels when testing digital carrier levels. The large LCD screen displays signal level as a bar-graph with digital numeric readout. This backlit display provides screen illumination in dimly lit work-spaces, allowing behind rack and night meter operation. The PICO-PRO enables testing of carrier-to-noise, multiple channels, and full, reduced, and single band scan for complete testing flexibility. The meter’s functions include not only signal measurement when AC/DC voltage is present under test, but, when selected, voltage-level display.

Full-channel operation 5-870 MHz Frequency Range (Channels T7-T13, 2-135)

4-keypad channel plans (TV, CATV/STD, CATV/HRC, SUB/VHF) enable quick switching between sources

Single keypad frequency or channel selection provides compatibility with channel, data, and other narrow bandwidth carriers

Full spectrum-analyzer scan provides display of up to 100 channels simultaneously

Carrier-to-noise testing provides accurate testing of system performance anywhere in the headend or distribution system

Large easy-to-read backlit Graphic LCD display provides quick-glance signal reference even in dimly lit work environments

AC/DC voltage readings and compatibility allow measurements through input connector, enabling signal and voltage measurements when voltage is present in tested signal without costly adapters

8-Hour rechargeable NiMH batteries provide cost savings

Automatic power shut-off feature extends time between recharges

Bright orange high impact plastic housing and soft leatherette-vinyl protective case with belt clip included

SIGNAL ANALYSIS METER Frequency range: 5MHz ~MHz Frequency resolution ratio 10kHz Measured band width: 280kHz Level Measurment Measurement range: -35dBmV ~BmV Measurement accuracy: ± 1.5dB Resolution ratio: 0.1dB Method of detection: Peak detection Input resistance: 75 ohm Carrier-noise ratio (CN) Signal input range: > 10dBmV Measurement accuracy: + 2dB Voltage Measurement Input range: 0 ~ AC/DC Measurement accuracy: ± 2V Resolution ratio: 0.1V Dimensions: 4.3½(L) x 2.6½(D) x 10.0½(H) Weight: 2 lbs. All the above technical indexes are under indoor temperature (25°C).
