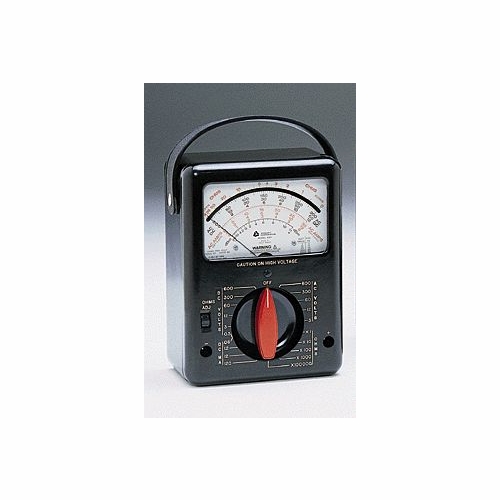

TRIPLETT MODEL 630 METER 3030
Available*
Item # 23550000
Model # 3030
$417.84
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Meters
Test Equipment
Multimeters-VOM-Brownie
Analog
Jewell Instruments
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

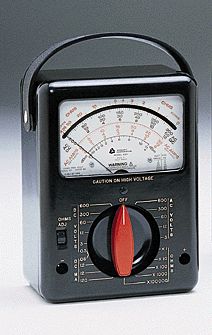

TRIPLETT MODEL 630 METER NEW Model 630
25 Range
6 DC Voltage Ranges
5 AC Voltage Ranges
4 DC Current Ranges
5 Resistance Ranges
5 Decibel Ranges
Mirrored Scale
The Model 630's glass window and black thermoset plastic case resists damage from abrasion, hot soldering irons and many solvents.
Diode overload protection and 2 fuse arrangement.
Single range switch and only one set of input jacks to minimize error.
Completely insulated unit with safety leads.
Catalog No. 3030
--------------------------------------------------------------------------------
Specifications
--------------------------------------------------------------------------------
Click here for more specifications, and a Triplett Analog VOM Product Comparison (112K .PDF Document)
DC VOLTAGE: RANGES: 0.3 (16,667 Ohms/Volt) 3, 12, 60, 300, 600 (20,000 Ohms/Volt) ACCURACY: ± 1.5% of Full Scale AC VOLTAGE: RANGES: 3, 12, 60, 300, 600 SENSITIVITY: 5,000 Ohms/Volt ACCURACY: ± 3% of Full Scale RESISTANCE: RANGES: 1K Ohms, 10K Ohms, 100K Ohms, 1M Ohms, 100M Ohms CENTER SCALE: 4.4 Ohms on lowest range ACCURACY: ± 1.5% of Scale Length DC CURRENT (Milliamperes): RANGES: 0.06, 1.2, 12, 120 MAX VOLTAGE BURDEN: 300mV ACCURACY: ± 1.5% of Full Scale DECIBELS: -20dBm to +57dBm (1mW, 600 Ohms) BATTERIES: (1) 30V NEDA 210 and (1) 1.5V NEDA 13F METER & SCALE: Taut-band movement, mirrored scale. OVERLOAD PROTECTION: Meter movement is diode protected. 1 Amp/250V, & 2 Amp/600 Volt circuit fuses DIMENSIONS: 3 11/32" x 5.5" x 7.5" (85mm x 140mm x 190mm) SHIPPING WEIGHT: 5 Lbs. (2.25kg) ACCESSORIES INCLUDED: 48" safety test leads, screw-on insulated alligator clips, batteries, spare 1A fuse and instruction manual. WARRANTY: Three years, one year on calibration
--------------------------------------------------------------------------------
Accessories
--------------------------------------------------------------------------------
Catalog No. Description 10-823 639 Carrying Case (Top Opening) 10-1189 639-N Carrying Case (Snap Back Cover) 10-1398 Lucite Back (Clear) 10-1793 639-OS Carrying Case (With Stand) 10-2739 639-A Carrying Case (Snap Back Cover) 37-19 30 Volt Battery 60-211 Model 10 Clamp-On AC AMP Adaptor 60-218 Model 101 Line Separator 60-335 Model 10-C Clamp-On AC AMP Adaptor (630-NS Only) 79-127 48" Safety Test Leads (630 Type 1, 2, & 3, 630-NA, 630-NS, 630-PL, 630-PLK) 79-373 Miniature Clip Leads (630 Type 4 & Later) 79-374 48" Safety Test Leads (630 Type 4 & Later) 79-415 611 Lead (630 Type 1, 2, & 3 to Model 10) 79-417 6' Attachment Lead (630 to Model 10, Type 4 & Later Only) 255-35 Stand 2426-1 1.5V Battery 3207-15 1 AMP Fuse (630 Only) 3207-21 10 AMP Fuse (630-PL & 630-PLK Only) 3207-22 3 AMP Fuse (630-PLK Only) 3207-61 3 AMP Fuse (630-PLK Only) 3207-67 1.25 AMP Fuse (630-NA, 630-NS, 630-PL Only) 3207-69 12 Amp Fuse (630-NA, 630-NS Only)
