WireXpert LAN Cable Certifier Kit WX4500-FA certifies up to Cat 8 testing.
Available*
Item # 22197600
Model # WX4500-FA
$9,300.00
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Lan
Test Equipment
LAN- Network
Combination
Softing
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
Softing WireXpert LAN Cable Certifier Kit WX4500-FA
Softing WireXpert 4500 first in the market to obtain the Bel Stewart Category 8.2 / Class ll approval.
Be the first one to test and verify your data center installation for an up to 40GB/s speed!
The Softing WireXpert, with its unparalleled 2,500 MHz measurement range, is the first cable certifier with capability to certify the highest performance cabling systems in enterprise networks and data centers. Cable installers make significant gain in productivity with Softing WireXpert‘s industry leading test speed and ease of use. With certification testing up to Class FA and CAT8 copper cabling, as well as MPO, SM, MM and MMEF fiber optic cabling, Softing WireXpert is ready for 40G and beyond.

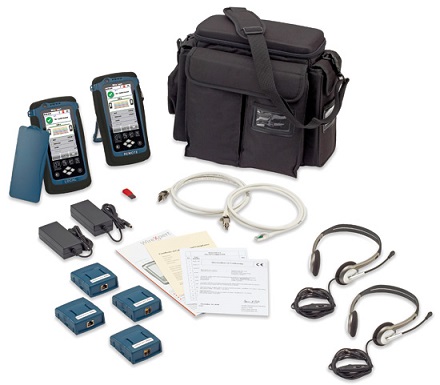

WX4500-FA 2x Main certification test units 2x Li-Ion batteries 2x Stylus with Cords 2x Display protection cover 2x CAT 6A Permanent Link Adapter 2x CAT 6A Permanent Link Test Cords 2x CAT 6A Channel Adapter USB Stick with reference manual and eXport software 2x Talk sets 2x AC Power Adapters 2x Country Specific Power Cords Calibration certificate Quick Reference Guide Carry bag
We use cookies to give you the best onlin Most advanced cable certification for all standards: Class D/E/EA/FA, Category 5e/6/6A, and the new draft CAT8 as well as ISO draft standards Class I and Class II First cable certification up to 2,500 MHz to support new TIA CAT8 und ISO Class I and II draft standard Very fast autotest in just seconds Measurement accuracy independently verified by ETL - exceeds ISO Level V* (draft), IV and TIA Level IIIe accuracy requirements Endorsed by over 20 cable companies worldwide Field upgradable with many options e.g. patch cord testing, Industrial Ethernet, Class FA Perform extended fiber certification for 850/1300 MM and 1310/1550 SM fiber First to support MPO fiber testing for data centers Local & Remote units, CAT6A two each: Channel adapters; Link adapters; Patch cords
Copper testing
Certification Testing TIA 568-C.2 CAT5e, 6, 6A, draft CAT8 ISO/IEC 11801, EN 50173 Class D,E,EA,F,FA draft Class I and Class II Permanent link and channel Max cable length for dual ended autotest 500m Insertion Cycles Channel: 10,000 typical Permanent link: 5,000 typical Testparameters As specified in TIA 1152, IEC 61935-1 Wiremap Loop Resistance 0 to 40 O, ±0.1 O Length 0 to 500m, ±0.5m (dual ended testing) Propagation Delay and Delay Skew 0 to 5000 ns, ±1 ns Attenuation 0 to 70 dB, ±0.1dB Pair-to-Pair and Power-Sum NEXT 0 to 85 dB, ±0.2 dB Pair-to-Pair and Power-Sum ACRF 0 to 85 dB, ±0.2 dB Return Loss 0 to 40 dB, ±0.2 dB ACRN, PSACRN 0 to 85 dB, ±0.5 dB Advanced Diagnostics Time-domain fault Locator for RL and NEXT Measurement accuracy Exceeds TIA 1152 Level IIIe, IEC 61935 level IV Measurement frequency range 1- 2,500 MHz
General Specifications Interfaces Probe Interface, RJ-45 Ethernet, USB host and device, talkset, power jack Display 6 inch industrial LCD, touch sensitive area on both units Enclosure Ruggedized plastic with rubber over-mold, withstands 1.5m drop test on hard surface Remote unit abilities View test results, save tests, start autotest Power supply AC 100-240V to 12V, 3A power adapter Input over-voltae protection Protected against Telco voltages
Battery Removable and rechargeable Li-Ion Battery Capacity >8 hours continuous operation Internal Storage Capacity 2000 copper test results with full plot information External Storage USB Flash Drive Dimensions 232 X 126 X 87 mm(9.1 X 5.0 X 3.4 inch) Weight Approx. 1.4 kg (3.0 lb) / unit Supported Languages Chinese, Czech, English, Finnish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish Calibration period 1 year
Environmental Operating Temparature 0 to 40 °C Storage Temperature -20 to 60 °C Relative humidity 10% to 80%
It comes with a 1 year manufacturer's guaranty against manufacturer defects. The calibration and other coverage comes with the XpertCare program.
***REQUIRES CAT8 TEST CABLES FROM MANUFACTURER TO TEST CAT 8***NOT INCLUDED***
