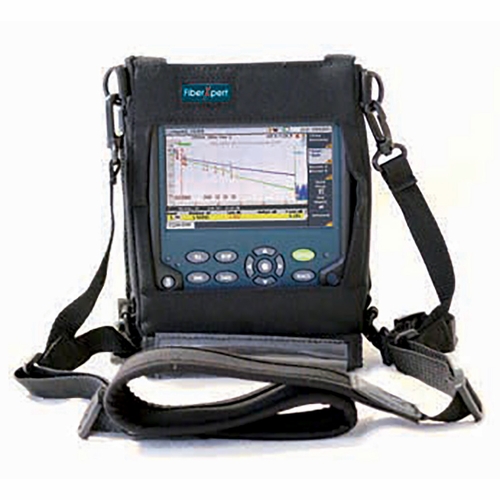

WireXpert FiberXpert OTDR 5000 SM-MM Kit FX5000-QU 580/1300/1310/1550
Available*
Item # 22197590
Model # WX5000-QU
$10,500.00
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Otdr
Test Equipment
LAN- Network
Combination
Softing
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

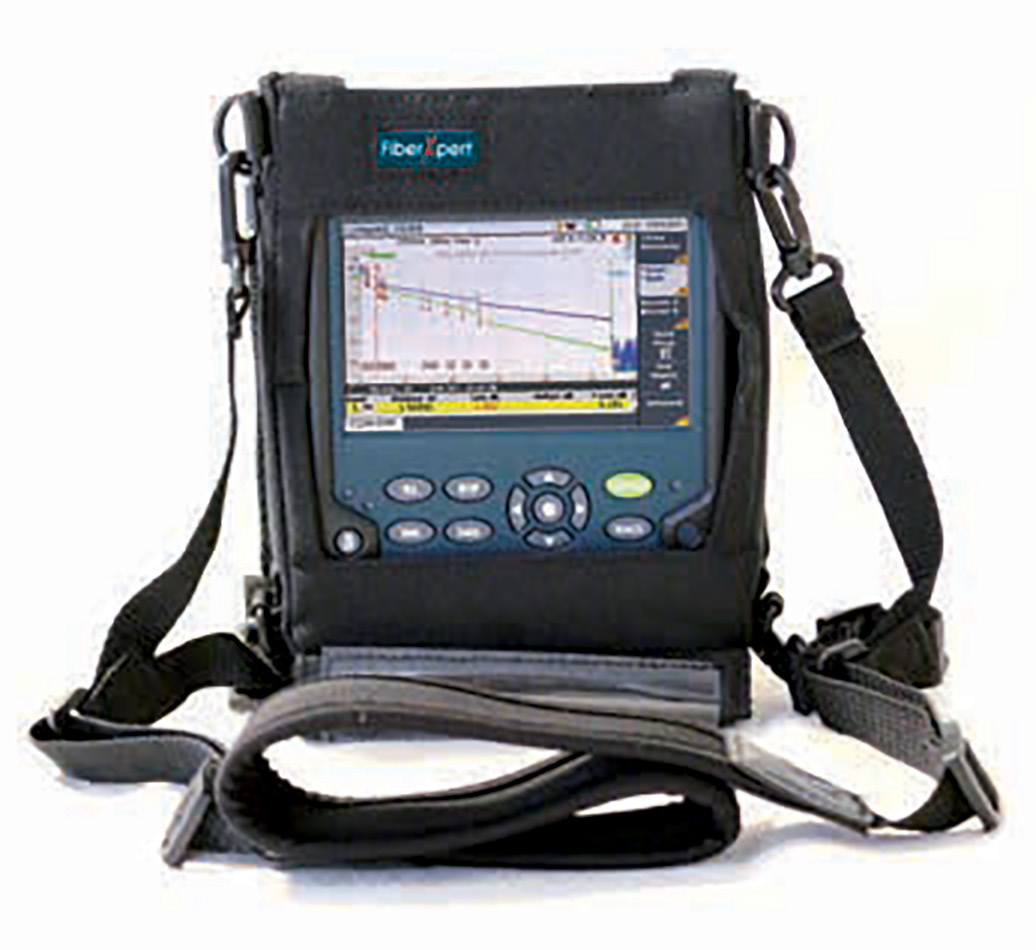

Softing WireXpert FiberXpert OTDR 5000 SM-MM Kit FX5000-QU 580/1300/1310/1550
Contents of the kit FiberXpert OTDR 5000 Quad Multi-mode/Single-Mode 850/1300/1310/1550nm Optical Time Domain Reflectometer Includes FiberXpert, SC compatible Multimode module, SC compatible Single-Mode module, Li-Polymer batteries, power supplies, soft case with shoulder strap, hard carry case, calibration certificate Part number: FX5000-QU
General (Typical at 25C) Weight 0.88lbs Dimensions (w ~h ~d) 128x134x40 mm (5x5.28x1.58 in) Optical Interfaces to ST, SC to SC) Optical connector SC (Launch cords available: SC to LC, SC
Technical Characteristics Laser safety class (21 CFR) Class 1 Kilometers, feet, and miles Group index range 1.300000 to 1.700000 in 0.00001 steps Number of data points Up to 128,000 data points Distance measurement Automatic or dual cursor Display range 3.25 m to 260 km Cursor resolution 1 cm Sampling resolution 4 cm Accuracy } 1 m } 10 -5 x distance } sampling resolution (Excluding group index uncertainties) Attenuation Measurement Automatic, manual, 2-point, 5-point, and LSA Display range 1.25 dB to 55 dB Display resolution 0.001 dB Cursor resolution 0.001 dB Linearity }0.03 dB/dB Threshold 0.01 to 5.99 dB in 0.01 dB steps Reflectance/ORL Measurements Reflectance accuracy }2 dB Display resolution 0.01 dB Threshold .11 to .99 dB in 1 dB steps
CW Source CW Source output power level .3.5 dBm
Operating modes CW, 270 Hz, 330 Hz, 1 kHz, 2 kHz, TWINTest
Power Meter Power level range MM: .3 to .30 dBm Calibrated wavelengths MM: 850 and 1300 nm SM: .2 to .50 dBm Calibrated wavelengths MM: 850 and 1300 nm SM: 1310, 1490, 1550, 1625, and 1650 nm Measurement accuracy MM1: }1 dB Multimode and Quad OTDR Modules (Typical at 25C) Central wavelength2 850/1300 }30 nm - 1310/1550 }20 nm Pulse width 3 ns to 1 Ęs 3 ns to Ęs RMS dynamic range3 26/24 dB 37/35 dB Event dead zone4 0.8 m 0.9 m Attenuation dead zone5 4 m 4 m
It comes with a 1 year manufacturer's guaranty against manufacturer defects. The calibration and other coverage comes with the XpertCare program.
