CTC 9925BLT W/TDR OPTION C9925BLT-1001
Available*
Item # 21880120
Model # 9925BLT-1001
$3,375.00
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Loop Test
Test Equipment
Subscriber Loop Tester
Combination
Joslyn
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

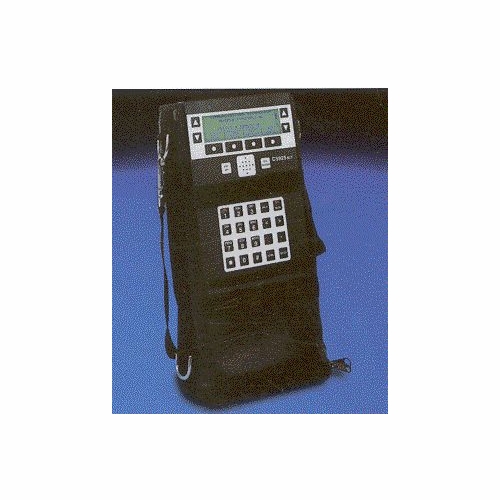

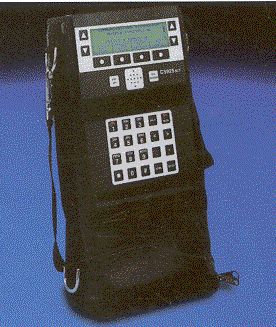

CTC JOSLYN 9925BLT W/TDR OPTION #C9925BLT-1001 NEW Product Capabilities
A step ahead of the industry, the BLT is the leading subscriber loop test tool used by service technicians for special service construction and cable repair. With its intuitive interface and user-friendly keys, this compact test set offers increased measurement, speed and accuracy.
Enhanced with the addition of optional wideband loop qualification and fully functional TDR feature packages, the BLT's compact size promotes efficiency and convenience with the opportunity for future expansion.
The BLT is cutting-edge multifunction technology, combining a wide range of testing capabilities with the option for future test modules to be added. Hardware additions are simple and software enhancements can be downloaded directly from a PC, allowing the BLT to support varied test technologies. TDR Capabilities The TDR test upgrade allows the BLT to perform fault location using the Time Domain Reflectometer (TDR) hardware/software package. This function is complementary to the existing opens, splits, load coil, and resistive fault location (RFL) functions of the standard BLTŪ unit. In many cases, the TDR will provide confirmation of those test results. In addition, the TDR function determines the precise location of bridge taps, poor splice joints, water damage, and load coil distance, which are nearly impossible to identify in the frequency domain alone.
The TDR test upgrade allows rapid, single-ended, location of cable faults, characteristics, and network elements, such as: Bridge taps/laterals Partial opens caused by poor splice joints Low-resistance faults Load coils and build-out capacitors (BOCs) Splits and resplits Water damage
Enhanced with the addition of optional wideband loop qualification and fully functional TDR feature packages, the BLT's compact size promotes efficiency and convenience with the opportunity for future expansion.
The BLT is cutting-edge multifunction technology, combining a wide range of testing capabilities with the option for future test modules to be added. Hardware additions are simple and software enhancements can be downloaded directly from a PC, allowing the BLT to support varied test technologies. TDR Capabilities The TDR test upgrade allows the BLT to perform fault location using the Time Domain Reflectometer (TDR) hardware/software package. This function is complementary to the existing opens, splits, load coil, and resistive fault location (RFL) functions of the standard BLTŪ unit. In many cases, the TDR will provide confirmation of those test results. In addition, the TDR function determines the precise location of bridge taps, poor splice joints, water damage, and load coil distance, which are nearly impossible to identify in the frequency domain alone.
The TDR test upgrade allows rapid, single-ended, location of cable faults, characteristics, and network elements, such as: Bridge taps/laterals Partial opens caused by poor splice joints Low-resistance faults Load coils and build-out capacitors (BOCs) Splits and resplits Water damage
