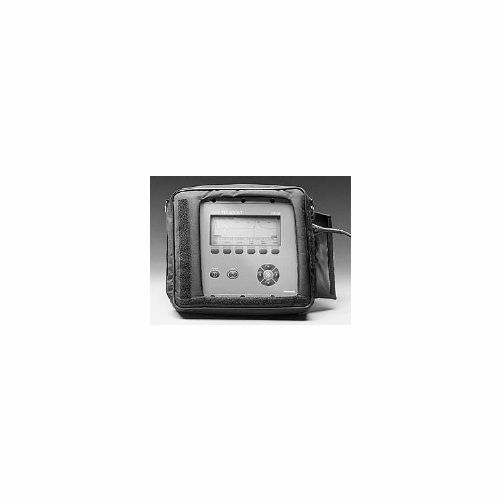

TEKTRONIX TS100 TELSCOUT REPAIRED
Available*
Item # 20990760
Model # TS100 REPAIRED
$1,785.00
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Tdr
Test Equipment
TDR
Digital
Tektronix
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
TEKTRONIX TS100 TELSCOUT REPAIRED 4/27/01 - TEKTRONIX SOLD THIS PARTICULAR LINE TO TEMPO!!!!
Cable Tester for Telephone Applications TelScout® TS100 Features Twisted Pair and Coax Testing in a Single Unit (Optional) One-step Setup 15 km Fault Location Capability Rugged - Survives 2 m Drop Single-button Zoom Function Pair Comparison Mode Splits/Crosstalk Mode Internal Storage for 20 Waveforms and Notes Serial Printer Output for Stored or Displayed Waveforms Online Tutorials Large Backlit Display Applications Twisted Pair Telephony/Maintenance and Repair Intermittent Fault Location Wet Cable Identification Measure Distance to Load Coil Identify Opens, Shorts and Splits on POTS Plant
If your job is to find faults on telephone twisted pair cable, the Tektronix TelScout TS100 is built for you. Designed specifically for telephone local loop applications, the TS100 applies the newest technology to provide both ease of use and telephony performance that cannot be found in any other TDR.
The TS100 is designed for ease-of-use you'll spend less time operating the TDR, and more time repairing faults. Simply select the cable type to be tested and the TS100 does the rest. Impedance, Vp, gain, pulse width, and vertical position are automatically selected and adjusted as you scan the cable. Just move the cursor to the fault to pinpoint its location.
On the performance side, the TS100 employs optimized pulsing and sampling, coupled with advanced filtering and signal processing techniques, to insure the maximum measurement range. That way, you'll always have a clean waveform for easier fault interpretation.
Call to see if units in stock include option 1 for Coax testing!! Short Pulse and Coax Option The short pulse Option 01 provides a 5 ns pulse width for close-in resolution. Faults as near as 3 ft. from the pedestal can be located with ease.
Option 01 also includes a coaxial cable setup menu and an adapter cable. This enables you to locate faults in coaxial cables used in today's emerging broadband systems.
Best of all, you get all this performance in the industry's most rugged TDR package. Come snow, rain, heat and humidity, the TS100 keeps working, because you have to.
Cable Tester for Telephone Applications TelScout® TS100 Characteristics Test Signal Output - Standard: 1/2 Sine, balanced. Opt. 01: 1/2 Sine.
Amplitude - Standard: 20 ns: 8 V into 105 Ohm. All Other Pulse Widths: 20 V into 105 Ohm. Opt. 01: 5 ns: 2.5 V into 105 Ohm. 20 ns: 1 V into 105 Ohm. All Other Pulse Widths: 4 V into 105 Ohm.
Output Impedance - Standard: 105 Ohm. Opt. 01: 105 Ohm.
Pulse Widths - Standard: 20 to 3,000 ns. Opt. 01: 5 to 3,000 ns.
Input Protection - ±400 V, DC + peak AC, to a maximum of 440 Hz.
Maximum Range - Standard: 15,000 m (45,000 ft.), depending on cable type and condition. Opt. 01: 10,000 m (30,000 ft.) depending on cable type and condition.
Display Resolution - 0.33% of selected range, 4.5 cm (0.15 ft.) minimum, on 640 x 200 high-resolution backlit LCD.
Display Ranges - Eleven display ranges plus single-button expand window. Ranges are user definable in manual mode.
Filter - High pass, cutoff frequency 150 kHz, user selectable.
Amplifier- 5 mV reflection produces a full-screen vertical deflection.
Gain - 0 to 63 dB.
Waveform Storage - Up to 20 waveforms with notes.
Horizontal Accuracy - 0 to 5,000 m: ±1 m ± uncertainty in Vp. 5,000 to 15,000 m: ±2 m ± uncertainty in Vp. 0 to 2,000 ft.: ±2 ft. ± uncertainty in Vp. 2,000 to 10,000 ft.: ±3 ft ± uncertainty in Vp. 10,000 to 20,000 ft.: ±4 ft. ± uncertainty in Vp.
Serial Interface - 9-Pin D-type serial connector.
General Characteristics Environmental Temperature - Operating: -15°C to +60°C. Nonoperating: -20°C to +65°C. Humidity: 95% RH, non-condensing. Shock: (test specification) Survives drop of 2 m to concrete in standard soft case. EMI Emissions: FCC part 15, subpart J, class A; VFG243 and EN55022.
Power Mains Operation - Voltage Ranges: 110 V, 220 V, 240 V with appropriate AC to DC adapter.
Battery Operation - Operating Time: 8 hrs. continuous. Battery Saver: Selectable for 5 to 30 minutes or disabled.
Safety - UL1244, CSA231.
Physical Characteristics Dimensions cm in. Height 30.0 12.0 Width 25.0 10.0 Depth 9.0 3.5 Weight kg lb. Net 3.0 6.4
Cable Tester for Telephone Applications TelScout® TS100 Features Twisted Pair and Coax Testing in a Single Unit (Optional) One-step Setup 15 km Fault Location Capability Rugged - Survives 2 m Drop Single-button Zoom Function Pair Comparison Mode Splits/Crosstalk Mode Internal Storage for 20 Waveforms and Notes Serial Printer Output for Stored or Displayed Waveforms Online Tutorials Large Backlit Display Applications Twisted Pair Telephony/Maintenance and Repair Intermittent Fault Location Wet Cable Identification Measure Distance to Load Coil Identify Opens, Shorts and Splits on POTS Plant
If your job is to find faults on telephone twisted pair cable, the Tektronix TelScout TS100 is built for you. Designed specifically for telephone local loop applications, the TS100 applies the newest technology to provide both ease of use and telephony performance that cannot be found in any other TDR.
The TS100 is designed for ease-of-use you'll spend less time operating the TDR, and more time repairing faults. Simply select the cable type to be tested and the TS100 does the rest. Impedance, Vp, gain, pulse width, and vertical position are automatically selected and adjusted as you scan the cable. Just move the cursor to the fault to pinpoint its location.
On the performance side, the TS100 employs optimized pulsing and sampling, coupled with advanced filtering and signal processing techniques, to insure the maximum measurement range. That way, you'll always have a clean waveform for easier fault interpretation.
Call to see if units in stock include option 1 for Coax testing!! Short Pulse and Coax Option The short pulse Option 01 provides a 5 ns pulse width for close-in resolution. Faults as near as 3 ft. from the pedestal can be located with ease.
Option 01 also includes a coaxial cable setup menu and an adapter cable. This enables you to locate faults in coaxial cables used in today's emerging broadband systems.
Best of all, you get all this performance in the industry's most rugged TDR package. Come snow, rain, heat and humidity, the TS100 keeps working, because you have to.
Cable Tester for Telephone Applications TelScout® TS100 Characteristics Test Signal Output - Standard: 1/2 Sine, balanced. Opt. 01: 1/2 Sine.
Amplitude - Standard: 20 ns: 8 V into 105 Ohm. All Other Pulse Widths: 20 V into 105 Ohm. Opt. 01: 5 ns: 2.5 V into 105 Ohm. 20 ns: 1 V into 105 Ohm. All Other Pulse Widths: 4 V into 105 Ohm.
Output Impedance - Standard: 105 Ohm. Opt. 01: 105 Ohm.
Pulse Widths - Standard: 20 to 3,000 ns. Opt. 01: 5 to 3,000 ns.
Input Protection - ±400 V, DC + peak AC, to a maximum of 440 Hz.
Maximum Range - Standard: 15,000 m (45,000 ft.), depending on cable type and condition. Opt. 01: 10,000 m (30,000 ft.) depending on cable type and condition.
Display Resolution - 0.33% of selected range, 4.5 cm (0.15 ft.) minimum, on 640 x 200 high-resolution backlit LCD.
Display Ranges - Eleven display ranges plus single-button expand window. Ranges are user definable in manual mode.
Filter - High pass, cutoff frequency 150 kHz, user selectable.
Amplifier- 5 mV reflection produces a full-screen vertical deflection.
Gain - 0 to 63 dB.
Waveform Storage - Up to 20 waveforms with notes.
Horizontal Accuracy - 0 to 5,000 m: ±1 m ± uncertainty in Vp. 5,000 to 15,000 m: ±2 m ± uncertainty in Vp. 0 to 2,000 ft.: ±2 ft. ± uncertainty in Vp. 2,000 to 10,000 ft.: ±3 ft ± uncertainty in Vp. 10,000 to 20,000 ft.: ±4 ft. ± uncertainty in Vp.
Serial Interface - 9-Pin D-type serial connector.
General Characteristics Environmental Temperature - Operating: -15°C to +60°C. Nonoperating: -20°C to +65°C. Humidity: 95% RH, non-condensing. Shock: (test specification) Survives drop of 2 m to concrete in standard soft case. EMI Emissions: FCC part 15, subpart J, class A; VFG243 and EN55022.
Power Mains Operation - Voltage Ranges: 110 V, 220 V, 240 V with appropriate AC to DC adapter.
Battery Operation - Operating Time: 8 hrs. continuous. Battery Saver: Selectable for 5 to 30 minutes or disabled.
Safety - UL1244, CSA231.
Physical Characteristics Dimensions cm in. Height 30.0 12.0 Width 25.0 10.0 Depth 9.0 3.5 Weight kg lb. Net 3.0 6.4
