RISER BOND 1550 TDR REPAIRED
Available*
Item # 20948050
Model # 1550
$551.25
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Tdr
Test Equipment
TDR
Digital
SPX Radio Detection
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

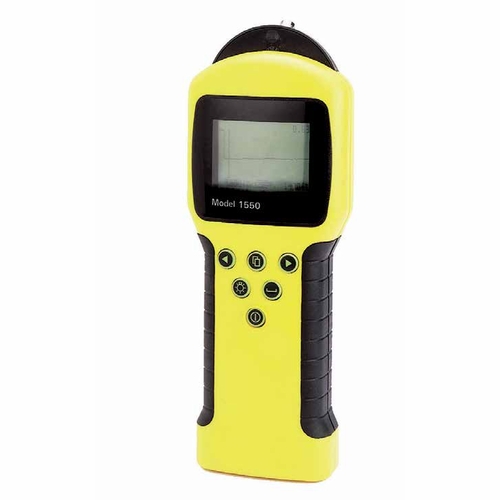

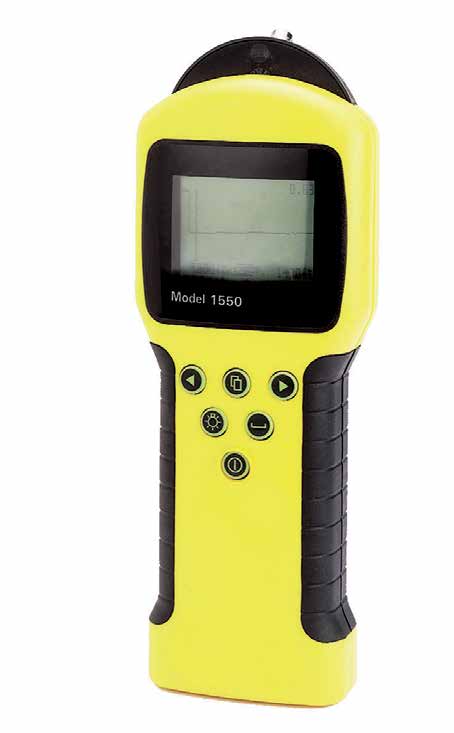

Riser Bond Model 1550 Metallic Time Domain Reflectometer Cable Fault Locator
FEATURES/KEY BENEFITS Low cost Increase productivity by equipping more technicians with their own TDRs. Ergonomic design Designed to be held comfortably in one hand. Large, well-spaced buttons are easy to use. Small size Easy to carry. Compact styling makes it convenient to use in tight spaces. Modular test lead design Adaptable to a variety of industries and applications. Modules are available for twisted pair, coaxial cable, and power cable use. Durable, weather-resistant housing Suited to indoor and outdoor usage. Rugged plastic case stands up to everyday use.
product specifications Physical Dimensions: Width: 4 inches (100 mm) Height: 9.8 inches (250 mm) Depth: 2.2 inches (55 mm) Weight: 1.3 pounds (600 g) Power: Six AA Alkaline batteries
Environment: Operating temperature: -20° C (-4° F) to +55° C (+131° F) Storage temperature: -30° C (-22° F) to +70° C (+158° F) Humidity: 93% relative humidity at 40° C Display: 128 x 64 dot-matrix, liquid crystal display (LCD) with backlight Ranges: 33 ft (10 m) 98 ft (30 m) 330 ft (1000 m) 980 ft (300 m) 3300 ft (1000 m) 9800 ft (3000 m)
Ingress Protection: Water resistant to BS2011, Part 2.1 R.IEC 68-2-18, Test Ra Cursor: Single, vertical line Resolution: 1% of range Gain: Automatic; varied across screen Pulse Amplitude: 5V nominal when unterminated Output Impedance: 25, 50, 75, and 100Ù switchable Velocity of Propagation: Adjustable from .20 to .99 Output Sockets: 2 x 4 mm on 19 mm pitch Output Pulses: 7 nsec to 2000 nsec selected according to range Distance Accuracy: ± 0.9% of range Safety: EC Compliant
Accessories: Standard: Operator’s manual, Weatherproof shoulder bag with belt loop, 6 AA batteries. Optional: Fused blocking filter test lead for live power cable to 600 VAC, 50 ohm test lead for coax cable and unenergized power cable, 75 ohm test lead for coax cable, 100 ohm test lead for twisted pair cable, BNC to F adaptor.
FEATURES/KEY BENEFITS Low cost Increase productivity by equipping more technicians with their own TDRs. Ergonomic design Designed to be held comfortably in one hand. Large, well-spaced buttons are easy to use. Small size Easy to carry. Compact styling makes it convenient to use in tight spaces. Modular test lead design Adaptable to a variety of industries and applications. Modules are available for twisted pair, coaxial cable, and power cable use. Durable, weather-resistant housing Suited to indoor and outdoor usage. Rugged plastic case stands up to everyday use.
product specifications Physical Dimensions: Width: 4 inches (100 mm) Height: 9.8 inches (250 mm) Depth: 2.2 inches (55 mm) Weight: 1.3 pounds (600 g) Power: Six AA Alkaline batteries
Environment: Operating temperature: -20° C (-4° F) to +55° C (+131° F) Storage temperature: -30° C (-22° F) to +70° C (+158° F) Humidity: 93% relative humidity at 40° C Display: 128 x 64 dot-matrix, liquid crystal display (LCD) with backlight Ranges: 33 ft (10 m) 98 ft (30 m) 330 ft (1000 m) 980 ft (300 m) 3300 ft (1000 m) 9800 ft (3000 m)
Ingress Protection: Water resistant to BS2011, Part 2.1 R.IEC 68-2-18, Test Ra Cursor: Single, vertical line Resolution: 1% of range Gain: Automatic; varied across screen Pulse Amplitude: 5V nominal when unterminated Output Impedance: 25, 50, 75, and 100Ù switchable Velocity of Propagation: Adjustable from .20 to .99 Output Sockets: 2 x 4 mm on 19 mm pitch Output Pulses: 7 nsec to 2000 nsec selected according to range Distance Accuracy: ± 0.9% of range Safety: EC Compliant
Accessories: Standard: Operator’s manual, Weatherproof shoulder bag with belt loop, 6 AA batteries. Optional: Fused blocking filter test lead for live power cable to 600 VAC, 50 ohm test lead for coax cable and unenergized power cable, 75 ohm test lead for coax cable, 100 ohm test lead for twisted pair cable, BNC to F adaptor.
