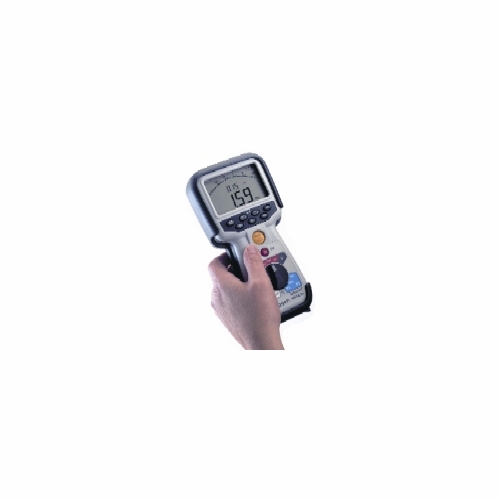

AVO/MEGGER MIT410 1000 VOLT 200 G OHMS INSULATION AND CONTINUITY MEGGER

AVO MEGGER GROUP LIMITED MIT410 1000 VOLT 200 G OHMS INSULATION AND CONTINUITY MEGGER NEW New from Megger® Industrial CAT IV insulation and continuity testers MIT400 series * Insulation testing up to 1000 V and 200 GO * Patented analog arc and dual digital display * CAT IV 600 V rating * TRMS & DC Voltage measurement * Continuity testing at 200 mA or 20 mA down to 0.01 * Pass/Fail limit alarms * PI/DAR and Timer function * Test result storage (MIT Models 420, 430, 481 and 485) * Bluetooth® wireless data transfer (MIT Models 430 and 485) * Measurement of capacitance and distance by capacitance (MIT Models 481 and 485) * User selectable test voltage in 1V increments from 10V to 100V (MIT Model 40X) * Three year product warranty * IP54 rated



One tough instrument ! Click here to watch the video ( Give it a few seconds to download. )

The MIT400 series of insulation and continuity tester offers those working in electrical engineering, the electrical supply industry and in maintenance, repair and servicing of industrial equipment and manufacturing processes the safety and comfort of a modern instrument. Designed to be quick and simple to use, all models also feature a dual digital display plus an analog arc.

They replace the well-established BM400 series insulation testers, giving greater functionality with simplified operation as well as greater application range and i ncreased safety. A key feature of the design of the tester is profile of the case making it easy to hold and use with either the right or left-hand.

CAT IV 600 V Rugged enough to withstand the toughest of on-site environments, Megger's new MIT400 series insulation testers are compact enough to allow easy one-handed operation with either hand. They also fully meet the requirements for Cat IV 600V applications, as defined by IEC61010, ensuring safe operation in all normal electrical, service, maintenance and utility applications

True RMS voltage measurement In addition to versatile insulation testing facilities, all models in the MIT400 range offer timesaving fast-response continuity testing and true RMS voltage measurement that provides accurate results even when the supply waveform is non-sinusoidal.

Multi parameter display The display shows the main parameter being measured ? for example, insulation resistance ? in both digital and as an analog arc, while the smaller secondary display shows a related parameter ? for example, insulation test voltage ? as a digital value. Users therefore save valuable time by measuring two parameters with a single test.

Flexibility is the key note For general applications, Megger offers the new MIT400 tester in four versions.

The entry level MIT400 provides insulation testing at 250V, 500V and 1000V, together with continuity testing and voltage measurement. The MIT410 adds 50V and 100V insulation tests, as well as fully automatic measurement of dielectric absorption (DAR) and polarisation index (PI), while the MIT420 provides all of the facilities of the MIT420 plus internal storage for test results. Stored results can subsequently be recalled to the screen to allow easy recording.

At the top of the range is the versatile MIT430, which not only stores test results but also allows them to be transferred to a PC via a Bluetooth wireless connection. This arrangement completely eliminates the need for data cables, and also guarantees total electrical isolation between the instrument and the PC to which the data is being transferred.

In addition to the models for general applications, Megger's new MIT400 range includes a low-voltage model, the MIT40X, with a selectable Insulation test voltage from 10V up to 100V, and three further models which are optimised for use in telecommunications applications.

All Megger MIT400-series instruments have a removable rubber over-moulding for added resilience, and all are supplied in the form of a kit, complete with test leads and a strong moulded carrying case. For added convenience and ease of use, the instruments can be stored in the case without disconnecting the test leads.

MIT400 - Basic CAT IV 600 V with 250/500/1000 Volt Insulation test MIT410 - As MIT400 plus 50 and 100 Volt insulation test and PI and DAR tests MIT420 - As MIT410 plus storage and recall MIT430 - As MIT420 with Bluetooth downloading MIT40X - Special selectable Voltages of 10-100 MIT480 - 50 V and 100 V Insulation and Continuity tester MIT481 - 50 V, 100 V, 250 V, and 1000 V Insulation and Continuity Tester with Capacitance, cable length measurement, data storage and switch probe. MIT485 - Same as Model MIT481 plus wireless Bluetooth downloading Included accessories: Set of test leads Carrying case Calibration Certificate (Not uncluded with MIT40X) Rubber boot w/stand SP5 Switched probe (Not included with MIT400 or MIT40X) Owner's information of CD
