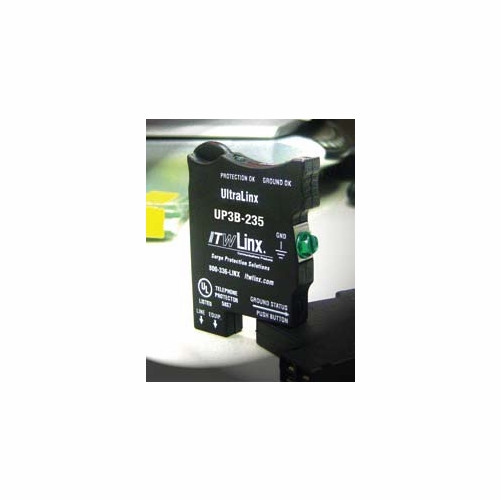

ITW LINX UP3B-235 66 BLOCK PROTECTOR WITH PRIMARY AND SECONDARY SURGE PROTECTION

ITW LINX UP3B-235 66 BLOCK PROTECTOR WITH PRIMARY AND SECONDARY SURGE PROTECTION UP3B - 66 BLOCK, UL PRIMARY / SECONDARY SURGE PROTECTORS Features: Dual Indicator Lights - Protection OK and Ground Connection OK. Solid-state Protection - Provides the fastest response. Single Pair Protection - Scale the protection to the system size. Protect only the lines requiring protection. Streamlined Installation - Eliminate redundant cross-connects by adding protection directly at the 66 Block. Press fit protectors to the block and attach the ground bar to the protectors. A Screw Ground Lug also is required. (MGBSGL-1) Sneak Current Protection - Protects against fires caused by overloads and power crosses. Cost Savings - Eliminate expensive five-pin blocks and use economical 66 Blocks. Optimum Protection - Available in a number of voltage ratings to match system operating voltages. Ideal for Retrofit Applications - Just remove the bridging clips from the block & replace them with the UltraLinx Protector, add the ground connection and the pair is protected! Lifetime Product Warranty

ORDERING INFORMATION ITW Linx Part Number Description UP3B-7.5 UL Primary and Secondary listed with 350mA fuse for voice/fax/modem lines (clamping 7.5V) UP3B-16 UL Primary and Secondary listed with 350mA fuse for voice/fax/modem lines (clamping 16V) UP3B-27 UL Primary and Secondary listed with 350mA fuse for voice/fax/modem lines (clamping 27V) UP3B-39 UL Primary and Secondary listed with 350mA fuse for voice/fax/modem lines (clamping 39V) UP3B-75 UL Primary and Secondary listed with 350mA fuse for voice/fax/modem lines (clamping 75V) UP3B-100 UL Primary and Secondary listed with 350mA fuse for voice/fax/modem lines (clamping 100V) UP3B-235 UL Primary and Secondary listed with 350mA fuse for voice/fax/modem lines (clamping 235V)
