QUABBIN 8175 5C 24T SPVC AS D PVC CHR 2464/1061 CM AWMFT4 CABLE SOLD PER 1000 FT
Available*
Item # 14577540
Model # 8175
$326.54
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.

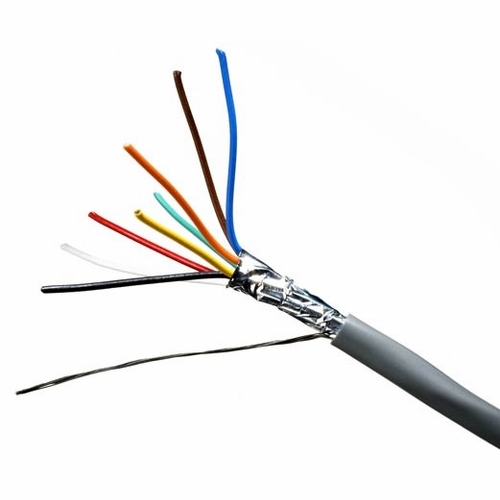

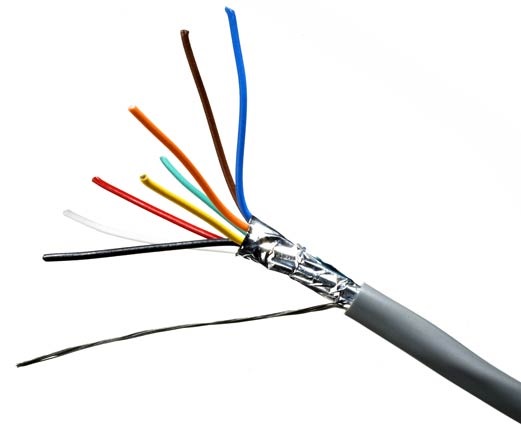

(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Cable Cont
Wire and Cable
Wire- Inside Wiring
Industrial Control Cable
Quabbin Wire And Cable Co Inc
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
QUABBIN WIRE AND CABLE 8175 5C 24T SPVC AS D PVC CHR 2464/1061 CM AWMFT4 CABLE SOLD PER 1000 FT
Quabbin Multiconductor RS-232, AWM 2464 – 24 AWG, 5 conductor, shielded, PVC, Chrome Gray
AWG: 24 Solid/Stranded: Stranded Stranded Copper: 7/32 Insulation: PVC, .010" Shield: Yes Jacket Type: PVC Jacket Color: Chrome Gray Overall Diameter: .195" Other Details: Drain
1) CONSTRUCTION: NOM. DIA.
CONDUCTOR:24 AWG 7/32 STRANDED TINNED COPPER. 024" INSULATION:SEMI-RIGID POLYVINYLCHLORIDE, .010" NOM. WALL THICKNESS .044"
CABLE:(5) INSULATED CONDUCTORS TWISTED TOGETHER WITH A CENTER FILLER TO FORM A CABLE CORE .119"
SHIELD:ALUMINIZED POLYESTER FOIL SHIELD (FOIL OUT, 100% COVERAGE) WITH A 24 AWG 7/32 STRANDED TINNED COPPER DRAIN WIRE IN CONTACT WITH THE METALIZED SURFACE FOR EASY TERMINATION. .131"
JACKET:POLYVINYLCHLORIDE, CHROME GRAY, .032" NOM. WALL THICKNESSOVERALL CABLE DIAMETER. 195"
PHYSICAL PROPERTIES: TEMPERATURE RATING, MAX. 60°C & 80°C TEMPERATURE RATING, MIN. -20°C WT./M', NOM., NET. 22.1 LBS.
ELECTRICAL CHARACTERISTICS: CAPACITANCE, MUTUAL, NOM. 33 PF/FT. CAPACITANCE, GROUNDED, NOM. 65 PF/FT. DIELECTRIC WITHSTANDING, MIN.2000V RMSVOLTAGE RATING, MAX.300VD.C. RESISTANCE, MAX. PER ASTM B286 26.2 Ù/1000
Quabbin Multiconductor RS-232, AWM 2464 – 24 AWG, 5 conductor, shielded, PVC, Chrome Gray
AWG: 24 Solid/Stranded: Stranded Stranded Copper: 7/32 Insulation: PVC, .010" Shield: Yes Jacket Type: PVC Jacket Color: Chrome Gray Overall Diameter: .195" Other Details: Drain
1) CONSTRUCTION: NOM. DIA.
CONDUCTOR:24 AWG 7/32 STRANDED TINNED COPPER. 024" INSULATION:SEMI-RIGID POLYVINYLCHLORIDE, .010" NOM. WALL THICKNESS .044"
CABLE:(5) INSULATED CONDUCTORS TWISTED TOGETHER WITH A CENTER FILLER TO FORM A CABLE CORE .119"
SHIELD:ALUMINIZED POLYESTER FOIL SHIELD (FOIL OUT, 100% COVERAGE) WITH A 24 AWG 7/32 STRANDED TINNED COPPER DRAIN WIRE IN CONTACT WITH THE METALIZED SURFACE FOR EASY TERMINATION. .131"
JACKET:POLYVINYLCHLORIDE, CHROME GRAY, .032" NOM. WALL THICKNESSOVERALL CABLE DIAMETER. 195"
PHYSICAL PROPERTIES: TEMPERATURE RATING, MAX. 60°C & 80°C TEMPERATURE RATING, MIN. -20°C WT./M', NOM., NET. 22.1 LBS.
ELECTRICAL CHARACTERISTICS: CAPACITANCE, MUTUAL, NOM. 33 PF/FT. CAPACITANCE, GROUNDED, NOM. 65 PF/FT. DIELECTRIC WITHSTANDING, MIN.2000V RMSVOLTAGE RATING, MAX.300VD.C. RESISTANCE, MAX. PER ASTM B286 26.2 Ù/1000
