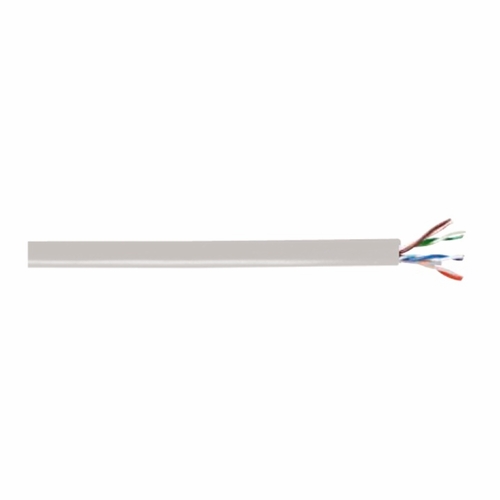

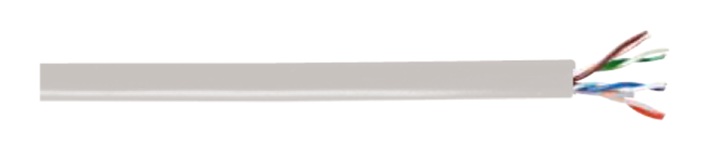

2137146E 4PR 24AWG CAT5E CMX OUTDOOR CMR GRAY POP BOX OF 1000 FT
Available*
Item # 14574500
Model # 2137146E
$174.29
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Cable Cat5
Wire and Cable
Wire- Inside Wiring
CAT 5E
Generic Manufacturer
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
2137146E 4PR 24AWG CAT5E CMX OUTDOOR CMR GRAY POP BOX OF 1000 FT NEW Features And Benefits
CMX rating allows the cable to be exposed to temperature variations for short distances from the Network Interface Device on the outside of a house to the point where the cable enters the house Sunlight-resistant
Sequential footage markings Wax box on 1000' PPCs for increased durability on the job site
Applications 1000 BASE-T (Gigabit Ethernet) 52/155 Mbps ATM 100/10 BASE-T (IEEE 802.3) 4/16 Mbps Token Ring (IEEE 802.5) T1 Voice
Standard Compliances ANSI/TIA/EIA 568 C.2 ANSI/ICEA S-100-685 NEC/CEC Type CMX OUTDOOR-CMR RoHS Compliant Directive 2002/95/EC
CONSTRUCTION
Conductors . 24 AWG solid bare annealed copper Insulation . Polyolefin Color Code . Pair 1: Blue-White/Blue . Pair 2: Orange-White/Orange . Pair 3: Green-White/Green . Pair 4: Brown-White/Brown Jacket . Flame-Retardant PVC Rip Cord . Applied longitudinally under jacket
PHYSICAL DATA
CMR (Non-Plenum) Nominal Cable Diameter (in) 0.210 Nominal Cable Weight (lbs/1000 ft) 26 Temperature Rating (C) Installation: -10 to +60 Operation: -40 to +75
PART NUMBERS Standard packaging: Pull-Pack 600' Pull-Pack 1000' Pull-Pack
Jacket Color CMR (Non-Plenum) CMR (Non-Plenum) Blue 2137160E White 2137147E Gray 2137114E 2137146E Ivory 2137113E 2137143E Beige 2137144E
Sequential footage markings Wax box on 1000' PPCs for increased durability on the job site
Applications 1000 BASE-T (Gigabit Ethernet) 52/155 Mbps ATM 100/10 BASE-T (IEEE 802.3) 4/16 Mbps Token Ring (IEEE 802.5) T1 Voice
Standard Compliances ANSI/TIA/EIA 568 C.2 ANSI/ICEA S-100-685 NEC/CEC Type CMX OUTDOOR-CMR RoHS Compliant Directive 2002/95/EC
CONSTRUCTION
Conductors . 24 AWG solid bare annealed copper Insulation . Polyolefin Color Code . Pair 1: Blue-White/Blue . Pair 2: Orange-White/Orange . Pair 3: Green-White/Green . Pair 4: Brown-White/Brown Jacket . Flame-Retardant PVC Rip Cord . Applied longitudinally under jacket
PHYSICAL DATA
CMR (Non-Plenum) Nominal Cable Diameter (in) 0.210 Nominal Cable Weight (lbs/1000 ft) 26 Temperature Rating (C) Installation: -10 to +60 Operation: -40 to +75
PART NUMBERS Standard packaging: Pull-Pack 600' Pull-Pack 1000' Pull-Pack
Jacket Color CMR (Non-Plenum) CMR (Non-Plenum) Blue 2137160E White 2137147E Gray 2137114E 2137146E Ivory 2137113E 2137143E Beige 2137144E
