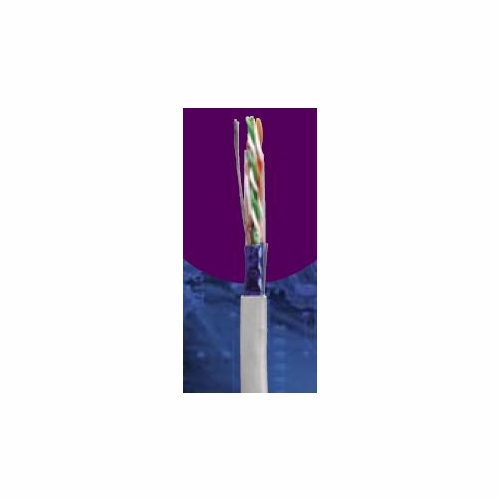

GENERAL CABLE 2133496E 4 PAIR-24 AWG CAT5E SCREENED CABLE BLUE JCKET BOX OF 1000 FT CMR
Available*
Item # 14571100
Model # 2133496E
$364.50
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Cable Cat5
Wire and Cable
Wire- Inside Wiring
Category 5
General Cable Corporation
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
GENERAL CABLE 2133496E 4 PAIR-24 AWG CAT5E SCREENED CABLE BLUE JCKET BOX OF 1000 FT NEW CMR CMR (Non-Plenum)
Jacket Color
Blue
Part Number 2133496E
CONSTRUCTION Conductors 4 pairs of 24 AWG solid bare annealed copper
Insulation Non-Plenum: Polyolefin (O.D.=0.0405") Color Code Pair 1: Blue-White/Blue Pair 2: Orange-White/Orange Pair 3: Green-White/Green Pair 4: Brown-White/Brown
Core Tape Polyester
Drain Wire 24 AWG stranded (7/32) solid tinned copper
Shield Polyester-backed aluminum foil (aluminum side in)
Jacket Flame-retardant PVC, Sequential footage markings, Non-Plenum: O.D. = 0.250 inches Weight = 36 lbs/Kft
Packaging 1000' reel
Electrical Characteristics DC Resistance (max) 9.38Ohms/100m (328ft) @ 20°CMutual Capacitance (nom) 14pF/ft @ 1 kHzCharacteristic Impedance OhmsFrequency (f): 1.0 - 100 MHz 100 ± 15Delay Skew (max) 45ns/100mNom. Velocity of Propagation (NVP) CMR 70% Speed of Light CMP 72Propagation Delay (max) 538ns @ 100 MHzConductors
Part Number 2133496E
CONSTRUCTION Conductors 4 pairs of 24 AWG solid bare annealed copper
Insulation Non-Plenum: Polyolefin (O.D.=0.0405") Color Code Pair 1: Blue-White/Blue Pair 2: Orange-White/Orange Pair 3: Green-White/Green Pair 4: Brown-White/Brown
Core Tape Polyester
Drain Wire 24 AWG stranded (7/32) solid tinned copper
Shield Polyester-backed aluminum foil (aluminum side in)
Jacket Flame-retardant PVC, Sequential footage markings, Non-Plenum: O.D. = 0.250 inches Weight = 36 lbs/Kft
Packaging 1000' reel
Electrical Characteristics DC Resistance (max) 9.38Ohms/100m (328ft) @ 20°CMutual Capacitance (nom) 14pF/ft @ 1 kHzCharacteristic Impedance OhmsFrequency (f): 1.0 - 100 MHz 100 ± 15Delay Skew (max) 45ns/100mNom. Velocity of Propagation (NVP) CMR 70% Speed of Light CMP 72Propagation Delay (max) 538ns @ 100 MHzConductors
