Product Description

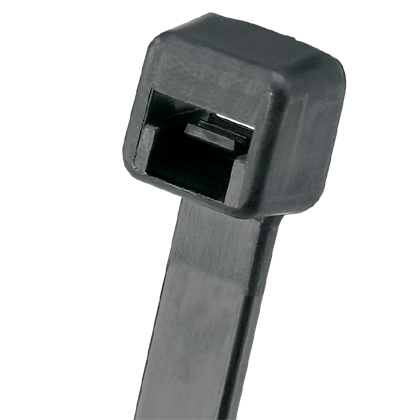

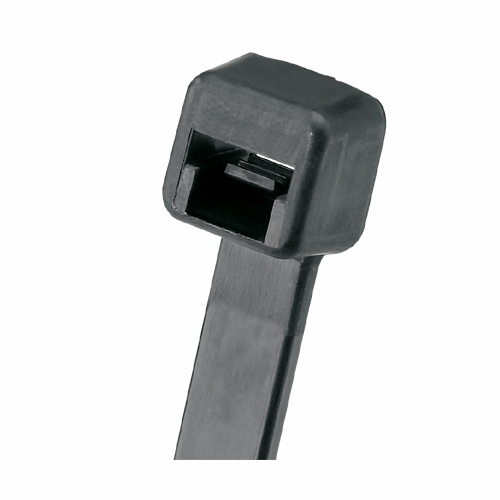

PANDUIT PAN-TY PLT4S-C0 14 1/2 BLACK TIES PACK OF 100 NEW Greater resistance to damage caused by ultraviolet light – indoor or outdoor use Versatile cable ties can be used in countless applications One-piece construction for consistent performance and reliability Lowest threading force of any one-piece cable tie in the industry Curved tip on Standard cross section is easy to pick up from flat surfaces and allows faster initial threading to speed installation. Light-Heavy and Heavy cross section is a straight tip design
Part Number: PLT4S-C0
Product Family: Pan-Ty® Weather Resistant Cable Ties - Standard, Light-Heavy, Heavy
Product Line: Nylon Cable Ties
RoHS Compliancy Status: Compliant
Part Description: Cable Tie, 14.5", Standard cross section
Product Type: Cable Ties
Material: Weather Resistant Nylon 6.6
Color: Black
CSA Certified: Yes
UL Listed (File #E56854): Yes
UL Recognized (File #E56854): Yes
Length (In.): 14.5
Length (mm): 368
Width (In.): .190
Width (mm): 4.8
CE Compliant: Yes
Cross Section: Standard
Head Height (In.): .220
Head Height (mm): 5.6
Head Width (In.): .337
Head Width (mm): 8.6
Locking Style: Locking
Material Flammability Rating: UL94V-2
Max. Bundle Diameter (In.): 4.00
Max. Bundle Diameter (mm): 102
Max. Continuous Use Temperature: 185°F (85°C)
Min. Loop Tensile Strength (Lbs.): 50
Min. Loop Tensile Strength (N): 222
Product Family: Pan-Ty® Weather Resistant Cable Ties - Standard, Light-Heavy, Heavy
Record Type: Products
Std. Pkg. UOM: PK
Thickness (In.): .052
hickness (mm): 1.3
ool: GTS, GTSL, GS2B, GTH, GS4H, PTS, PTH, PPTS, STS2, STH2
UOM: PC
Std. Pkg. Qty.: 100
Min. Order Qty.: 100
