TYCO DT2-XCP-06NC00F-DX2-5RAA 6-PAIR PLASTIC CROSS CONNECT POLE MOUNT TERMINAL C91639-000mustorder10
Available*
Item # 13700000
Model # DT2-XCP-06NC00F
$101.25
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Terminals
Material and Supplies
Building Entrance Terminals- Pedestal
Closures Pedestal Style
Tyco Telecommunications
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
TYCO TELECOMMUNICATIONS (COMMSCOPE)DT2-XCP-06NC00F-DX2-5RAA 6-PAIR PLASTIC CROSS CONNECT POLE MOUNT TERMINAL C91639-00 ***MUST ORDER IN QUANTITIES OF 10***

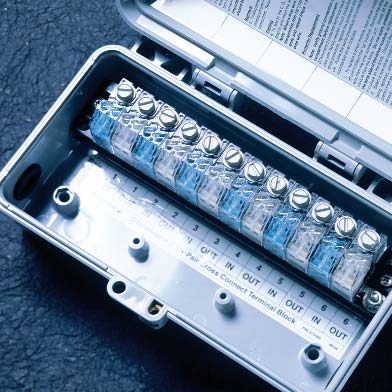

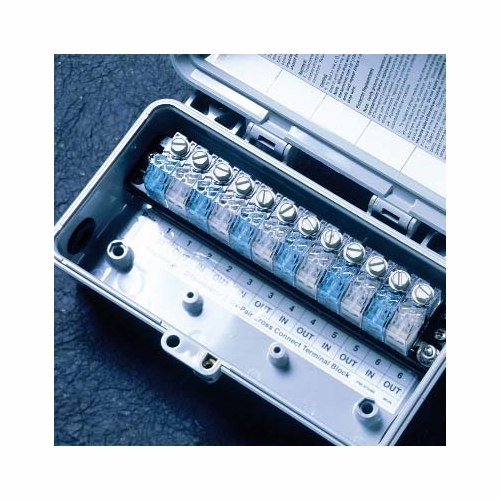

The DTerminator 2 XCX/XCP pole, strand or wall mount closure terminal is intended for new construction and rehabilitation, providing mechanical strength, security, and environmental protection for your connection. The kit consists of two main components: a plastic housing and a ADTerminator 2 6-pair cross connect block. TYCO TELECOMMUNICATIONS (COMMSCOPE)Electronics’ unique IIDC (inverted insulation displacement connector) accommodates 1.02 - 51mm (18-24 AWG) subscriber wires without stripping the insulation or using special tools. Wires can be connected and disconnected many times, even after prolonged exposure to extreme temperatures. The DTerminator 2 XCX upgradable terminal block includes a ground strip. Although it is an unprotected model, the driver modules can be easily replaced in the field with protected driver modules, by replacing pairs marked T1R, T2R, etc., saving unnecessary initial cost. The DTerminator 2 XCP protected terminal block contains driver modules with factory-sealed circuit protectors. Each connection is protected by three-element gas discharge tube.
Product Information TYCO TELECOMMUNICATIONS (COMMSCOPE)Electronics’ unique IIDC (inverted insulation displacement connector) accommodates 18 - 24 (1.02 - .51 mm) AWG drop wires without stripping or special tools. TYCO TELECOMMUNICATIONS (COMMSCOPE)Electronics’ GelGuard gel sealing technology provides superior performance and is specifically formulated for environmentally demanding terminal applications. An audible click indicates when the driver is properly seated for wire insertion. A single bolt terminates each pair into a driver module through which the connection is visible. A single drop wire port further simplifies installation by eliminating the chance of placing the drop wire in the wrong port. Gel-protected test ports in the top of each driver module facilitate fast, easy testing with standard test clips. DTerminator 2 terminal blocks and plastic housings are UL Listed. Protected and unprotected blocks of the same pair count are the same size, leaving plenty of room to store wirework in the compact housings. DTerminator 2 terminal connections can be re-entered and re-sealed many times, even after prolonged exposure to temperature extremes. Special circuit markers are available for easy identification of special lines. Molded into the housing, side-entry grommets provide built-in strain relief and can accommodate multi-pair drop wire. DTerminator 2 terminal products are compliant with Telcordia specification TR-NWT-000975 and TR-NWT-001305.
C91639-000 DT2-XCP-06 NC00F-DX25F
***MUST ORDER IN QUANTITIES OF 10***
The DTerminator 2 XCX/XCP pole, strand or wall mount closure terminal is intended for new construction and rehabilitation, providing mechanical strength, security, and environmental protection for your connection. The kit consists of two main components: a plastic housing and a ADTerminator 2 6-pair cross connect block. TYCO TELECOMMUNICATIONS (COMMSCOPE)Electronics’ unique IIDC (inverted insulation displacement connector) accommodates 1.02 - 51mm (18-24 AWG) subscriber wires without stripping the insulation or using special tools. Wires can be connected and disconnected many times, even after prolonged exposure to extreme temperatures. The DTerminator 2 XCX upgradable terminal block includes a ground strip. Although it is an unprotected model, the driver modules can be easily replaced in the field with protected driver modules, by replacing pairs marked T1R, T2R, etc., saving unnecessary initial cost. The DTerminator 2 XCP protected terminal block contains driver modules with factory-sealed circuit protectors. Each connection is protected by three-element gas discharge tube.
Product Information TYCO TELECOMMUNICATIONS (COMMSCOPE)Electronics’ unique IIDC (inverted insulation displacement connector) accommodates 18 - 24 (1.02 - .51 mm) AWG drop wires without stripping or special tools. TYCO TELECOMMUNICATIONS (COMMSCOPE)Electronics’ GelGuard gel sealing technology provides superior performance and is specifically formulated for environmentally demanding terminal applications. An audible click indicates when the driver is properly seated for wire insertion. A single bolt terminates each pair into a driver module through which the connection is visible. A single drop wire port further simplifies installation by eliminating the chance of placing the drop wire in the wrong port. Gel-protected test ports in the top of each driver module facilitate fast, easy testing with standard test clips. DTerminator 2 terminal blocks and plastic housings are UL Listed. Protected and unprotected blocks of the same pair count are the same size, leaving plenty of room to store wirework in the compact housings. DTerminator 2 terminal connections can be re-entered and re-sealed many times, even after prolonged exposure to temperature extremes. Special circuit markers are available for easy identification of special lines. Molded into the housing, side-entry grommets provide built-in strain relief and can accommodate multi-pair drop wire. DTerminator 2 terminal products are compliant with Telcordia specification TR-NWT-000975 and TR-NWT-001305.
C91639-000 DT2-XCP-06 NC00F-DX25F
***MUST ORDER IN QUANTITIES OF 10***
