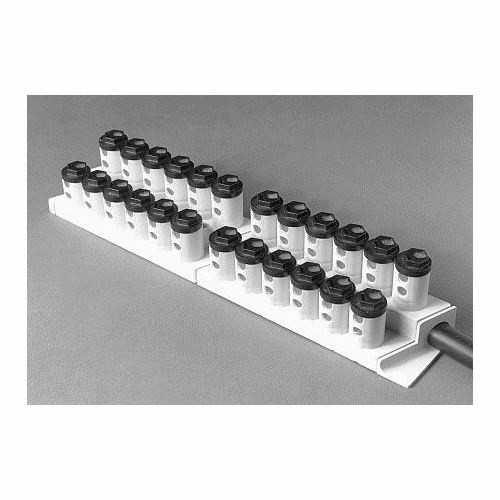

Amp 775129-3 6 Pair Quiet Front Terminal, Stubbed,
Available*
Item # 13484950
Model # 775129-3 6
$63.00
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
TERMINALS
Material and Supplies
Building Entrance Terminals- Pedestal
Closures Pedestal Style
TYCO TELECOMMUNICATIONS
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

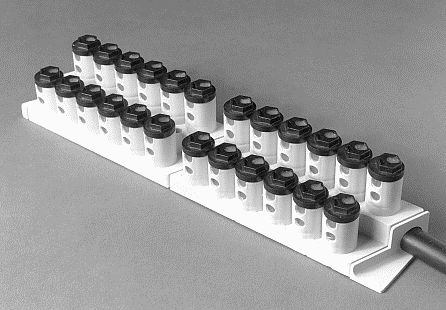

Amp 775129-3 6 Pair Quiet Front Terminal, Stubbed, 6 Pair In-Line Quiet Front Terminal, Gel Filled With 4 Foot Aircore Stub.
Product Facts Terminal Lugs And Housing, Made Of Nonconductive Material, Provide A "Quiet Front" Terminal Terminates Industry Standard 18.5 Awg [1.02 Mm] And 22-24 Awg [0.65-0.50 Mm] In All Wire Entry Ports Two Conductors May Be Terminated At Each Post Allowing Jumpers And Party Lines Low-Force Insulation Displacement, Featuring The Silent Slot Contact Design, Eliminates The Danger Of Wire Nicking Or Cutting During Termination Tin Plated Copper Alloy Contacts Are Environmentally Protected With Grease Or Gel Sealant Grease Sealant Is Field Replaceable Uses Industry Standard 216C Hand Tool Craft Friendly Design Allows For Quick ¼ Turn Termination Durable Terminal Lug Withstands 30-In.-Lb. Torque With Either One Or Two Conductors Of Any Gauge Combination Red Or Black Replaceable Lugs Available For Special Service Markers Terminal Lug Test Port Provides Easy Access For Line Testing Without Service Termination Available With Either Air Core, Filled, Or Shielded Filled Stub Cable Available In 5-, 6-, 10-, 12-, 15-, 16- And 25-Pair Configurations Mounts In Most Industry Standard Pedestals Rear Exit Versions Available For Aerial Terminal Applications Ideally Suited For All Terminal Applications Listed By Underwriters Laboratories, Inc. As A Communications Circuit Accessory, Non-Protected File No. E81956, Protected File No. E150826 Certified By Canadian Standards Association, File No. Lr 88328-1 Description The Amp Quiet Front Terminal Block Is The Latest Development In Outside Plant Interconnection Technology. The Blocks Are Designed To Connect Telephone Distribution Lines With Individual Drop Wires.
These Blocks Are Capable Of Terminating 18.5 Awg [1.02 Mm] And 22-24 Awg [0.65-0.50 Mm] Wires. The Block Will Terminate Two Wires Of Either Size At Each Post. The Use Of A New User-Friendly, Rotary, Insulation Displacement Design Provides Precise Termination In One-Quarter Turn Of The Lug. The Contact Design Also Protects The Drop Wires From Nicks During The Termination Process.
The Design Of The Block Gives "Quiet Block" Performance Through Environmental Protection From Corrosion, Sprays, Moisture, And Insects.
The Replaceable Lugs (Available In Red Or Black) Provide A Fast Inexpensive Means Of Field Repair For Overtorqued Posts As Well As A Means Of Identifying Special Service Circuits.
Product Facts Terminal Lugs And Housing, Made Of Nonconductive Material, Provide A "Quiet Front" Terminal Terminates Industry Standard 18.5 Awg [1.02 Mm] And 22-24 Awg [0.65-0.50 Mm] In All Wire Entry Ports Two Conductors May Be Terminated At Each Post Allowing Jumpers And Party Lines Low-Force Insulation Displacement, Featuring The Silent Slot Contact Design, Eliminates The Danger Of Wire Nicking Or Cutting During Termination Tin Plated Copper Alloy Contacts Are Environmentally Protected With Grease Or Gel Sealant Grease Sealant Is Field Replaceable Uses Industry Standard 216C Hand Tool Craft Friendly Design Allows For Quick ¼ Turn Termination Durable Terminal Lug Withstands 30-In.-Lb. Torque With Either One Or Two Conductors Of Any Gauge Combination Red Or Black Replaceable Lugs Available For Special Service Markers Terminal Lug Test Port Provides Easy Access For Line Testing Without Service Termination Available With Either Air Core, Filled, Or Shielded Filled Stub Cable Available In 5-, 6-, 10-, 12-, 15-, 16- And 25-Pair Configurations Mounts In Most Industry Standard Pedestals Rear Exit Versions Available For Aerial Terminal Applications Ideally Suited For All Terminal Applications Listed By Underwriters Laboratories, Inc. As A Communications Circuit Accessory, Non-Protected File No. E81956, Protected File No. E150826 Certified By Canadian Standards Association, File No. Lr 88328-1 Description The Amp Quiet Front Terminal Block Is The Latest Development In Outside Plant Interconnection Technology. The Blocks Are Designed To Connect Telephone Distribution Lines With Individual Drop Wires.
These Blocks Are Capable Of Terminating 18.5 Awg [1.02 Mm] And 22-24 Awg [0.65-0.50 Mm] Wires. The Block Will Terminate Two Wires Of Either Size At Each Post. The Use Of A New User-Friendly, Rotary, Insulation Displacement Design Provides Precise Termination In One-Quarter Turn Of The Lug. The Contact Design Also Protects The Drop Wires From Nicks During The Termination Process.
The Design Of The Block Gives "Quiet Block" Performance Through Environmental Protection From Corrosion, Sprays, Moisture, And Insects.
The Replaceable Lugs (Available In Red Or Black) Provide A Fast Inexpensive Means Of Field Repair For Overtorqued Posts As Well As A Means Of Identifying Special Service Circuits.
