We 108A1B-16 16Pr 100 747 591 Strand Mount Terminal

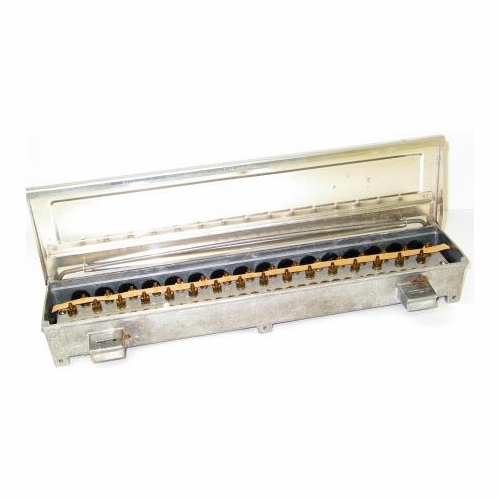

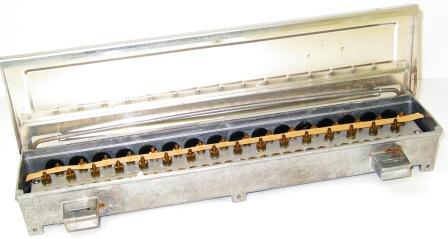

We 108A1B-16 16Pr 100 747 591 Strand Mount Terminal New Used With Multiple-Line Wire The 108 Wire Terminal Mounts On The Strand Of An Aerial Cable Or On The Support Wire Of Multiple-Line Wire. It Also Contains An External Ground Clamp For Bonding To The Strand Or Support Wire. The Terminals May Be Mounted On A Pole Or Crossarm By Using A 45A Bracket Which Must Be Ordered Seperately.

The 108A1B-16 Terminal Contains 2A1B Carbon Protector Units Providing 800-Volt Capable Protection. There Are 16 Flexible Grommets Included For Drop Wire Entry.

Features A 16-Pair Cast-Resin Terminal Block Mounted In A Cast Aluminum Housing. Hinged Cover Is Provided.

108A1-16B Is 18.7 Inches Long X 5 Inches Height X 3.6 Inches Wide Comcode 100 747 591Read More
