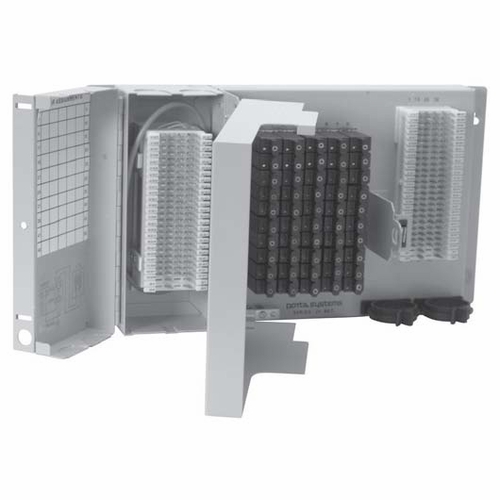

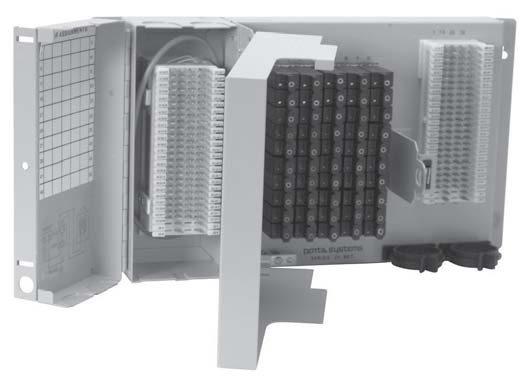

PORTA 24050-66-M66C 50PR 66/66 BUILDING ENTRANCE TERMINAL W/O MODULES
Available*
Item # 12847500
Model # 24050-66-M66C
$341.77
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Terminals
Material and Supplies
Building Entrance Terminals- Pedestal
50 Pair
Porta Systems
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
PORTA SYSTEM 24050-66-M66C 50PR 66/66 BUILDING ENTRANCE TERMINAL W/O MODULES NEW FEATURES & BENEFITS
. UL 497 Listed for primary and secondary
protection
. 66 input and output
. Available with a variety of termination choices, and in
25, 50 and 100-pair configurations
. Manufactured from 18 gauge, epoxy powder coated
steel
. Splice chamber for input cable
. Optional cover over protector and output field
. Uses industry standard 5-pin protector modules
. Available with factory installed protector modules for
every application from 7.5V to 400V
. AQL Incoming Inspection Process
. ISO 9001:2000 registered facility
. Operating Temperature: -13¢ªF to 149¢ªF
(-25¢ªC to 65¢ªC)
ORDERING INFORMATION Model# Pair Count Input Output Modules Module Model# Cover 24050-66-M66 50 66 66 None NA No 24050-66-M66P 50 66 66 230V Gas Tube 175BCXN-230 No 24050-66-M66C 50 66 66 None NA Yes 24050-66-M66PC 50 66 66 230V Gas Tube 175BCXN-230 Yes 24050-66-M66PS 50 66 66 240V Solid State 115SCN-240 No 24050-66-M66PCS 50 66 66 240V Solid State 115SCN-240 Yes
ORDERING INFORMATION Model# Pair Count Input Output Modules Module Model# Cover 24050-66-M66 50 66 66 None NA No 24050-66-M66P 50 66 66 230V Gas Tube 175BCXN-230 No 24050-66-M66C 50 66 66 None NA Yes 24050-66-M66PC 50 66 66 230V Gas Tube 175BCXN-230 Yes 24050-66-M66PS 50 66 66 240V Solid State 115SCN-240 No 24050-66-M66PCS 50 66 66 240V Solid State 115SCN-240 Yes
