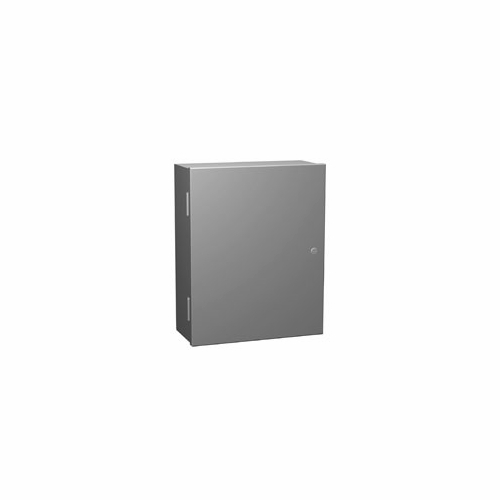

Hammond Manufacturing N1A36247 Nema Box 36X24X7 Empty Steel

Hammond Manufacturing N1A36247 Nema Box 36X24X7 Empty Steel New N1A Series Panel Enclosure Non-Ventilated - Nema 1 << Product Information << Commercial Enclosures <<











Application

" Designed For Indoor Use To House Controls, Instruments And Components Not Requiring Oil-Tight Or Dust-Tight Protection.

Standards " Ul 50 Type 1 " Csa Type 1 " Complies With O Nema Type 1 O Iec 60529, Ip20

Construction " Enclosure Is Formed And Spot Welded From 12 Or 14 Gauge Steel. " Removable 12 Or 14 Gauge Inner Panel Is Mounted In The Rear Of The Enclosure On Collar Studs. " Removable Door Is Mounted On Slip Hinges. " Door Is Fastened With A Slotted Quarter Turn Latch; Doors 30" And Higher Are Provided With Two Latches. " A Bonding Stud Is Provided On The Door And A Grounding Stud Is Provided In The Box. " Mounting Holes Are Provided In The Rear Of The Enclosure. " Piano Hinge On 12 Gauge Units.

Finish " Enclosure And Door Are Finished In Ansi 61 Gray Powder Coating. " Inner Panel Is Finished In White Powder Coating.Read More
