CHARLES BDO6-EG 12 inch PEDESTAL
Available*
Item # 11184825
Model # BDO6-EG
$225.15
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Pedestals
Material and Supplies
Closures
Closures Pedestal Style
Charles Industries Ltd
Pedestal Enclosures
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

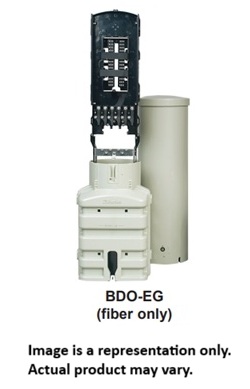

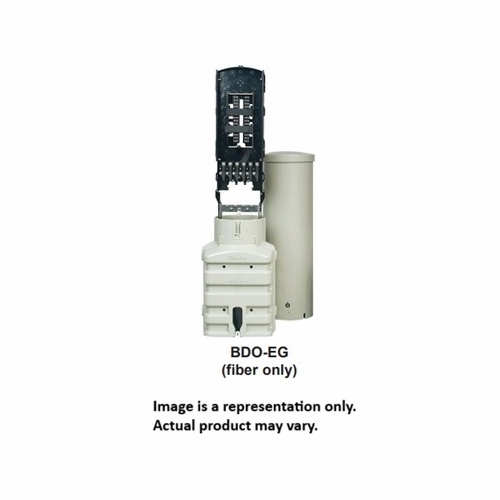

CHARLES BDO 6-EG 12" PEDESTAL
CHARLES BDO 6-EG 12" PEDESTAL
Part # BDO 6-EG 12" dia. pedestal, expanded-capacity split base, G bracket (fiber only), bond bar
Add a "T" suffix to part number to include a 4"x9" splice tray (Example: BDO205-EGT) Add a "V" after "E" of part number for vault mount base & hardware (Example: BDO 6-EVG)
Diameter 12" Drop Quantity 24 Splitters (Tray) 1x4, 1x8 or 1x16 12 Fiber Ribbon Storage (Opening 12ft ± 2ft) 72 Ribbons Loose Tube Storage (Opening 12ft ± 2ft) 32 Tubes Splice Tray Cap. 9 (4" x 9") or 8 (6" x 15") Max. Splice Cap. - 12 Fibers per Tray 108 Max. Splice Cap. - 24 Fibers per Tray 216 Max. Splice Cap. - 48 Fibers per Tray 384 Max. Splice Cap. - 144 FOSC A/B Fiber Ribbon Tray ** 576 Notes: ** Capacities shown achieved using FOSC A/B Ribbon Fiber Tray(s).
CHARLES BDO 6-EG 12" PEDESTAL
Part # BDO 6-EG 12" dia. pedestal, expanded-capacity split base, G bracket (fiber only), bond bar
Add a "T" suffix to part number to include a 4"x9" splice tray (Example: BDO205-EGT) Add a "V" after "E" of part number for vault mount base & hardware (Example: BDO 6-EVG)
Diameter 12" Drop Quantity 24 Splitters (Tray) 1x4, 1x8 or 1x16 12 Fiber Ribbon Storage (Opening 12ft ± 2ft) 72 Ribbons Loose Tube Storage (Opening 12ft ± 2ft) 32 Tubes Splice Tray Cap. 9 (4" x 9") or 8 (6" x 15") Max. Splice Cap. - 12 Fibers per Tray 108 Max. Splice Cap. - 24 Fibers per Tray 216 Max. Splice Cap. - 48 Fibers per Tray 384 Max. Splice Cap. - 144 FOSC A/B Fiber Ribbon Tray ** 576 Notes: ** Capacities shown achieved using FOSC A/B Ribbon Fiber Tray(s).
