CIRCA 1356 350V Gas Station Protector
Available*
Item # 10953840
Model # 801002
$7.65
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Nids
Material and Supplies
Network Interface Device- NIDS
Network Interface Device
Circa Telecom USA Inc
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

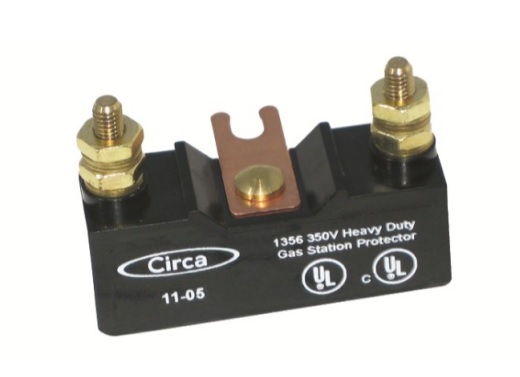

CIRCA TELECOM 1356 350V Gas Station Protector 801002

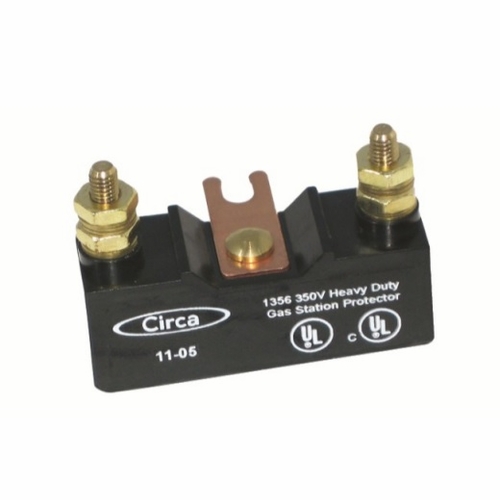

CIRCA 1356 350V Gas Station Protector
Model # 1356-350 Order # 801002 Breakdown Voltage 350VDC Dimensions (H x W x D) 1.2 x 2.25 x 1.5 inches
The model 1356 gas station protector is designed to provide heavy duty transient and power fault protection for most standard telephone line applications. The common chamber, 3 electrode gas tube provides true balanced operation. An overvoltage on either side of the circuit causes the entire tube to ionize and grounds both sides of the circuit simultaneously. This simultaneous grounding prevents a second arriving transient on the opposite side to pass through the equipment as may happen with 2 element configurations. This bala balanced configuration provides the best possible protection against line to line metallic surges where the transient on one side slightly lags the other.Nominal breakdown voltage for the model 1356 is 350VDC.
Features: • Heavy duty surge handling capability • Modular, industry standard design • Superior common chamber design • Balanced operation • UL listed
CIRCA 1356 350V Gas Station Protector
Model # 1356-350 Order # 801002 Breakdown Voltage 350VDC Dimensions (H x W x D) 1.2 x 2.25 x 1.5 inches
The model 1356 gas station protector is designed to provide heavy duty transient and power fault protection for most standard telephone line applications. The common chamber, 3 electrode gas tube provides true balanced operation. An overvoltage on either side of the circuit causes the entire tube to ionize and grounds both sides of the circuit simultaneously. This simultaneous grounding prevents a second arriving transient on the opposite side to pass through the equipment as may happen with 2 element configurations. This bala balanced configuration provides the best possible protection against line to line metallic surges where the transient on one side slightly lags the other.Nominal breakdown voltage for the model 1356 is 350VDC.
Features: • Heavy duty surge handling capability • Modular, industry standard design • Superior common chamber design • Balanced operation • UL listed
