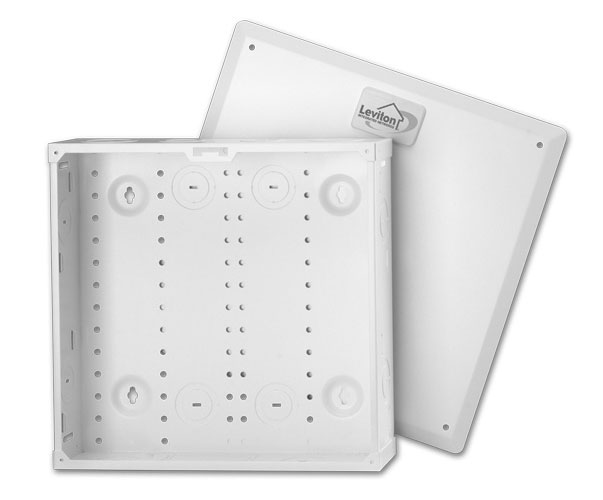

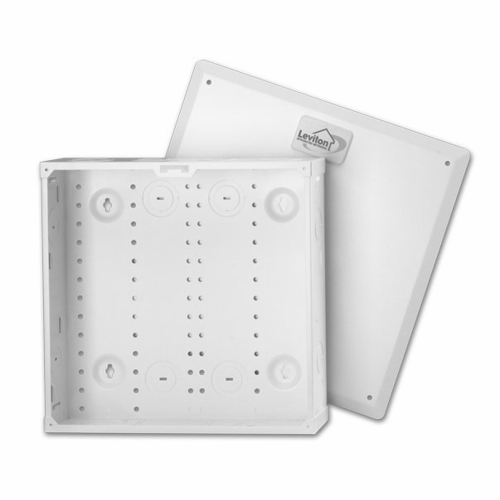

LEVITON 47605-14W BOX WHITE SMC-140 NEW
APPLICATION Leviton’s new Series 140 Structured Media™ enclosure (SMC) makes running cable and managing media both simple and more cost-effective. Designed to provide a central distribution point for all your home or small office technologies, the enclosure accommodates networking, fax, Internet, DSL and cable.
FEATURES & BENEFITS Cutout pattern in bottom accommodates all of the same AC power modules and DC power supplies as the 28” and 42” SMCs Mounting slots on the enclosure simplify adjustment for different sheetrock depths Sheetrock depth marks (1/2”, 5/8” and 3/4”) on the enclosure simplify alignment Lance slots provide clean cable management within the enclosure Product may be surface- or recess-mounted Hinged Cover (Cat. No. 47605-14D) and Flush Mount Cover (Cat. No. 47605-14C) are designed for used with Series 140 Structured Media enclosures (Cat. Nos. 47605-140 & 47605-14E ONLY) Flush-mount cover overlaps 3/4” to hide possible uneven drywall cuts around the SMC Ships with a cardboard insert to help prevent drywall debris or paint over-spray from entering the SMC during the rough-in stage of installation Mounting hook on the cover aligns screw holes for easier installation Multiple knockouts on the top and bottom support conduit up to 2“ in diameter and facilitate cable routing and entry Self-healing foam grommets protect cable bundles
TYPICAL SPECIFICATION The Series 140 Structured Media™ enclosure shall be a one-piece (excluding cover) box, made of 20-gauge, white powder-coated steel. It shall flush mount with four wood screws (provided) on standard 16” center wall studs prior to drywall, or surface mount after drywall installation. The enclosure shall have a cutout to accommodate a single-gang J-Box power module, AC power module, or a Mini or Universal DC power supply. The enclosure shall include multiple knockouts on the top and bottom to support conduit up to 2“ in diameter and facilitate cable routing and entry. The Series 140 Structured Media enclosure shall meet all applicable standards: be cULus and ACA listed, UL listed for fire and burglary systems, comply with all TIA/EIA-568-A and TIA/EIA-570-B requirements and meet FCC part 68. The manufacturer shall provide a two-year limited product warranty. Product and performance warranties are extended to 20 years if installed as part of a Leviton Integrated Networks Certified System.
STANDARDS COMPLIANCE cULus and ACA listed Complies with all TIA/EIA 568-A and TIA/EIA 570-B requirements Meets FCC part 68 UL Listed for fire and alarm systems
PHYSICAL SPECIFICATIONS Materials: Enclosure: 20-gauge, white powder-coated steel Cover: 18-gauge, white powder-coated steel Dimensions: Enclosure: 14.13” H x 14.3” W x 3.63” D Cover: 15.32” H x 15.62” W x 0.20˝ D Capacity: Maximum of two full-sized distribution panels
APPLICATION Leviton’s new Series 140 Structured Media™ enclosure (SMC) makes running cable and managing media both simple and more cost-effective. Designed to provide a central distribution point for all your home or small office technologies, the enclosure accommodates networking, fax, Internet, DSL and cable.
FEATURES & BENEFITS Cutout pattern in bottom accommodates all of the same AC power modules and DC power supplies as the 28” and 42” SMCs Mounting slots on the enclosure simplify adjustment for different sheetrock depths Sheetrock depth marks (1/2”, 5/8” and 3/4”) on the enclosure simplify alignment Lance slots provide clean cable management within the enclosure Product may be surface- or recess-mounted Hinged Cover (Cat. No. 47605-14D) and Flush Mount Cover (Cat. No. 47605-14C) are designed for used with Series 140 Structured Media enclosures (Cat. Nos. 47605-140 & 47605-14E ONLY) Flush-mount cover overlaps 3/4” to hide possible uneven drywall cuts around the SMC Ships with a cardboard insert to help prevent drywall debris or paint over-spray from entering the SMC during the rough-in stage of installation Mounting hook on the cover aligns screw holes for easier installation Multiple knockouts on the top and bottom support conduit up to 2“ in diameter and facilitate cable routing and entry Self-healing foam grommets protect cable bundles
TYPICAL SPECIFICATION The Series 140 Structured Media™ enclosure shall be a one-piece (excluding cover) box, made of 20-gauge, white powder-coated steel. It shall flush mount with four wood screws (provided) on standard 16” center wall studs prior to drywall, or surface mount after drywall installation. The enclosure shall have a cutout to accommodate a single-gang J-Box power module, AC power module, or a Mini or Universal DC power supply. The enclosure shall include multiple knockouts on the top and bottom to support conduit up to 2“ in diameter and facilitate cable routing and entry. The Series 140 Structured Media enclosure shall meet all applicable standards: be cULus and ACA listed, UL listed for fire and burglary systems, comply with all TIA/EIA-568-A and TIA/EIA-570-B requirements and meet FCC part 68. The manufacturer shall provide a two-year limited product warranty. Product and performance warranties are extended to 20 years if installed as part of a Leviton Integrated Networks Certified System.
STANDARDS COMPLIANCE cULus and ACA listed Complies with all TIA/EIA 568-A and TIA/EIA 570-B requirements Meets FCC part 68 UL Listed for fire and alarm systems
PHYSICAL SPECIFICATIONS Materials: Enclosure: 20-gauge, white powder-coated steel Cover: 18-gauge, white powder-coated steel Dimensions: Enclosure: 14.13” H x 14.3” W x 3.63” D Cover: 15.32” H x 15.62” W x 0.20˝ D Capacity: Maximum of two full-sized distribution panels
