Product Description
Klein 51611 1/2-Inch Angle Setter� 092644516115 New
Klein 51611 1/2-Inch Angle Setter�
092644516115 New
P/N 51611
1/2-Inch Angle Setter�
Upc 092644516115
Klein�S Unique Angle Setter� Technology For Quick, Accurate Repeated Bends Saving Time On The Job (Patent Pending)
Made In The Usa Angle Setters Create A Hard Stop For Fast, Accurate Bending
Movable For Four Different Bend Angles: 10-Degree, 22.5-Degree, 30-Degree, 45-Degree (Adjusted For Conduit Spring Back)

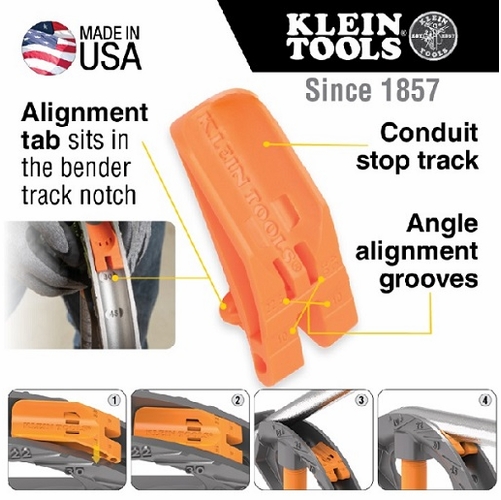

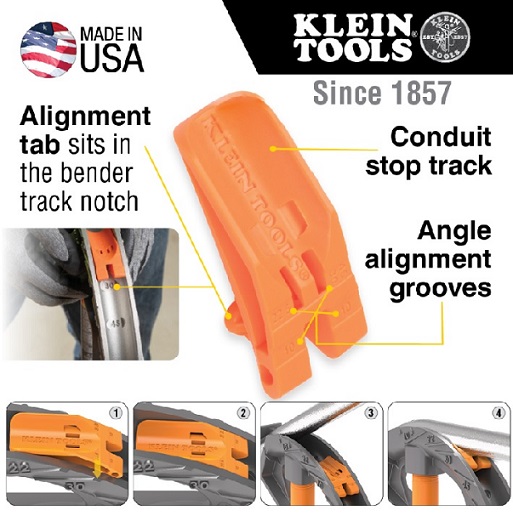

Align The Angle Lines On The Angle Setter With The Bender, Ensure The Alignment Tabs Are Fully Seated In The Bender Track Notches, Press The Angle Setter Firmly Into Place
Conduit Insets Into Bender Head, Bend As Usual Until The Conduit Makes Contact With The Setter
Compatible With Klein Tools' 1/2-Inch Aluminum Conduit Bender (Cat. No. 51606)
Also Available In 3/4-Inch (Cat. No. 51612) And 1-Inch (Cat. No. 51613)
Specifications
Type: Angle Setter�
Application: Angle Setter� For Klein Conduit Benders
Special Features: Patent Pending Technology
Overall Length: 1.8'' (4.6 Cm)
Overall Height: 0.9'' (2.2 Cm)
Overall Width: 0.8'' (2.0 Cm)
Material: Delrin� Plastic
Thinwall/Emt: 1/2'' (1.3 Cm)
Conduit Size: 1/2''
Marking: 10�, 22.5�, 30�, 45�
For Use With: Conduit Benders Cat. Nos. 51603, 51606; Conduit Bender Head Cat. No. 51608
Weight: 1.2 Oz (34 G)
Upc: 092644516115
Warnings
Always Wear Approved Eye Protection.
Use A Safe Work Position To Avoid Loss Of Balance.Read More
