Product Description

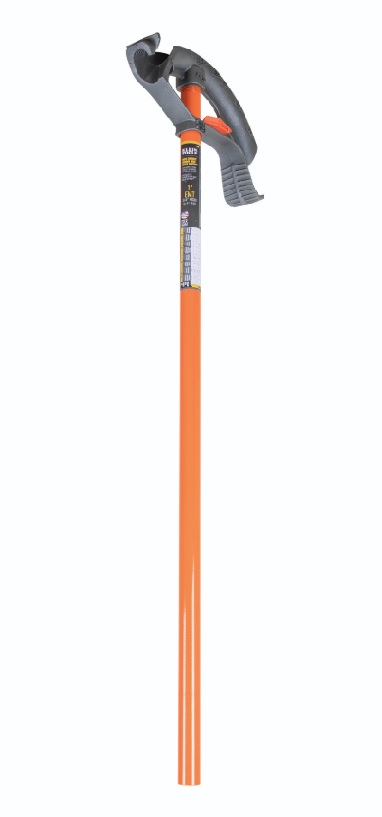

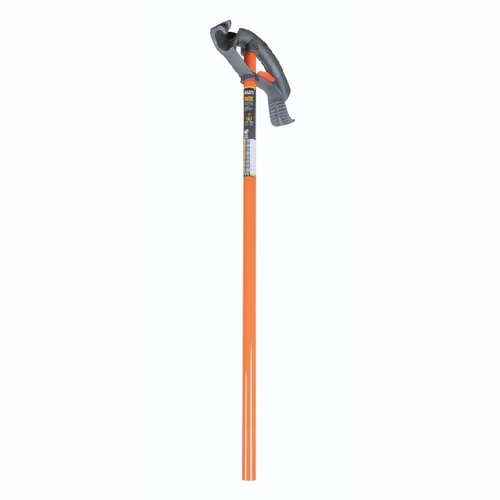

Klein 51605 Iron Conduit Bender Full Assembly, 1 Inch Emt With Angle Setter� 092644516054 New
Klein 51605 Iron Conduit Bender Full Assembly, 1 Inch Emt
With Angle Setter� 092644516054 New
P/N 51605
Iron Conduit Bender Full Assembly
1 Inch Emt
With Angle Setter�
Upc 092644516054
1-Inch Assembled Iron Bender Includes Klein�S Unique Angle Setter� Technology For Time-Saving, Repeated Accurate Bends; Patent Pending Angle Setter� For Use On 10-, 22.5-, 30-, And 45-Degree Bends (Adjusted For Conduit Spring Back)
Heavy Duty Cast Ductile Iron Has The Durability Needed On The Job Site
Bold Cast Markings And Symbols Make For Fast, Easy Conduit Alignment To Make All Bend Types, Including Saddle And Back-To-Back Bends
Wide Foot Pedal Provides Excellent Stability, Leverage, And Comfort
Interior Hook Surface Prevents Conduit From Rolling Or Twisting During Bends
Includes Markings For 10-Degrees, 22.5-Degrees, 30-Degrees, 45-Degrees, 60-Degrees And Corresponding Offset Multipliers
Features Klein�S 1-Inch Angle Setter� (Cat. No. 51613) That Creates A Hard Stop For Quick, Accurate, And Consistent Bends
Designed To Bend 1-Inch Emt, 3/4-Inch Rigid And 3/4-Inch Imc Conduit
Specifications
Type: Iron Conduit Bender
Application: Bending Conduit
Special Features: Patent Pending Angle Setter� Technology
Overall Length: 2.5'' (6.4 Cm)
Overall Height: 52.1'' (132.3 Cm)
Overall Width: 12.9'' (32.9 Cm)
Material: Iron
Handle Length: 44'' (111.8 Cm)
Stub-Up Height: 8'' (20.3 Cm)
Thinwall/Emt: 1'' (2.5 Cm)
Rigid/Imc: 3/4'' (1.9 Cm)
Conduit Size: 1''
Conduit Type: Emt
Marking: 10�, 22�, 30�, 45�, 60�
Included: 51610 Bender Head; 51428 Handle; 51613 Angle Setter�
Weight: 11.8 Lb (5.4 Kg)
Upc: 092644516054
Warnings
Always Wear Approved Eye Protection.
Use A Safe Work Position To Avoid Loss Of Balance.Read More
