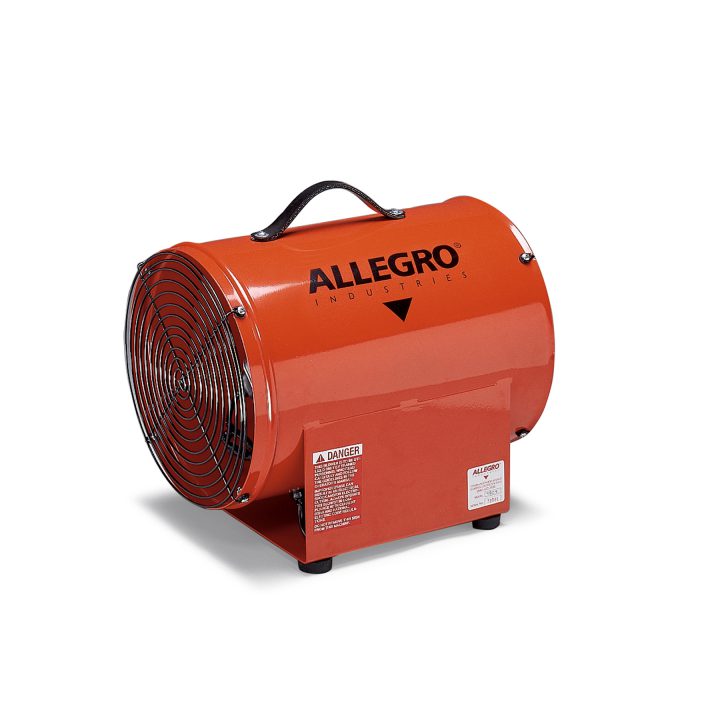

Allegro 9509-50E 12 inch Axial AC High Output Metal Blower, 220V/50 Hz
Available*
Item # 80052810
Model # 9509-50E
$1,039.50
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Blower 110
Tools
Manhole- Confined Space
Blowers- 110 Volt
Allegro Industries
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
Allegro 9509-50E 12" Axial AC High Output Metal Blower, 220V/50 Hz
Designed for applications requiring a large amount of output, while offering portability and minimal weight, the Allegro 12” (30.4 cm) blower offers a 1/2 HP motor with an efficient three-blade impeller in a rugged metal housing. 12" Axial AC High Output Metal Blower (220V AC/50 Hz). Does NOT meet CSA C22.2 No. 113 requirements.
CONSTRUCTION: • 16-gauge cold rolled steel housing • Complete unit epoxy powder coated in orange • Attach duct at either end for intake or exhaust ventilation • 14-gauge steel base • 3-ply rubber carrying handle • Steel/Black powder-coated plated grill • Equipped with four rubber feet
MOTOR: HP: 1/2 HP, 220 VAC, 50 Hz, 2850 RPM, Single Phase Certification: UL Recognized, CE Certified, CSA Certified Current Draw: 3.3A @ 50 Hz Cord: 25’ (7.6 m) 16/3 AWG, SJTW 90C 300V medium duty Switch: Rocker ON/OFF, Integrated inline
FAN: • Glass reinforced polypropylene (PPG) three blade fan with aluminum hub • Moving fan mounted 1 5/8" from grill for safety • Grill gap: 5/16"
ACCESSORIES: 9550-15 Ducting 12” (30.4 cm) Diameter x 15’ (4.57 cm) Length 9550-25 Ducting 12” (30.4 cm) Diameter x 25’ (7.62 cm) Length 9550-50 Flexible Vinyl Adapter Reducer (to be used with 8” (20.3 cm) ducting)
BLOWER DIMENSIONS: 15.5" L x 12" W x 15" H
Designed for applications requiring a large amount of output, while offering portability and minimal weight, the Allegro 12” (30.4 cm) blower offers a 1/2 HP motor with an efficient three-blade impeller in a rugged metal housing. 12" Axial AC High Output Metal Blower (220V AC/50 Hz). Does NOT meet CSA C22.2 No. 113 requirements.
CONSTRUCTION: • 16-gauge cold rolled steel housing • Complete unit epoxy powder coated in orange • Attach duct at either end for intake or exhaust ventilation • 14-gauge steel base • 3-ply rubber carrying handle • Steel/Black powder-coated plated grill • Equipped with four rubber feet
MOTOR: HP: 1/2 HP, 220 VAC, 50 Hz, 2850 RPM, Single Phase Certification: UL Recognized, CE Certified, CSA Certified Current Draw: 3.3A @ 50 Hz Cord: 25’ (7.6 m) 16/3 AWG, SJTW 90C 300V medium duty Switch: Rocker ON/OFF, Integrated inline
FAN: • Glass reinforced polypropylene (PPG) three blade fan with aluminum hub • Moving fan mounted 1 5/8" from grill for safety • Grill gap: 5/16"
ACCESSORIES: 9550-15 Ducting 12” (30.4 cm) Diameter x 15’ (4.57 cm) Length 9550-25 Ducting 12” (30.4 cm) Diameter x 25’ (7.62 cm) Length 9550-50 Flexible Vinyl Adapter Reducer (to be used with 8” (20.3 cm) ducting)
BLOWER DIMENSIONS: 15.5" L x 12" W x 15" H
