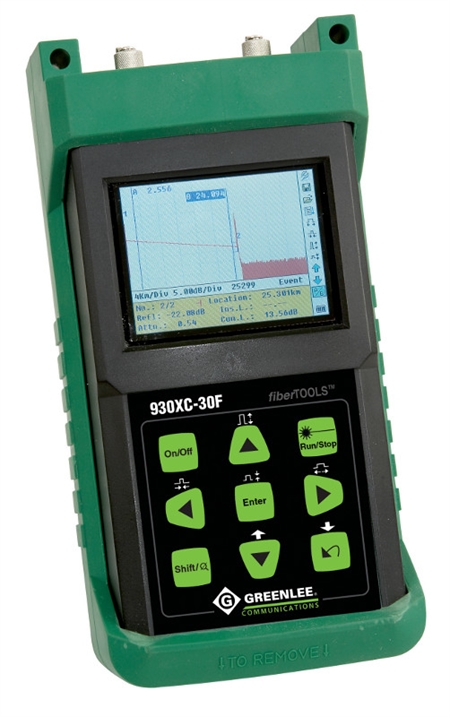

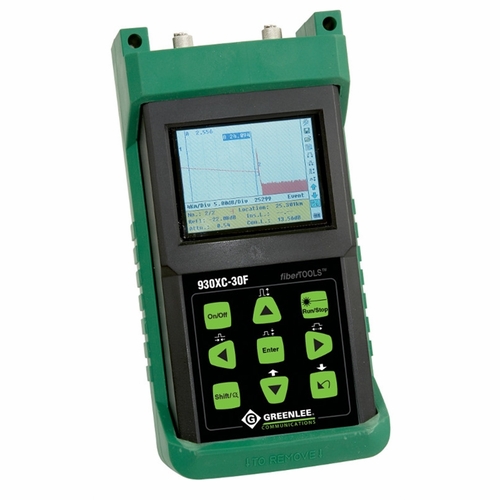

TEMPO 930XC-30F-APC-FC OTDR, SM TRIPLE FILT,13/15/16, OPM,SLS,A 52067096 783310026266
Available*
Item # 79994085
Model # 783310026266
$6,885.00
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Otdr
Fiber Optic Products
OTDR- Power Meter- Light Source- Idenitifiers- VFL
Fiber OTDR- OSA
Tempo Communications, Inc.
Fiber OTDR Singlemode
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
GREENLEE 930XC-30F-APC-FC OTDR, SM TRIPLE FILT,13/15/16, OPM,SLS,A 52067096 783310026266 NEW
DESCRIPTION:
One button test functions Start measurements with the push of one button
Autotest Automatically sets test parameters for optimum test results
Live fiber testing.* Tests live fibers without disrupting live services
Graphical interface. Easy to read, even in low or bright lighting conditions
Up to 38 dB dynamic range
Probe longer cables and see smaller reflections
Measure lengths and defects
Quickly locates faults
Cable acceptance reports
Generate customized reports that include trace signature and fiber events
Long life battery. Work longer without recharge ? up to 8 hours continuous use
Rugged construction. Drop-tested from 2m, impact resistant and built to perform (GR-196 certified)
BellCore standard required by major Telcos
Operational and within specification after a simulated dust storm
EMI resistant as per GR-1089.
SPECIFICATIONS:
Attenuation Deadzone : "8m, 10m (20C at 1310 and 1550NM) 10M (30F) 8M, 10M (20M AT 850 AND 1300NM)" Attenuation Detect Accuracy : ñ0.05 dB/dB Battery : NiMH re-chargeable battery Battery Life : Support over 8 hours operating on one charge or over 20 hours standby Connector Type : "SC, FC and ST as applicable" Data transmission : RS-232/USB port Dimensions : "7.7"" H x 3.9"" W x 2.4"" L (196mm x 100mm x 64mm)" Distance measurement accuracy : ñ1m + 5 X 10 -5 x distance + sampling space Dynamic Range : 38dB (30F and 30P) 35DB (20C) 21DB AND 24DB (20M AT 850/1300NM) Includes : "OTDR, Power supply with universal adapters Optical adapter(SC or FC or ST) Quick reference card Certificate of Calibration CD Instruction manual Vehicle adapter USB cable RS-232cable Soft carry case" Non-Operating Temperature : -20ø to 60ø C Power : NiMH re-chargeable battery/ACadapter Reflection Detect Accuracy : ñ4 dB Relative Humidity : 0 to 95% (non-condensing) StorageOperatingTemperature : "-20ø to 60ø C, -10ø to 50ø C" Sub Brand : 930XC-30F-APC-FC Wavelength : "850, 1300, 1310, 1490, 1550,1625nm" Wavelength Range : +6 to -70dBm, +6 to -60dBm at 850nm Wavelength Visual Fault Locator : 3mW 650NM Weight : 1.9 lbs. (0.87 kg)
CAT #: 930XC-30F-APC-FC UPC #: 52067095 / 783310026266
