Tempo 930Xc-20C-Apc-Sc Otdr, Sm Dual Wave, 13/15, Opm, Sls, Apc 52067085 783310026129  New

Tempo 930Xc-20C-Apc-Sc Otdr, Sm Dual Wave, 13/15, Opm, Sls, Apc 52067085 783310026129 New

Available*
Item # 79994030
Model # 783310000000
$4,725.00
Peac Financing financing available. Learn More
Qty:

* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)

  • Product Description
  • You Might Also like
  • Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
OTDR
Fiber Optic Products
Otdr- Power Meter- Light Source- Idenitifiers- Vfl
Fiber Otdr- Osa
TEMPO COMMUNICATIONS, INC. (FORMERLY GREENLEE TEXTRON)
Fiber Otdr Singlemode
CA Prop 65 Warning Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov

Product Description

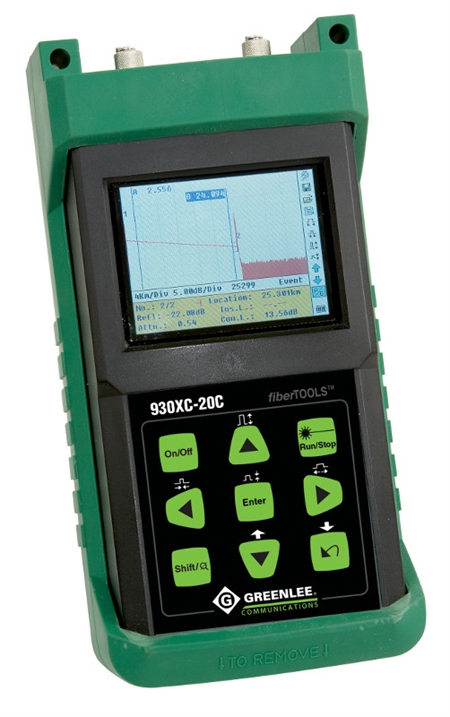

Greenlee 930Xc-20C-Apc-Sc Otdr, Sm Dual Wave, 13/15, Opm, Sls, Apc 52067085 783310026129 New

Description:

One Button Test Functions Start Measurements With The Push Of One Button

Autotest Automatically Sets Test Parameters For Optimum Test Results

Live Fiber Testing.* Tests Live Fibers Without Disrupting Live Services

Graphical Interface. Easy To Read, Even In Low Or Bright Lighting Conditions

Up To 38 Db Dynamic Range

Probe Longer Cables And See Smaller Reflections

Measure Lengths And Defects

Quickly Locates Faults

Cable Acceptance Reports

Generate Customized Reports That Include Trace Signature And Fiber Events

Long Life Battery. Work Longer Without Recharge ? Up To 8 Hours Continuous Use

Rugged Construction. Drop-Tested From 2M, Impact Resistant And Built To Perform (Gr-196 Certified)

Bellcore Standard Required By Major Telcos

Operational And Within Specification After A Simulated Dust Storm

Emi Resistant As Per Gr-1089.

* 930Xc-30F Only

Specifications:

Attenuation Deadzone : 8M, 10M (20C At 1310 And 1550Nm) 10M (30F) 8M, 10M (20M At 850/1300Nm) Attenuation Detect Accuracy : Ñ0.05 Db/Db Battery : Nimh Re-Chargeable Battery Battery Life : Support Over 8 Hours Operating On One Charge Or Over 20 Hours Standby Connector Type : Sc, Fc And St As Applicable Data Transmission : Rs-232/Usb Port Dimensions : 7.7" H X 3.9" W X 2.4" L (196Mm X 100Mm X 64Mm) Distance Measurement Accuracy : Ñ(1M + 5 X 10 -5 X Distance + Sampling Space) Dynamic Range : 38Db (30F And 30P) 35Db (20C) 21Db And 24Db (20M At 850/1300Nm) Includes : Otdr Power Supply With Universal Adapters Optical Adapter (Sc Or Fc Or St) Quick Reference Card Certificate Of Calibration Cd Instruction Manual Vehicle Adapter Usb Cable Rs-232 Cable Soft Carry Case Power : Nimh Re-Chargeable Battery/Acadapter Reflection Detect Accuracy : Ñ4 Db Relative Humidity : 0 To 95% (Non-Condensing) Storageoperatingtemperature : -20Ø To 60Øc/-10Ø To 50Øc Wavelength : 850, 1300, 1310, 1490, 1550,1625Nm Wavelength Range : +6 To -70Dbm, +6 To -60Dbm At 850Nm Wavelength Visual Fault Locator : -3Dbm 650Nm Weight : 1.9 Lbs. (0.87 Kg)

Cat #: 930Xc-20C-Apc-Sc Upc #: 52067085 / 783310026129

Products > Fiber Optic Instruments > Handheld > Otdr > Otdr, Sm Dual Wave, 13/15, Opm, Sls, Apc
