Product Description

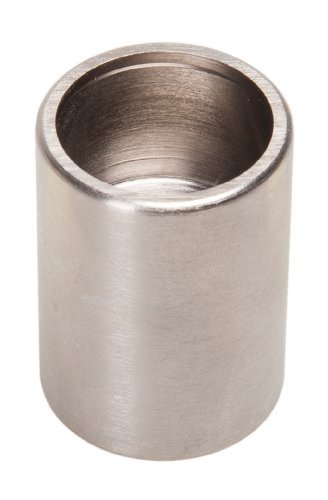

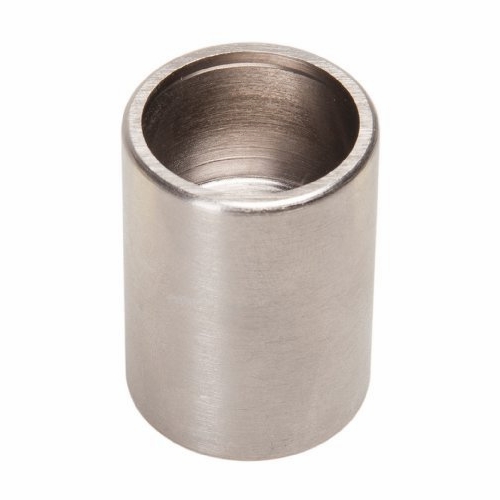

Greenlee 7212Sp-1/2D Die, Cond, Speed, Ms 1/2" (22.5Mm) 52065999 783310016533 New
Description:
Speed Punch? Saves Time And Money With Every Hole.
Up To 3X'S Faster Setup And Disassembly.
No-Thread Punch Design Eliminates Cross-Threading.
Available For Mild Steel - 1/2" To 4" Conduit Size
Specifications:
Application : For Punching Conduit Size Holes In Mild Steel, Aluminum, Fiberglass, And Plastic.
Capacity Mild Steel : Max: 10 Gauge (3.0 Mm).
Diameter : Actual Hole Size: 0.885" (22.5 Mm)
Draw Stud : Std. Draw Stud: 7212Sp14 (3/8" X 3.82").
Draw Studs : Alt. Draw Stud (Long): 7212Sp13 (3/8" X 4.69") - For Use With 746 Hydraulic Ram.
Driver : Use With Greenlee Punch Drivers: Ls50L - Battery-Powered Driver, Or Hydraulic Drivers:10383 - Quick Draw? Flex, 34288 - Quick Draw? Standard, 33786 - Quick Draw? 90, Or 746 Hydraulic Ram & 767 Pump
Material : Carbon-Alloy Steel, Nickel Plated
Minimum Pilot Hole : 1/2" (12.7 Mm)
Operation : Must Be Used With Other Speed Punch? System Components.
Sub Brand : Speed Punch?
Type : Knockout Punches
Weight : 0.35 Lbs. (0.16 Kg)
Cat #: 7212Sp-1/2D
Upc #: 52065999 / 783310016533
