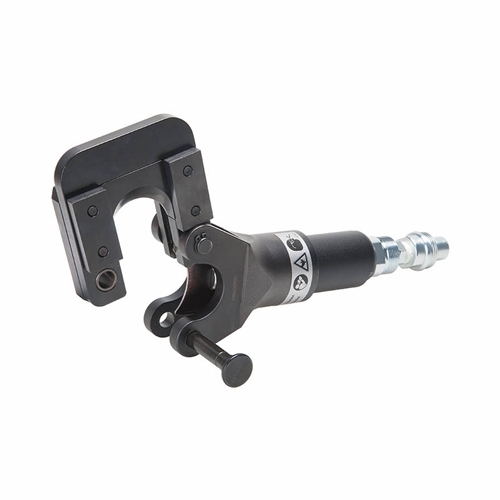

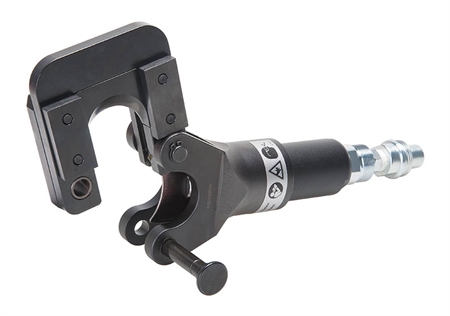

Greenlee Sdg45 Cutter, Cable Remote 52065420 783310015550 New
Description:
Designed Specifically To Cut Acsr Guy Strand And Ground Rods
Cutting Head Rotates 350�
Tools Automatically Retract When The Cutting Cycle Is Complete
Patented Locking Pin And Closed Guillotine Head Design For Added Safety
3/8" Npt Male Screw Type Connector
Ideal For Use With Ehp700L Battery Pump
Specifications:
Dimensions :
1.77" (45Mm) Cutting Capacity
Acsr: 1590 Kcmil (Mcm)
(Falcon 54/19)
Standard Guy Strand: 5/8 In Diameter
Ehs Guy Strand: 1/2 In Diameter
Ground Rod: 5/8 In Diameter
Rebar (Sch 60): 1/2 In Diameter
Wire Rope: 5/8 In Diameter
Copper And Aluminum Cable:1500 Kcmil (Mcm)
Soft Steel
Overall Length : 13.5" (343Mm)
Replacement Part :
50103946 Cutting Head Assembly
50071637 Cylinder
52065151 Carrying Bag
52065823 Coupler Kit
3/8 Male
Type : High Pressure Single Acting Remote Head
Weight : 8.38Lbs (3.8Kg)
Cat #: Sdg45 Upc #: 52065420 / 783310015550
