Product Description

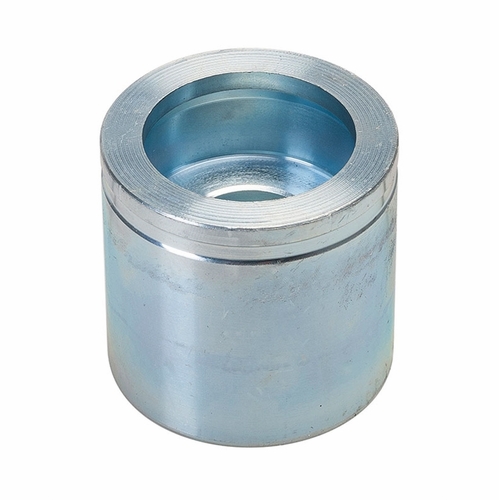

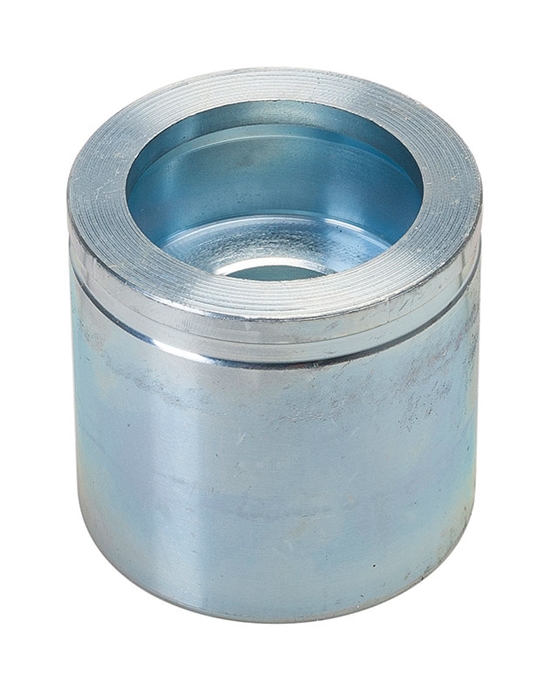

Greenlee 745Sp-1-7/32D Die, Cond, Speed, Ss 1-7/32" (30.5Mm) 783310016687 /52066010 New
Description:
Speed Punch? Saves Time And Money With Every Hole.
Up To 3X'S Faster Setup And Disassembly.
No-Thread Punch Design Eliminates Cross-Threading.
Available For
Stainless Steel - 1/2" To 2" Conduit Size
Mild Steel - 1/2" To 4" Conduit Size
Metric Iso-16 To Iso-63
22Mm & 30Mm For Oil Tight Push Buttons.
Specifications:
Application : For Punching Holes In Stainless Steel, Mild Steel, Aluminum, Fiberglass, And Plastic
Capacity Mild Steel : Max: 10 Gauge (3.0 Mm).
Capacity Stainless Steel : Max: 10 Gauge (3.0 Mm).
Diameter : Actual Hole Size: 1.210" (30.5 Mm)
Draw Stud : Std. Draw Stud: 7212Sp23 (3/4" X 5.00")
Draw Studs : Alt. Draw Stud (Long): 7212Sp21 (3/4" X 5.83") - For Use With 746 Hydraulic Ram
Driver : Use With Greenlee Punch Drivers: 746 Hydraulic Ram & 767 Pump (Or Ls50L - Battery-Powered Driver Up To Max. 12 Ga. Stainless Steel).
Material : Carbon-Alloy Steel, Zinc Plated
Minimum Pilot Hole : 7/8" (22.2 Mm)
Operation : Must Be Used With Other Speed Punch? System Components.
Sub Brand : Speed Punch?
Type : Knockout Punches
Weight : 0.75 Lbs. (0.34 Kg)
Cat #: 745Sp-1-7/32D Part #/Upc: 783310016687/52066010
