RENT INNO VIEW 12R RIBBON FUSION SPLICER RENTAL PER MONTH
Available*
Item # 653960820
Model # VIEW 12R
$1,600.00
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Rental
Rental Equipment
Fusion and Mechanical Splicing
Fiber Fusion Splicer
INNO Instrument
Fusion Splicers
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
RENTAL INNO VIEW 12R RIBBON SLICER

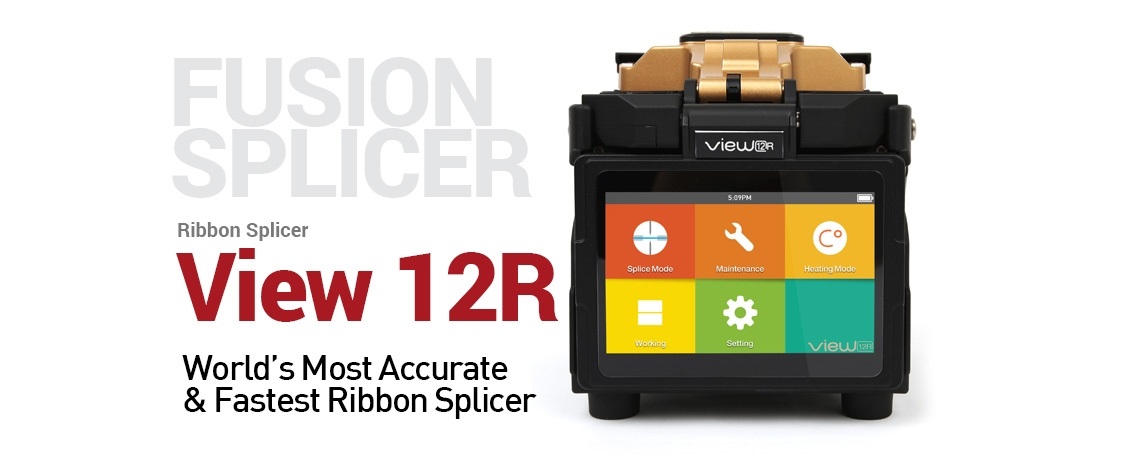

Inno Instrument View 12R ARC Fusion Splicer
World's Most Accurate & Fastest Ribbon Splicer
12-Fiber Ribbon Mass Fusion Splicer
Description View 12R+, a ribbon splicer with the fully motorized clamp alignment system, is the most powerful and stateof-the-art ribbon splicer in the market. Its advanced automatic clamp alignment system offers more accurate and dependable ribbon fiber splicing up to 12 fibers with the double-tapping (Zoom in & out) to the world’s highest magnification of 250x. View 12R provides maximum work efficiency through the fast splicing & heating time, ultra-high battery capacity of 220 splice/heat cycles, and universal holder both for 250µm & 900µm single fiber. View 12R ensures the most reliable work experiences to our valuable customers.
MOTORIZED CLAMP ALIGNMENT SYSTEM View 12R’s advanced clamp activates itself in accordance with the position of fiber so that each cores of individual fiber are correctly placed on its assigned v-groove. There is no doubt that this process enables more accurate and reliable splicing process.
Model View 12R Dimension 160H x 133W x 155D mm (excluding rubber bumper)/167Hx143Wx164Dmm (including rubber bumper) Weight 1.98 KG (without battery)/2.64 KG (with battery) Number of fibers 1,2,4,6,8,10,12 Applicable Fibers SM (ITU-T G.652 & G.657), MM (ITU-T G.651), DS(ITU-T G.653), NZDSF(ITU-T G.655) Compatible Fiber/Cable Ribbon: 0.25-0.4mm/ Single: 250um & 900um Cleave length 10-13 mm Cladding Diameter 125um Splicing Mode Max 100 modes Heating Mode Max 32 Modes Typical splice loss SM: 0.05dB, MM: 0.02dB, DS: 0.08dB, NZDS: 0.08dB (ITU-T standard) Return Loss >>60 dB Lighting 3 White LEDs Splicing Time Ribbon fiber: 15 sec/Single fiber: 9sec Estimated Splice Loss: Available Heating Sleeve Length 60mm, 50mm, 40mm, Micro Heating Time: Typical 20 sec Results Storage Last 2000 results Tension test 1.96-2.25N Operating Condition: Operating Altitude: 0-3,660m above seal level/0-95% relative humidity/-10-50deg Celsius/Max Wind 15m/s Storage Condition: 0-95% relative humidity/-40-80deg Celsius Display: 90degree bi-directional view, 5.0" Color High Resolution Display Fiber View & Magnification X,Y, XY, X/Y : 250X magnification Power Supply AC input 100-240V, DC input 9-14V No. of Splice & Heating with Battery: 8700mAh battery capacity, Typical 220 times (Splice + Heat) Operating Methods: Button/Touch Screen Automatic Calibration: Automatic arc calibration by air pressure and temperature Electrode Life: 1500 arcs, can be extended by using an electrode grinder Terminal: DIN/Micro HDMI
STANDARD PACKAGE includes Fusion splicer View 12R Fiber ribbon splicer High Precision Cleaver V7 Thermal Stripper TS-8 Fiber Holder 12Ribbon: FH-12L/FH-12R Fiber Holder 8 Ribbon: FH-8L/FH-8R Fiber Holder 4 Ribbon: FH-4L/FH-4R Fiber Holder 250 & 900um single: FH-UL/FH-UR (universal) Fiber Holder SOC holder: FH-SOC-R SOC Heater Cover HTS-SOC AC Adapter JS-180300 Cooling Tray CG-22 Electrode E-50 Electrode Grinder EG-18 Manual CD Battery Pack LBT-21 Power Cable ACC-25 Micro HDMI to USB cable HDMI-15 DIN cable DIN-18 Cigarette Lighter Cable CJ-11 Thermal Stripper Charger AR-8 Protection Sleeves PS-12R-40 V-Groove Cleaning Brush CB-01 Carrying Case NBX-35
OPTIONAL PACKAGE (items not included) Fiber Holder 10 Ribbon FH-10L/FH-10R Fiber Holder 6 Ribbon FH-6L/FH-6R Fiber Holder 2 Ribbon FH-2L/FH-2R Fiber Holder 250um single FH-250L/FH-250R Fiber Holder 900um single FH-900L/FH-900R
12-Fiber Ribbon Mass Fusion Splicer
Description View 12R+, a ribbon splicer with the fully motorized clamp alignment system, is the most powerful and stateof-the-art ribbon splicer in the market. Its advanced automatic clamp alignment system offers more accurate and dependable ribbon fiber splicing up to 12 fibers with the double-tapping (Zoom in & out) to the world’s highest magnification of 250x. View 12R provides maximum work efficiency through the fast splicing & heating time, ultra-high battery capacity of 220 splice/heat cycles, and universal holder both for 250µm & 900µm single fiber. View 12R ensures the most reliable work experiences to our valuable customers.
MOTORIZED CLAMP ALIGNMENT SYSTEM View 12R’s advanced clamp activates itself in accordance with the position of fiber so that each cores of individual fiber are correctly placed on its assigned v-groove. There is no doubt that this process enables more accurate and reliable splicing process.
Model View 12R Dimension 160H x 133W x 155D mm (excluding rubber bumper)/167Hx143Wx164Dmm (including rubber bumper) Weight 1.98 KG (without battery)/2.64 KG (with battery) Number of fibers 1,2,4,6,8,10,12 Applicable Fibers SM (ITU-T G.652 & G.657), MM (ITU-T G.651), DS(ITU-T G.653), NZDSF(ITU-T G.655) Compatible Fiber/Cable Ribbon: 0.25-0.4mm/ Single: 250um & 900um Cleave length 10-13 mm Cladding Diameter 125um Splicing Mode Max 100 modes Heating Mode Max 32 Modes Typical splice loss SM: 0.05dB, MM: 0.02dB, DS: 0.08dB, NZDS: 0.08dB (ITU-T standard) Return Loss >>60 dB Lighting 3 White LEDs Splicing Time Ribbon fiber: 15 sec/Single fiber: 9sec Estimated Splice Loss: Available Heating Sleeve Length 60mm, 50mm, 40mm, Micro Heating Time: Typical 20 sec Results Storage Last 2000 results Tension test 1.96-2.25N Operating Condition: Operating Altitude: 0-3,660m above seal level/0-95% relative humidity/-10-50deg Celsius/Max Wind 15m/s Storage Condition: 0-95% relative humidity/-40-80deg Celsius Display: 90degree bi-directional view, 5.0" Color High Resolution Display Fiber View & Magnification X,Y, XY, X/Y : 250X magnification Power Supply AC input 100-240V, DC input 9-14V No. of Splice & Heating with Battery: 8700mAh battery capacity, Typical 220 times (Splice + Heat) Operating Methods: Button/Touch Screen Automatic Calibration: Automatic arc calibration by air pressure and temperature Electrode Life: 1500 arcs, can be extended by using an electrode grinder Terminal: DIN/Micro HDMI
STANDARD PACKAGE includes Fusion splicer View 12R Fiber ribbon splicer High Precision Cleaver V7 Thermal Stripper TS-8 Fiber Holder 12Ribbon: FH-12L/FH-12R Fiber Holder 8 Ribbon: FH-8L/FH-8R Fiber Holder 4 Ribbon: FH-4L/FH-4R Fiber Holder 250 & 900um single: FH-UL/FH-UR (universal) Fiber Holder SOC holder: FH-SOC-R SOC Heater Cover HTS-SOC AC Adapter JS-180300 Cooling Tray CG-22 Electrode E-50 Electrode Grinder EG-18 Manual CD Battery Pack LBT-21 Power Cable ACC-25 Micro HDMI to USB cable HDMI-15 DIN cable DIN-18 Cigarette Lighter Cable CJ-11 Thermal Stripper Charger AR-8 Protection Sleeves PS-12R-40 V-Groove Cleaning Brush CB-01 Carrying Case NBX-35
OPTIONAL PACKAGE (items not included) Fiber Holder 10 Ribbon FH-10L/FH-10R Fiber Holder 6 Ribbon FH-6L/FH-6R Fiber Holder 2 Ribbon FH-2L/FH-2R Fiber Holder 250um single FH-250L/FH-250R Fiber Holder 900um single FH-900L/FH-900R
