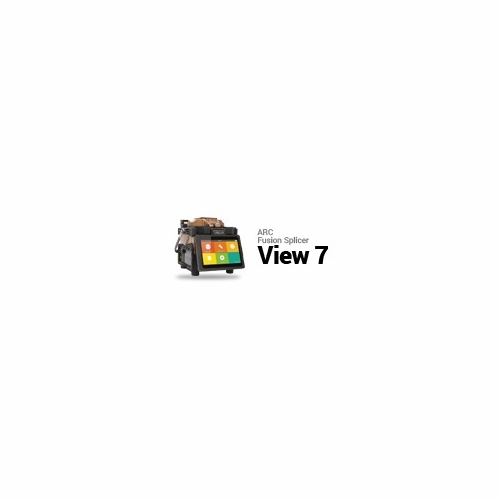

RENT INNO VIEW 7 FUSION SPLICER RENTAL PER MONTH
Available*
Item # 653960810
Model # VIEW 7
$1,100.00
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Rental
Rental Equipment
Fusion and Mechanical Splicing
Fiber Fusion Splicer
INNO Instrument
Fusion Splicers
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
RENTAL VIEW 7
INNO View 7 Fusion Splicer World’s Most Powerful ARC Fusion Splicer Core Alignment Splicing Method with DACAS (Digital Analysis Core Alignment System) The Highest Magnification and Resolution 5" Color LCD Touch Screen Double Tapping (Zoom in & out) Ultra-High Capacity Battery Fast Heating Time 3 Bright LEDs for Dark Environment
Description View 7, a core-alignment splicer with the world’s highest fiber image magnification rate, is the most powerful and innovative fusion splicer in the market. View 7’s 5 inch high-resolution color LCD touch screen with user-friendly intuitive GUI (Graphic User Interface) offers large and clear fiber images to users. By double-tapping the screen, users can Zoom In & Out the image to the world’s highest magnification of 520x. View 7 offers maximum work efficiency through the fast heating time of 13s and the ultra-high battery capacity of 355 splice/heat cycles. Moreover, the 3 LED lights provide bright splice condition to the users working under dark environments. View 7 offers the most reliable work experiences to our valuable customers. ARC Fusion Splicer
Double Tapping By double-tapping the screen, users can zoom in the fiber image to the industry’s highest magnification of 520x. Fiber condition can be easily checked with unaided eyes.
Specifications Model View 7 Dimension 160H x 133W x 155D mm (excluding rubber bumper) / 167H x 143W x 163D mm (including rubber bumper) Weight 2.80KG (with battery) / 2.17KG (without battery) Number of Fiber Single Applicable Fibers SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655) Compatible Fiber / Cable 0.25~.0 mm / Indoor Cable (with VFH-40) Cleaved Length Diameter: 0.125~ mm / Cleave Length: 8~6 mm Cladding Diameter 80~50 ìm Splicing Mode Preset 35 modes / Max 128 modes Heating Mode Preset 5 modes / Max 32 modes Typical Splice Loss SM: 0.02dB / MM:0.01dB / DS:0.04dB / NZDS: 0.04dB / G.657: 0.02dB(ITU-T Standard) Return Loss >>60dB Lighting 3 White LEDs Splicing Time Auto mode : 8 sec / Quick mode : 7 sec Estimated Splice Loss Available Protection Sleeve Length 20~0 mm Heating Time FP-03 typical heating time: 13 sec Results Storage The last 2000 results Tension Test 1.96~.25N Operating Condition Operating Altitude: 0~000m above sea level, 0~5% relative humidity, -10~0°C, Max Wind 15m/s Storage Condition 0~5% relative humidity, -40~0°C Display 90° bi-directional view, 5.0” Color High Resolution Display Fiber View & Magnification X, Y, XY, X/Y : 520X Magnification Power Supply AC Input 100-240V, DC Input 9-14V No. of Splice / Heating with Battery 9800mAh Battery Capacity, Typical 355 times (Splice+Heat) Operating Methods Button / Touch screen Automatic Calibration Automatic arc calibration by air pressure and temperature Electrode Life 3500 arcs, can be extended by using an electrode grinder Terminal USB2.0 / MINI USB / HDMI
Package Fusion Splicer View 7 High Precision Cleaver VF- 15H Fiber Holder VFH-10 / VFH-40 AC Adapter JS-180300 Cooling Tray CG-22 Electrode E-50 Manual CD CD Battery Pack LBT-20 Power Cable ACC-25 Carrying Case NBX-35 Stripper CFS-2
SHIPPING DIMENSIONS 23"X15"X14" SHIPPING WEIGHT 24 LBS
