PLP 4800112 FIBERLIGN LITE SUPPORT ADSS .460-.489 *ORDER MINIMUM* 15
Available*
Item # 55725145
Model # 4800112
$28.23
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Adss
Fiber Optic Products
Fiber Optic Infrastructure
Fiber Cable Suspension Clamps
Preformed Line Products
Fiber Clamps for ADSS Cable
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

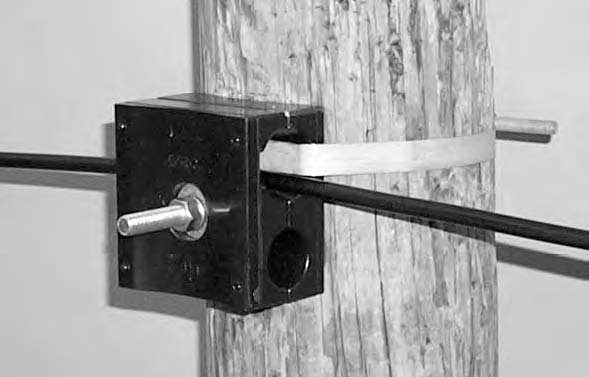

Preformed Line Products 4800112 FIBERLIGN® Lite Support for ADSS Cable Diameter Range inches .460-.489
The FIBERLIGN Lite Support (FLS) system is designed to gently but firmly support All Dielectric Self-Supporting (ADSS) cable. It is intended for tangent support installations (see "LINE ANGLES") on lines that feature low voltages, very short spans and low mechanical loads. For products with higher capabilities see the subsequent pages under FIBERLIGN® Dielectric Support, FIBERLIGN Aluminum Support, FIBERLIGN Aluminum Suspension, with and without rods and FIBERLIGN Dielectric Suspension. The two latter products can be used in higher voltage environments where track resistant ADSS cables are required.
DUAL INSERT APPLICATION: The FLS with small and large inserts can support two cables. Existing FIBERLIGN Dielectric Support (FDS) installations (up to 300' spans) can be replaced or "retrofitted" using the FLS. This option increases capability from one to two cables within minimal pole space.
FTTP: -Fiber to the Premises drop cables can have round, flat and figure 8 construction. Specially designed Lite Support inserts are available to accept all of these configurations.
STACKING: -LITE Support Housings are stackable to add more cables within the same pole space. This can offer a neat alternative to busy "J-Hook" clutter for FTTP drop cable distribution. Maximum Span Lengths -- 300 feet (91 m): -The maximum recommended span length for the FLS is dependent upon the specific cable OD, initial cable tension, ice and wind loading district (NESC), and other factors. It is intended for application on short spans where vertical loading does not exceed 1000# (4.4 kN) under the extreme case. -In general, the approximate recommended maximum span length for the FLS is 300 feet (91 m) under extreme loads (NESC Heavy). Consult Preformed Line Products for specif.ic span limitations.
MATERIAL: -The housing halves are made from a high-strength, dielectric urethane material. The cushioned inserts are made from a softer, pliable dielectric material that gently grips and cushions the ADSS cable within the clamped housing. The hardware (optional) for banded applications is zinc plated.
The FIBERLIGN Lite Support (FLS) system is designed to gently but firmly support All Dielectric Self-Supporting (ADSS) cable. It is intended for tangent support installations (see "LINE ANGLES") on lines that feature low voltages, very short spans and low mechanical loads. For products with higher capabilities see the subsequent pages under FIBERLIGN® Dielectric Support, FIBERLIGN Aluminum Support, FIBERLIGN Aluminum Suspension, with and without rods and FIBERLIGN Dielectric Suspension. The two latter products can be used in higher voltage environments where track resistant ADSS cables are required.
DUAL INSERT APPLICATION: The FLS with small and large inserts can support two cables. Existing FIBERLIGN Dielectric Support (FDS) installations (up to 300' spans) can be replaced or "retrofitted" using the FLS. This option increases capability from one to two cables within minimal pole space.
FTTP: -Fiber to the Premises drop cables can have round, flat and figure 8 construction. Specially designed Lite Support inserts are available to accept all of these configurations.
STACKING: -LITE Support Housings are stackable to add more cables within the same pole space. This can offer a neat alternative to busy "J-Hook" clutter for FTTP drop cable distribution. Maximum Span Lengths -- 300 feet (91 m): -The maximum recommended span length for the FLS is dependent upon the specific cable OD, initial cable tension, ice and wind loading district (NESC), and other factors. It is intended for application on short spans where vertical loading does not exceed 1000# (4.4 kN) under the extreme case. -In general, the approximate recommended maximum span length for the FLS is 300 feet (91 m) under extreme loads (NESC Heavy). Consult Preformed Line Products for specif.ic span limitations.
MATERIAL: -The housing halves are made from a high-strength, dielectric urethane material. The cushioned inserts are made from a softer, pliable dielectric material that gently grips and cushions the ADSS cable within the clamped housing. The hardware (optional) for banded applications is zinc plated.
