PLP 44003915 Fiberlign Dielectric Support Block Adss .951-1.000

Name: PLP 44003915 Fiberlign Dielectric Support Block Adss .951-1.000
SKU: 55725075
Price: 54.09 USD
Availability: InStock

Available*

Item # 55725075

Model # 44003915

$54.09

financing available. Learn More

* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)

Product Description
You Might Also like
Recently Viewed

Generic

Class

Group

Type

Manufacturer

LOT

Adss

Fiber Optic Products

Fiber Optic Infrastructure

Fiber Cable Suspension Clamps

Preformed Line Products

Fiber Clamps for ADSS Cable

Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov

Product Description

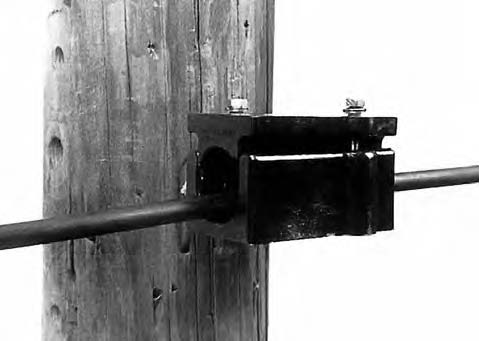

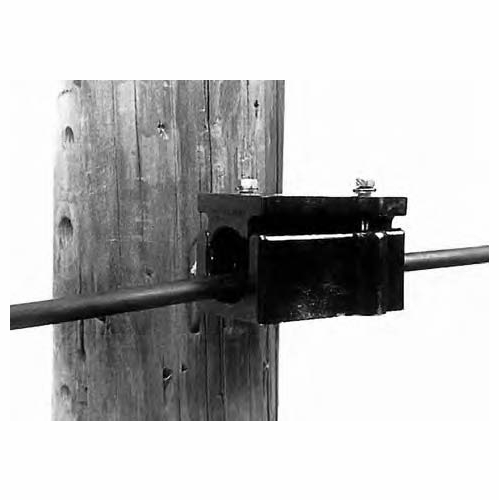

Preformed Line Products 44003915 Fiberlign� Dielectric Support For Adss Cable Od Range Inches (Mm) . .951-1.000 (24.2-25.4).

Stringing Operations: The Dielectric Material Of The Body Provides A Highly Abrasive-Resistant Surface That Allows The Fds Body To Be Used As A Stringing Traveler At The Structure On Up To 10� Line Angles. This Ability Saves Installation Time And Costs By Eliminating The Use Of Conventional Stringing Travelers. For Stringing Operations, Thread The Fds Onto The Appropriate Bolt, Remove The Inserts And Elevate The Top As Far Away From The Bottom As The Bolts Will Allow, To Provide As Large An Opening As Possible. Then Thread Pulling-In Cable Through The Opening.

Component Reuse: All Components Of Fds May Be Reused As Desired If In Good Condition. Do Not Modify Any Component.Read More
