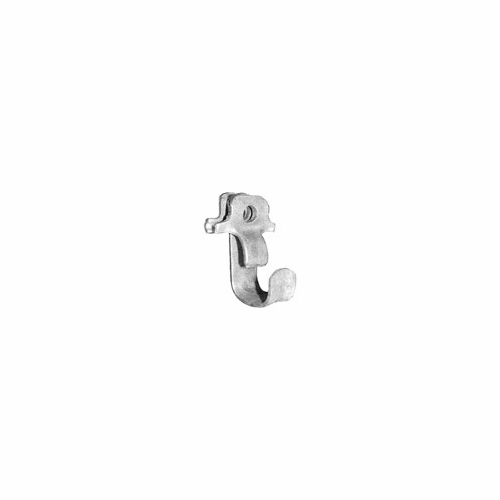

JOSLYN PA296X CABLE SUSPENSION CLAMP FIG 8 WITH STRINGING HOOK
Available*
Item # 55724900
Model # PA296X
$24.29
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Clamp
Material and Supplies
Hardware- Screws- Bolts
Clamps
Maclean Power Systems
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
JOSLYN HUBBELL POWER SYSTEMS PA296X CABLE SUSPENSION CLAMP FIG 8 WITH STRINGING HOOK NEW These clamps are used for tangent construction or angles to 10 degrees. They accommodate the 1/4-inch insulated messenger of figure 8 cable. The hook is provided for stringing and safety.
The PA296X is used for heavier construction and has a clamp gripping length of 3-1/4-inches. It will support cable through 200 pair, No. 19. Catalog No. Approx. Shipping Weight 147 (Lbs. Per 100 Pcs.)
The PA292X is used on .109 inch to .134 inch bare or insulated messenger wire in tangent construction or angles to 35 degrees. The hook serves as a safety device and can be used in the stringing of the cable. The clamp sections and hook accommodate a 5/8-inch diameter pole mounting bolt. The clamp surface length is 1-3/4-inches. Catalog No. Approx. Shipping Weight 57 (Lbs. Per 100 Pcs.)
These clamps are used for tangent construction or angles to 10 degrees. They accommodate the 1/4-inch insulated messenger of figure 8 cable. The hook is provided for stringing and safety. The J2235 has a clamp gripping length of 1-7/8-inches. It is designed for normal use and will support cable through 100 pair, No. 19.
The PA296X is used for heavier construction and has a clamp gripping length of 3-1/4-inches. It will support cable through 200 pair, No. 19.
The J2245 has a 6-inch long clamp gripping length and is supplied with two clamp bolts for maximum holding strength in areas of adverse wind conditions or where long spans and heavier loads are required. It will support cable through 200 pair, No. 19.
A 5/8-inch bolt is mounted on pole with hook against pole. The square nut is tightened up against the hook and left in a square position as shown. Add a minimum of 3 inches to pole diameter to determine length of bolt.
J2235 After the cable is strung, the nut is loosened, and the keeper is turned around as shown. The cable is then raised up so that the messenger can be gripped tightly in the groove of the hanger by tightening the nut.
Catalog No. Approx. Shipping Weight (Lbs. Per 100 Pcs.) J2235 172 J2245 370 PA296X 147
The PA296X is used for heavier construction and has a clamp gripping length of 3-1/4-inches. It will support cable through 200 pair, No. 19. Catalog No. Approx. Shipping Weight 147 (Lbs. Per 100 Pcs.)
The PA292X is used on .109 inch to .134 inch bare or insulated messenger wire in tangent construction or angles to 35 degrees. The hook serves as a safety device and can be used in the stringing of the cable. The clamp sections and hook accommodate a 5/8-inch diameter pole mounting bolt. The clamp surface length is 1-3/4-inches. Catalog No. Approx. Shipping Weight 57 (Lbs. Per 100 Pcs.)
These clamps are used for tangent construction or angles to 10 degrees. They accommodate the 1/4-inch insulated messenger of figure 8 cable. The hook is provided for stringing and safety. The J2235 has a clamp gripping length of 1-7/8-inches. It is designed for normal use and will support cable through 100 pair, No. 19.
The PA296X is used for heavier construction and has a clamp gripping length of 3-1/4-inches. It will support cable through 200 pair, No. 19.
The J2245 has a 6-inch long clamp gripping length and is supplied with two clamp bolts for maximum holding strength in areas of adverse wind conditions or where long spans and heavier loads are required. It will support cable through 200 pair, No. 19.
A 5/8-inch bolt is mounted on pole with hook against pole. The square nut is tightened up against the hook and left in a square position as shown. Add a minimum of 3 inches to pole diameter to determine length of bolt.
J2235 After the cable is strung, the nut is loosened, and the keeper is turned around as shown. The cable is then raised up so that the messenger can be gripped tightly in the groove of the hanger by tightening the nut.
Catalog No. Approx. Shipping Weight (Lbs. Per 100 Pcs.) J2235 172 J2245 370 PA296X 147
