MACLEAN/JOSLYN PA288 FIGURE 8 CLAMP ***min order 25***
Available*
Item # 55410000
Model # PA288
$46.41
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Clamp
Material and Supplies
Hardware- Screws- Bolts
Clamps
Maclean Power Systems
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
MACLEAN POWER SYSTEMS /JOSLYN HUBBELL POWER SYSTEMS PA288 FIGURE 8 CLAMP ***min order 25*** NEW Clamps, Cable Suspension, Corner
Hot Dip Galvanized

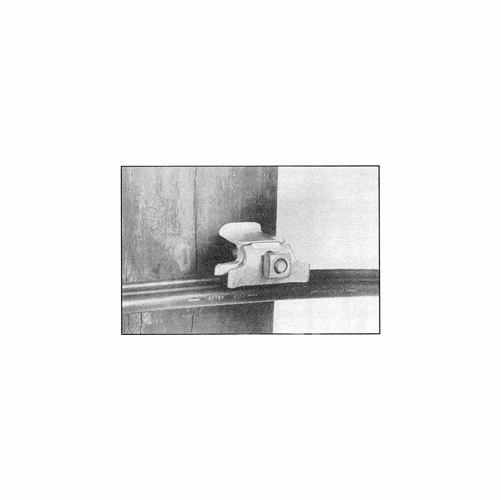

The PA288 clamp is designed to accommodate inside or outside angles from 10 degrees to 35 degrees. Clamp groove ends are generously rounded to prevent damage to 1/4-inch bare or insulated messenger installed at angles up to 35 degrees. The inner, pole side clamp section is tapped to accept a 5/8-inch diameter bolt and includes a curved surface with spurs to penetrate into the pole and provide a stable installation. The
design provides a 1-5/8-inch clearance from the surface of the pole to the cable and 3-3/4-inch clamping surface length.
Catalog No. PA288 144 (Lbs. Per 100 Pcs.)
JOSLYN HUBBELL POWER SYSTEMS PA288 FIGURE 8 CLAMP ***min order 25*** NEW
Catalog No. PA288 144 (Lbs. Per 100 Pcs.)
JOSLYN HUBBELL POWER SYSTEMS PA288 FIGURE 8 CLAMP ***min order 25*** NEW
