CIRCA 4486 (611012L75) 100PR 75 foot OSP STUB-BOTTOM/IDC
Available*
Item # 54679880
Model # 611012L75
$992.25
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Block Coe
Material and Supplies
Blocks Frame- Central Office
100 Pair
Circa Telecom USA Inc
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
CIRCA 4486 (611012L75) 100PR 75 foot OSP STUB-BOTTOM/IDC
CIRCA TELECOM 4486 (611012L75) 100PR 75' OSP STUB-BOTTOM/IDC 611012L75
Model # 4486 Stock Code 611012L75 Pair Count 100 Cable Direction Bottom Input 75' 24AWG Output IDC Connector Dimensions (H x W x D) 8.52 x 9.96 x 4.39 inches Weight 40 lbs.

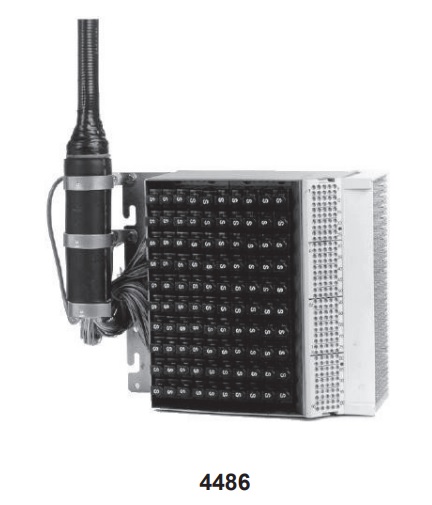

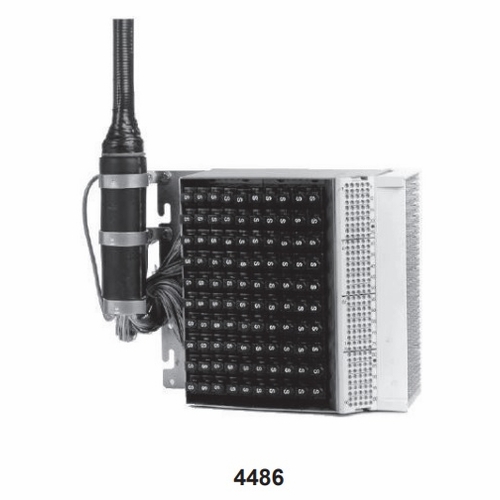

4486 100 PAIR CENTRAL OFFICE CONNECTOR The 4486 Central Office Series is designed to protect incoming cable lines from overvoltage and current in Central Office and Private Automatic Branch Exchange environments. Easily mounted on central office frames with 8 inch centers.
- 100 Pair maximum density space- saving unit - Accepts industry standard 5 Pin protection modules - Gold plated protector module sockets provide superior electrical contact to eliminate noise problems - User-friendly front facing cross connect field and test blocks - Large, well spaced fanning strips allows for clean jumper wire management - Quick release system on rear cover allows for access to panel field for wire wrap input - Designed to exceed the requirements set forth in Underwriters Laboratory’s UL497
CIRCA TELECOM 4486 (611012L75) 100PR 75' OSP STUB-BOTTOM/IDC 611012L75
Model # 4486 Stock Code 611012L75 Pair Count 100 Cable Direction Bottom Input 75' 24AWG Output IDC Connector Dimensions (H x W x D) 8.52 x 9.96 x 4.39 inches Weight 40 lbs.
4486 100 PAIR CENTRAL OFFICE CONNECTOR The 4486 Central Office Series is designed to protect incoming cable lines from overvoltage and current in Central Office and Private Automatic Branch Exchange environments. Easily mounted on central office frames with 8 inch centers.
- 100 Pair maximum density space- saving unit - Accepts industry standard 5 Pin protection modules - Gold plated protector module sockets provide superior electrical contact to eliminate noise problems - User-friendly front facing cross connect field and test blocks - Large, well spaced fanning strips allows for clean jumper wire management - Quick release system on rear cover allows for access to panel field for wire wrap input - Designed to exceed the requirements set forth in Underwriters Laboratory’s UL497
