HUBBELL C1025201 Anchor Helix, Tough One, 10in, 10,000 ft-lb rating, 2.25in,1in threads NEW
HUBBELL C1025201 Anchor Helix, Tough One, 10in, 10,000 ft-lb rating, 2.25in,1in threads NEW
Item # C1025201 HUBBELL Anchor Helix, Tough One, 10in, 10,000 ft-lb rating, 2.25in,1in threads UPC: 096359008781

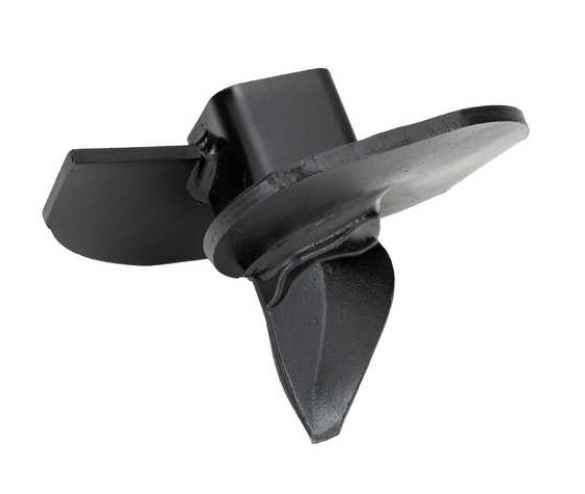

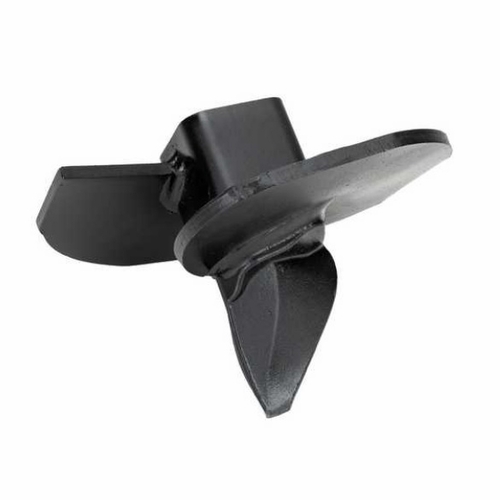

Tough One Anchor Helix, 10,000 Ft Lbs (13,558 N-M), 10" (254 mm) Helix for use with 0.75" (19.1 mm) or 1" (25.4 mm) Rod.
Tough One anchors give users high-strength anchor capability in all soils. You get a better anchor at an economical price. The anchor’s sloped lead point improves penetration and helps soil flow from below the hub to above the anchor. The system consists of a screw anchor, anchor rod and installation tooling.
Installed with Chance anchor wrench C1021583 The anchor's sloped lead point improves penetration and helps soil flow from below the hub to above the anchor. 1" threads to fit 3/4" and 1" diameter Pisa rod Anchors are painted with a black paint
Product details General Application Helical Anchoring Catalog Number C1025201 Coating Painted Number of Helices 1 Torque Rating 10000 ft-lbs Type Anchor Helix UPC 096359008781
Dimensions Anchor Helix Diameter(s) 10 in Anchor Hub Size 2.25 in Dimensions 9.500 in x 9.500 in x 7.250 in Height 7.25 in Length 9.5 in Rod Diameter 0.75 1 in Weight 12.75 lb Width 9.5 in
Logistics Pallet Quantity 144 Standard Package 4
