Product Description

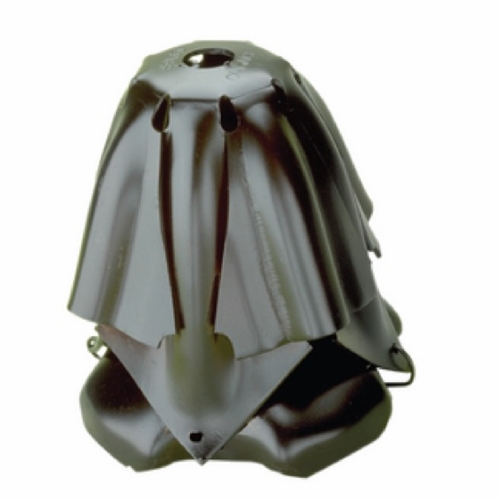

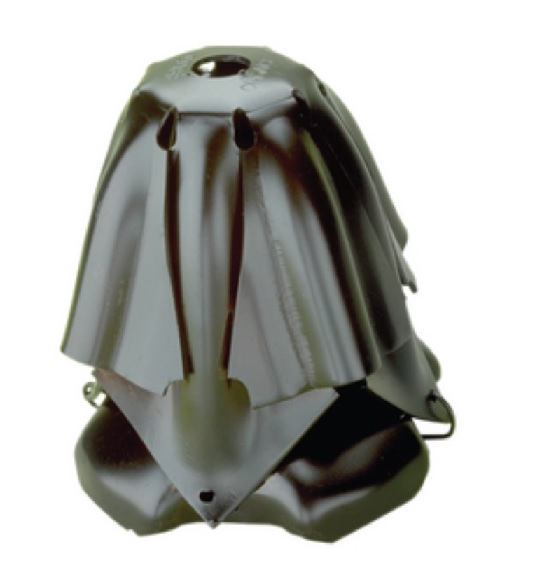

Hubbell 6870 Anchor, Expanding, 6In Painted Fits 5/8In Rod - Bust Anchor 096359073901 New
Hubbell 6870 Anchor, Expanding,
6In Painted Fits 5/8In Rod - Bust Anchor 096359073901 New
Item # 6870
Hubbell Anchor, Expanding, 6In Painted Fits 5/8In Rod - Bust Anchor
Upc: 096359073901
Expanding Anchor For 6" (152 Mm) Hole Used With 0.625" (15.9 Mm) Diameter Rod.
The Chance �Bust� Expanding Anchor Expands To Take Full Advantage Of The Available Hole Size. All Eight Blades Wedge Into Undisturbed Earth, There Is No Wasted Space Between Blades. Expand Or Bust The Anchor Using The Chance Expanding And Tamping Bar. Forged Eye Anchor Rods Are Sold Separately.
Chance �Bust� Expanding Anchors Expand To Take Full Advantage Of The Eight Blade Wedges To Expand Into Undisturbed Soil.
Painted With Black Paint
Nut Retainer On Bottom Of Anchor Holds Nut In Place During Installation
The Effectiveness Of The Anchor Is Dependent Upon Proper Size Hole And The Thoroughness Of Backfill Tamping
General
Application Earth Tension Anchoring
Catalog Number 6870
Coating Black Paint
Type Earth Tension Anchors
Upc 096359073901
Dimensions
Anchor Hole Size 6 In
Area 70 In�
Dimensions 5.875 In X 5.875 In X 5.875 In
Height 5.875 In
Length 5.875 In
Rod Diameter - Order Separately 0.625 In
Weight 5.067 Lb
Width 5.875 In
Certifications And Compliance
Rus Listed Reference Z - Anchors, Service
Logistics
Pallet Quantity 128
Standard Package 12Read More
