HUBBELL R360 Rock Anchor Expanding 1.75 inch x 60 inches Long Tripleye 096359051176
Available*
Item # 54300220
Model # R360
$51.25
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Anchor
Material and Supplies
Hardware- Screws- Bolts
Anchors- Pole Line
Hubbell Power Systems
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

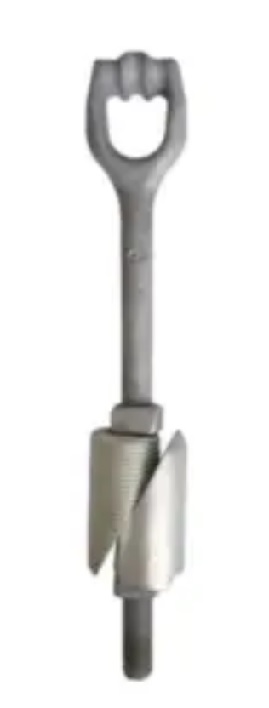

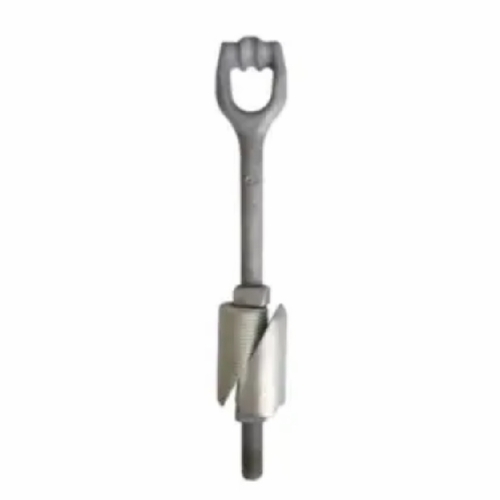

HUBBELL R360 Rock Anchor Expanding 1.75 inch x 60 inches Long Tripleye 096359051176 NEW
HUBBELL R360 Rock Anchor Expanding 1.75 inch x 60 inches Long Tripleye 096359051176 NEW
Item # R360 HUBBELL Rock Anchor Expanding 1.75 inch x 60 inches Long Tripleye UPC: 096359051176
Brand: Chance Catalog ID: R360
Expanding Rock Anchor 0.75" (19.1 mm) Diameter Rod, 60" (1524 mm) long with Tripleye. This Rock Anchor expands and wedges against solid walls of rock. Once it is expanded, the harder the pull on the rod-the tighter it wedges. Wedges are made of malleable or ductile iron with a rust-resistant coating. Rod should be in line with the guy. Installation is quick and simple. Bore the hole with hand or power drill, making sure that the diameter of the hole is 1/4-inch larger than the diameter of the unexpanded anchor. Drop the anchor in the hole. Put a bar through the large eye of the anchor rod. Turn the rod until the anchor is firmly expanded against the sides of the hole.
Anchor expands and wedges against solid walls of rock The large drop-forged Tripleye® rod holds up to three guy strands Requires 2" diameter hole in competent rock a minimum depth of 12" Hot dipped galvanized per ASTM A153
Product details General Application Earth Tension Anchoring Catalog Number R360 Coating Galvanized, ASTM A-153 Eyenut Style Tripleye Strength Note Ultimate strength ratings apply to properly installed anchors only. Failure to install within 5° of alignment with the guy load may significantly lower strength. Recommended minimum installation depth is 12" in solid rock. Tensile Strength 23000 lb. Type Rock Anchors UPC 096359051176
Dimensions Anchor Hole Size 2 in Diameter 1.75 in Dimensions 60.000 in x 1.750 in x 1.750 in Height 1.75 in Length 60 in Rod Diameter 0.75 in Weight 10.192 lb Width 1.75 in
Logistics Pallet Quantity 50 Standard Package 5
