HUBBELL PS816 Tripleye 8 inch No Wrench Anchor with 1 inch x 66 inch Rod 1000LB
Available*
Item # 54250100
Model # PS816
$43.47
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Anchors
Material and Supplies
Hardware- Screws- Bolts
Anchors- Pole Line
Hubbell Power Systems
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
HUBBELL PS816 Tripleye 8 inch No Wrench Anchor with 1 inch x 66 inch Rod 1000LB
HUBBELL PS816 Tripleye 8 inch No Wrench Anchor with 1 inch x 66 inch Rod 1000LB
Item # PS816 HUBBELL Tripleye 8 inch No Wrench Anchor with 1 inch x 66 inch Rod 1000LB
Brand:
Chance
Catalog ID:
PS816

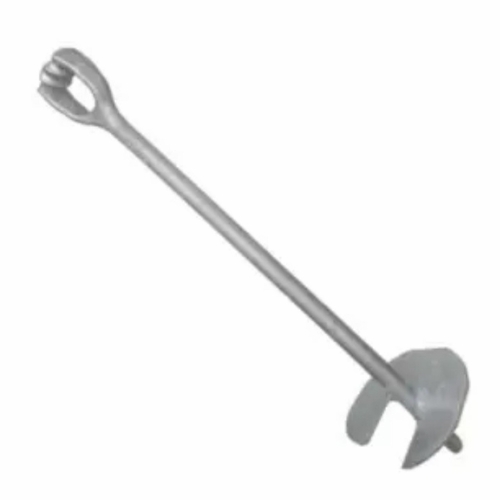

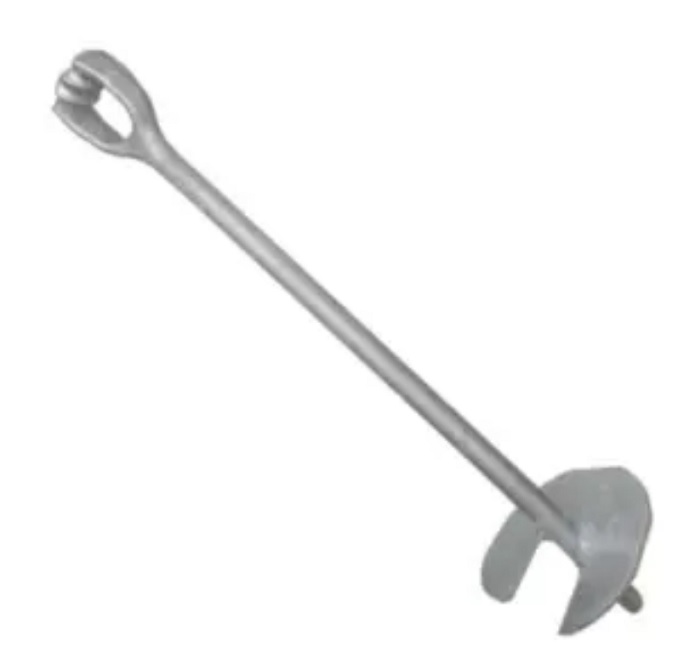

No-Wrench 66" (1676 mm) long with 8" (203 mm) Helix Tripleye. Chance No-Wrench Screw Anchors may be installed by hand or machine. The THIMBLEYE® eye or TRIPLEYE® eye on the rod has a large opening to admit a turning bar for screwing the anchor down. The eye will also fit into an adapter available from most hole-boringmachine manufacturers so the anchor may be powerinstalled. The No-Wrench Screw Anchor consists of a drop-forged steel THIMBLEYE® eye or TRIPLEYE® eye rod welded to a steel helix. The entire anchor is hot-dip galvanized for long resistance to rust.
No-Wrench Screw Anchors may be installed by hand or machine. Hot dipped galvanized per ASTM A153 No-Wrench Screw Anchors can be installed to a greater depth to reach a firmer soil by using an extension rod
Product Details General Coating Galvanized Eyenut Style Tripleye Number of Helices 1 Torque Rating 1000 ft-lbs Type Helical Anchors UPC 096359074830
Dimensions Anchor Helix Diameter(s) 8 in Length 66.000 in Rod Diameter 1.000 in Weight 21.031 lb
Logistics Pallet Quantity 60 EA Standard Package 1
HUBBELL PS816 Tripleye 8 inch No Wrench Anchor with 1 inch x 66 inch Rod 1000LB
Item # PS816 HUBBELL Tripleye 8 inch No Wrench Anchor with 1 inch x 66 inch Rod 1000LB
Brand:
Chance
Catalog ID:
PS816
No-Wrench 66" (1676 mm) long with 8" (203 mm) Helix Tripleye. Chance No-Wrench Screw Anchors may be installed by hand or machine. The THIMBLEYE® eye or TRIPLEYE® eye on the rod has a large opening to admit a turning bar for screwing the anchor down. The eye will also fit into an adapter available from most hole-boringmachine manufacturers so the anchor may be powerinstalled. The No-Wrench Screw Anchor consists of a drop-forged steel THIMBLEYE® eye or TRIPLEYE® eye rod welded to a steel helix. The entire anchor is hot-dip galvanized for long resistance to rust.
No-Wrench Screw Anchors may be installed by hand or machine. Hot dipped galvanized per ASTM A153 No-Wrench Screw Anchors can be installed to a greater depth to reach a firmer soil by using an extension rod
Product Details General Coating Galvanized Eyenut Style Tripleye Number of Helices 1 Torque Rating 1000 ft-lbs Type Helical Anchors UPC 096359074830
Dimensions Anchor Helix Diameter(s) 8 in Length 66.000 in Rod Diameter 1.000 in Weight 21.031 lb
Logistics Pallet Quantity 60 EA Standard Package 1
