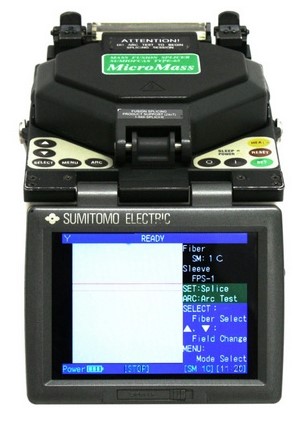

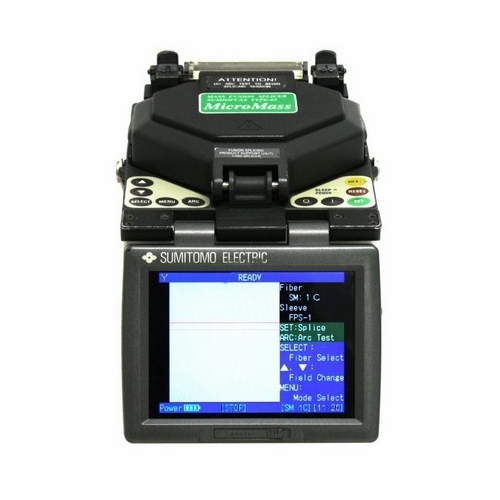

SUMITOMO TYPE-65 RIBBON SPLICER (REPAIRED)
Available*
Item # 53966000
Model # TYPE 65
$2,625.00
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Fusion Spl
Fiber Optic Products
Fusion and Mechanical Splicing
Fiber Fusion Splicer
Sumitomo Electric Inc
Fusion Splicers
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
SUMITOMO TYPE 65 RIBBON SPLICER (REPAIRED)
The Type-65 sets a new standard for reduced size and weight, and is designed for complete portability. Battery operated, the splicer allows more than 20 splices per battery charge including heater operation. With 30 mph wind protection and a compact size, it can splice in any environment. Utilizing precision v-groove alignment, the Type-65 can be used for all types of ribbon and single splicing with an optimum arrangement for ease of use in aerial and taut-sheath applications. A newly developed fiber viewing system simultaneously focuses up to 12 fibers at a time and maintains equal size and resolution across all fibers for improved accuracy of splice loss estimations. The high-speed, high-resolution image processing system automatically evaluates the fibers in two planes (X and Y-axis) for cleave end face quality, cleave length irregularity, and fiber offset to screen out the most likely causes in high loss splices. The Type-65 also has programmable power management functions for longer battery operation, a large color monitor, one of the fastest built-in fiber protection sleeve heaters available, and ultra-fast 30 second mass splicing! Features:
Compact, Lightweight Design and Front to Back Work Flow System Simplifies Splicing in Confined Areas (i.e. Aerial, Taught-Sheath) Simultaneous Focusing on Up to 12 Fibers at a Time 5.6" Color LCD Display With On-Screen Guide and Brightness Control Eases Operation in a Field Environment Lower Power Consumption with Built-In Power Management Allows 20+ Splices, Including Heater Operation, on a Charged Battery Automatic Splice and Loss Estimationin 30 Seconds for 12 Count Ribbon Fiber Specifications
Alignment Method Fixed V-Groove Fiber Type SMF/MMF/NZ-DSF Coating Diameter Ribbon: 250µm Single: 250 & 900µm. Number Of Fibers 1 - 12 Typical Splice Loss Identical Fibers SMF: 0.05dB MMF: 0.03dB NZ-DSF: 0.07dB Number Of Fusion Condition Settings 3 Fiber Profiles With 7 Pre-set Programs Each. Maximum Of 48 Programs. Splice Parameters 5 Parameters For Each Program Arc Test Compensation Automatic No. Of Heater Condition Settings 10 Typical Splice Cycle Time 12 Fibers: 30 Seconds(Set To Loss Estimation) Splice Data Storage 250 Splice Data Points Size 150W x 150H x 150D mm(5.9W x 5.9H x 5.9D Inch) Weight 3 kg (6.6 lb) Power Requirement Input: 100 - 240V AC 50/60Hz 12V DC Display Low Glare 5.6 Inch Color LCD Monitor Wind Protection 30 mph (15 m/s) Battery Operation 20+ 12- Fiber Mass Splices Including Protection Sleeve Heater & Thermal Jacket Remover Operation
The Type-65 sets a new standard for reduced size and weight, and is designed for complete portability. Battery operated, the splicer allows more than 20 splices per battery charge including heater operation. With 30 mph wind protection and a compact size, it can splice in any environment. Utilizing precision v-groove alignment, the Type-65 can be used for all types of ribbon and single splicing with an optimum arrangement for ease of use in aerial and taut-sheath applications. A newly developed fiber viewing system simultaneously focuses up to 12 fibers at a time and maintains equal size and resolution across all fibers for improved accuracy of splice loss estimations. The high-speed, high-resolution image processing system automatically evaluates the fibers in two planes (X and Y-axis) for cleave end face quality, cleave length irregularity, and fiber offset to screen out the most likely causes in high loss splices. The Type-65 also has programmable power management functions for longer battery operation, a large color monitor, one of the fastest built-in fiber protection sleeve heaters available, and ultra-fast 30 second mass splicing! Features:
Compact, Lightweight Design and Front to Back Work Flow System Simplifies Splicing in Confined Areas (i.e. Aerial, Taught-Sheath) Simultaneous Focusing on Up to 12 Fibers at a Time 5.6" Color LCD Display With On-Screen Guide and Brightness Control Eases Operation in a Field Environment Lower Power Consumption with Built-In Power Management Allows 20+ Splices, Including Heater Operation, on a Charged Battery Automatic Splice and Loss Estimationin 30 Seconds for 12 Count Ribbon Fiber Specifications
Alignment Method Fixed V-Groove Fiber Type SMF/MMF/NZ-DSF Coating Diameter Ribbon: 250µm Single: 250 & 900µm. Number Of Fibers 1 - 12 Typical Splice Loss Identical Fibers SMF: 0.05dB MMF: 0.03dB NZ-DSF: 0.07dB Number Of Fusion Condition Settings 3 Fiber Profiles With 7 Pre-set Programs Each. Maximum Of 48 Programs. Splice Parameters 5 Parameters For Each Program Arc Test Compensation Automatic No. Of Heater Condition Settings 10 Typical Splice Cycle Time 12 Fibers: 30 Seconds(Set To Loss Estimation) Splice Data Storage 250 Splice Data Points Size 150W x 150H x 150D mm(5.9W x 5.9H x 5.9D Inch) Weight 3 kg (6.6 lb) Power Requirement Input: 100 - 240V AC 50/60Hz 12V DC Display Low Glare 5.6 Inch Color LCD Monitor Wind Protection 30 mph (15 m/s) Battery Operation 20+ 12- Fiber Mass Splices Including Protection Sleeve Heater & Thermal Jacket Remover Operation
